Removal Procedure

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the accessory switch panel. Refer to Door Lock and Side Window Switch Replacement - Driver Side (with RPO AXE or AXC) or Door Lock and Side Window Switch Replacement - Driver Side (Outlook only with RPO AXA) .
  3. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Acadia) .
  4. Remove the outer belt sealing strip. Refer to Front Side Door Window Belt Outer Sealing Strip Replacement .
  5. Remove the speaker. Refer to Radio Front Side Door Speaker Replacement .
  6. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  7. Remove the outside rearview mirror. Refer to Power Mirror Replacement .
  8. Remove the window. Refer to Front Side Door Window Replacement .
  9. Remove the weatherstrip run channel. Refer to Front Side Door Window Channel Replacement .
  10. Remove the window regulator. Refer to Front Side Door Window Regulator Replacement .
  11. Remove the door latch assembly. Refer to Front Side Door Latch Replacement .
  12. Remove the side door SIR sensor. Refer to Inflatable Restraint Side Impact Sensor Replacement - Front or Inflatable Restraint Side Impact Sensor Replacement - Rear .
  13. Remove the outside door handle. Refer to Front Side Door Outside Handle Replacement .
  14. Remove the wire harness from the door. Refer to Front Side Door Wiring Harness Replacement .

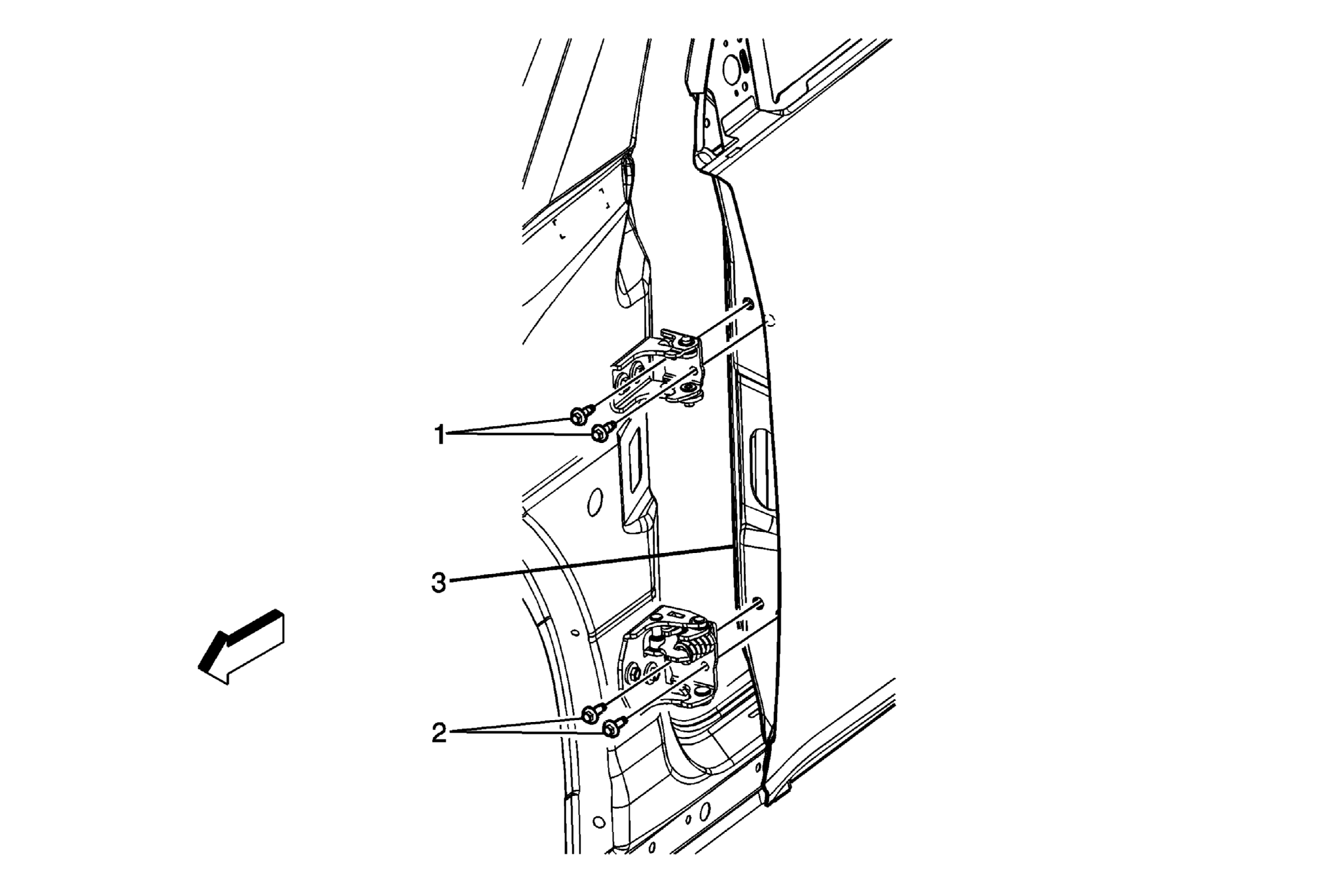

    15. Fig 1: View Of Door Plate Retaining Bolts
    GM1843754Courtesy of GENERAL MOTORS CORP.
  15. Remove the bolts (1, 3) that retain the door to the hinge plates.
  16. With the aid of an assistant, remove the door from the vehicle.
