Front Side Door Outside Handle Replacement

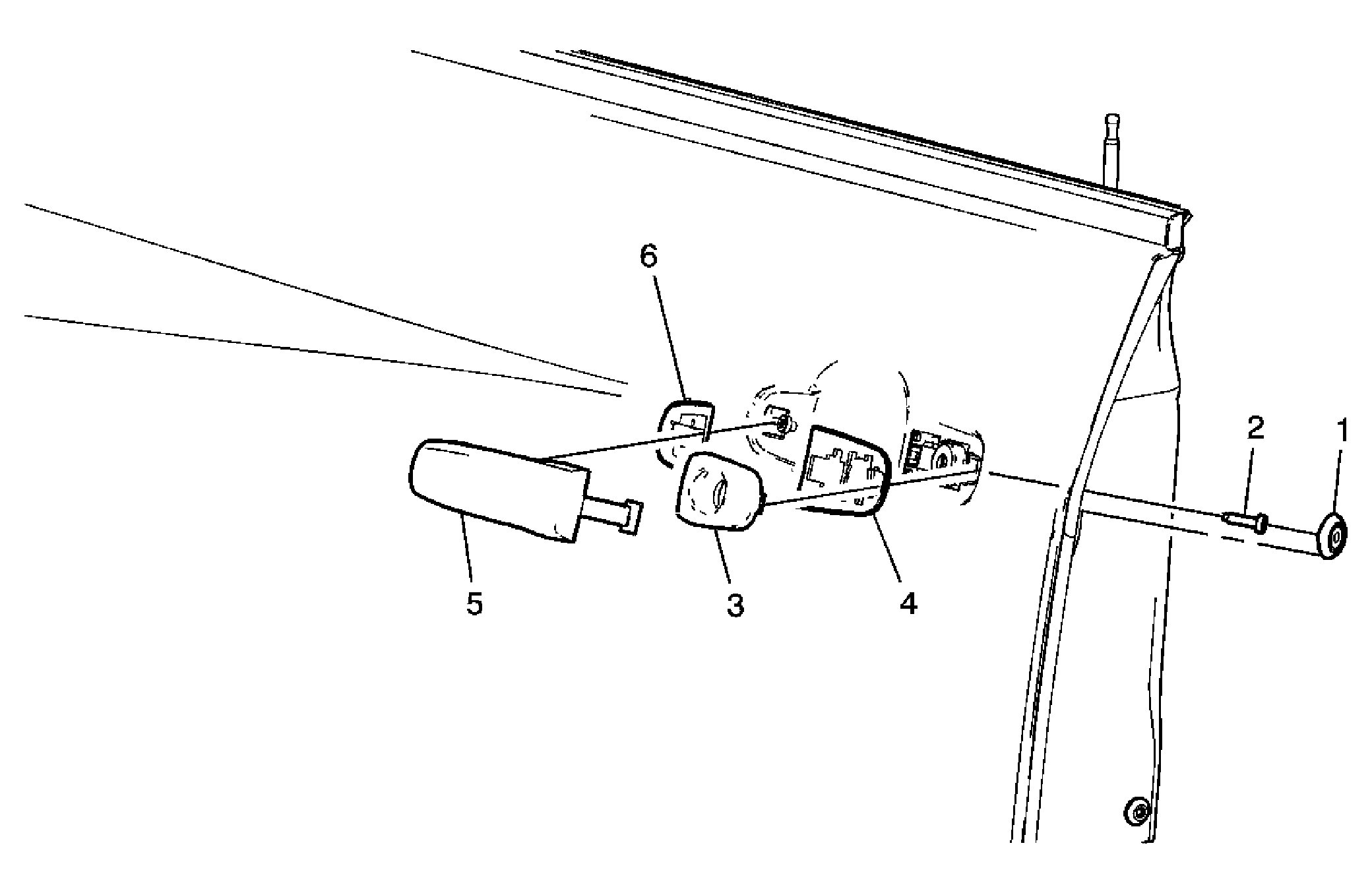

Fig 1: View Of Front Side Door Outside Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt Access Plug Tip:  Use a plastic flat-bladed tool to remove.
2	Front Side Door Outside Handle Bolt NOTE: Refer to Fastener Notice . Tighten:  9 N.m (80 lb in)
3	Front Door Outside Handle Cap
4	Front Door Outside Handle Cap Gasket
5	Front Door Outside Handle Tip:  Pull the outside handle rearward to release it from the inside handle housing.
6	Front Door Outside Handle Gasket
