Front Side Door Latch Replacement

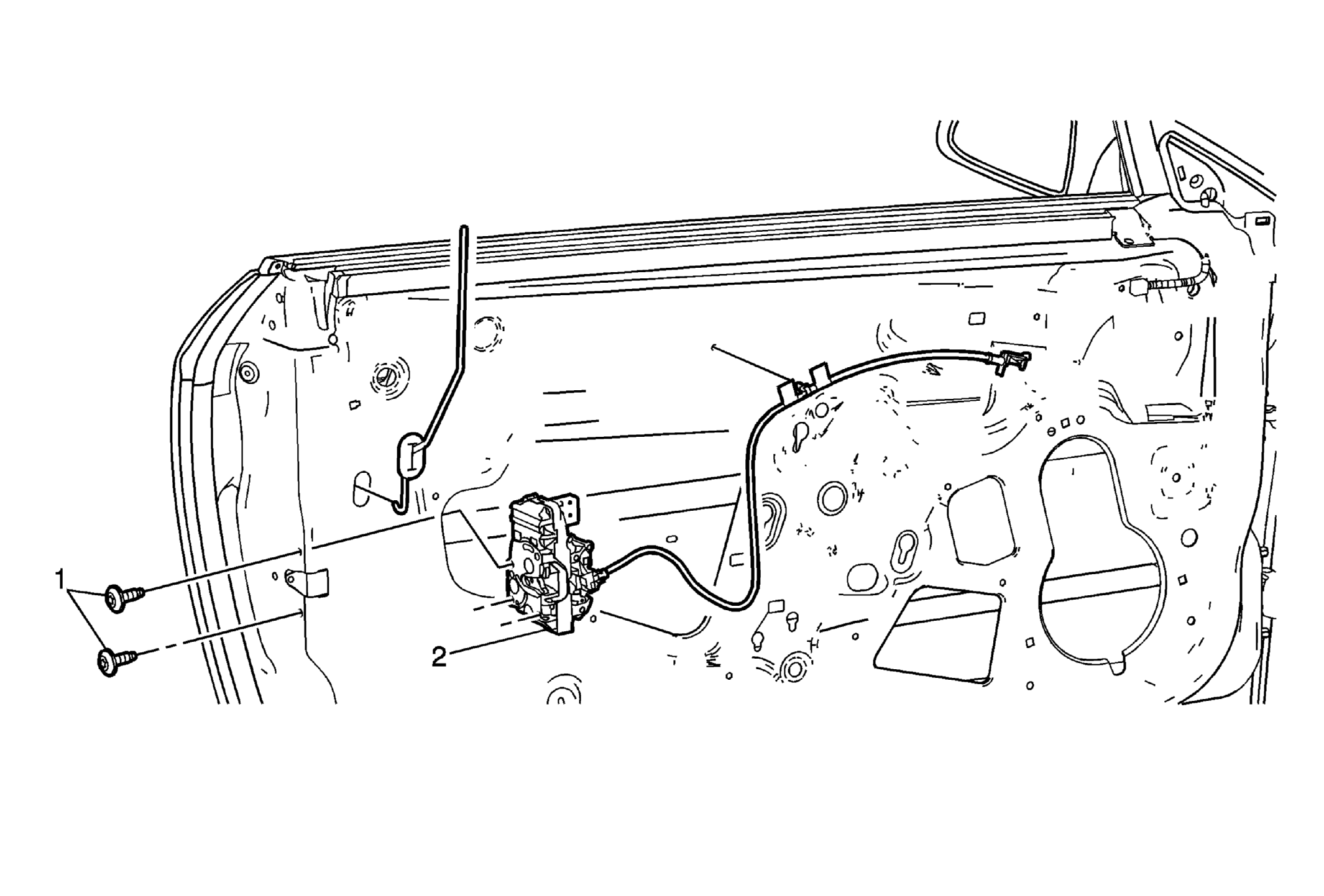

Fig 1: Identifying Front Side Door Latch
GM1843532Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Acadia) .
  2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  3. Remove the door outside handle housing. Refer to Front Side Door Outside Handle Housing Replacement .
1 Front Side Door Latch Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (89 lb in)
2 Front Side Door Latch Assembly

Procedure

  1. Release the door latch cable retainers from the door.
  2. Disconnect the door latch electrical connector.
  3. Transfer the lock rods.
