Door Lock and Side Window Switch Replacement - Driver Side (with RPO AXE or AXC)

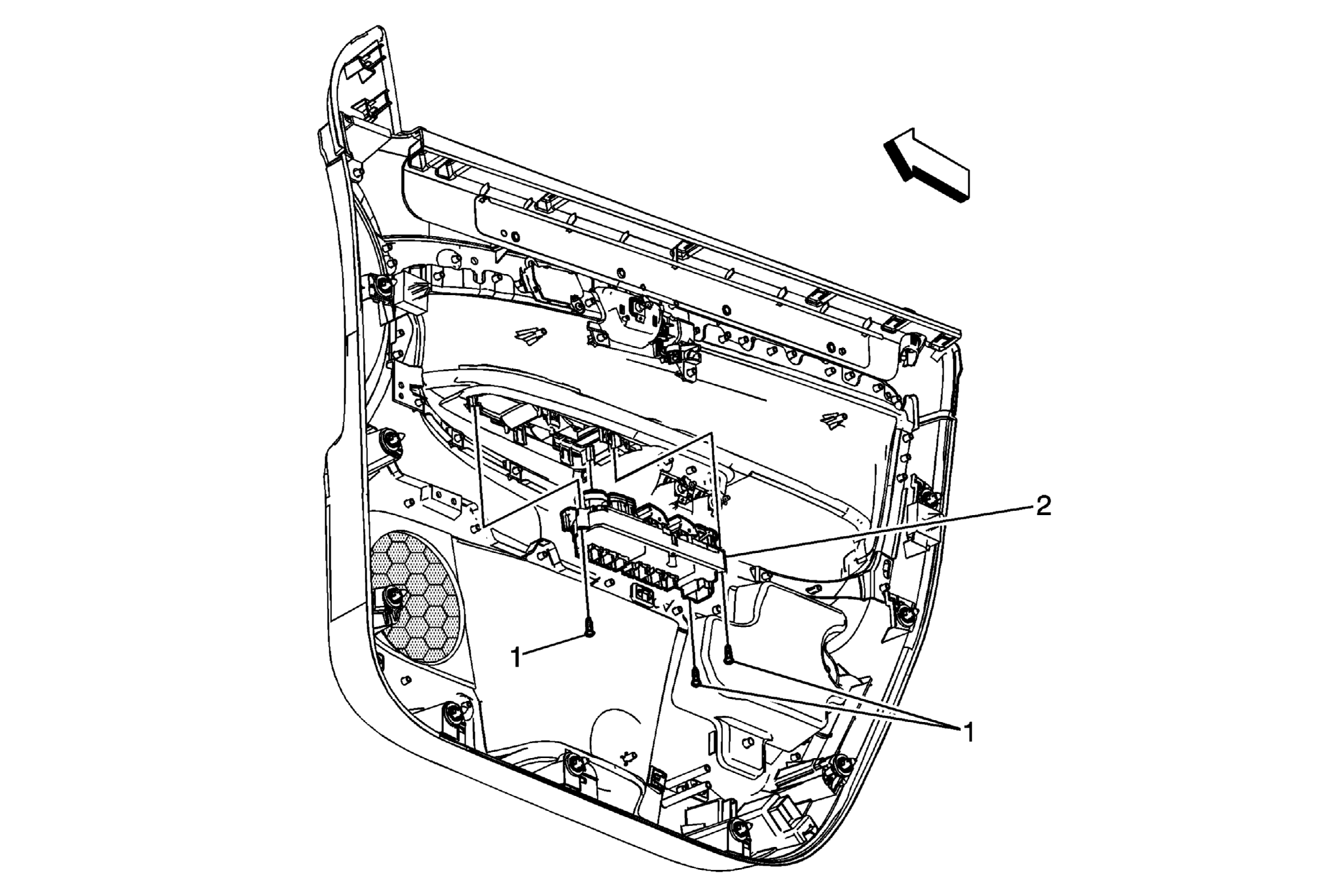

Fig 1: Identifying Door Lock & Side Window Switch - Driver Side (With RPO, AXE Or AXC)
GM1838625Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the driver side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) .
1 Front Side Door Lock and Side Window Switch Screw (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  3 N.m (27 lb in)
2 Front Side Door Lock and Side Window Switch Assembly

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programming and set-up information.
