Fender, Fender Insulator, Wheelhouse Liner Replacement - Front

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

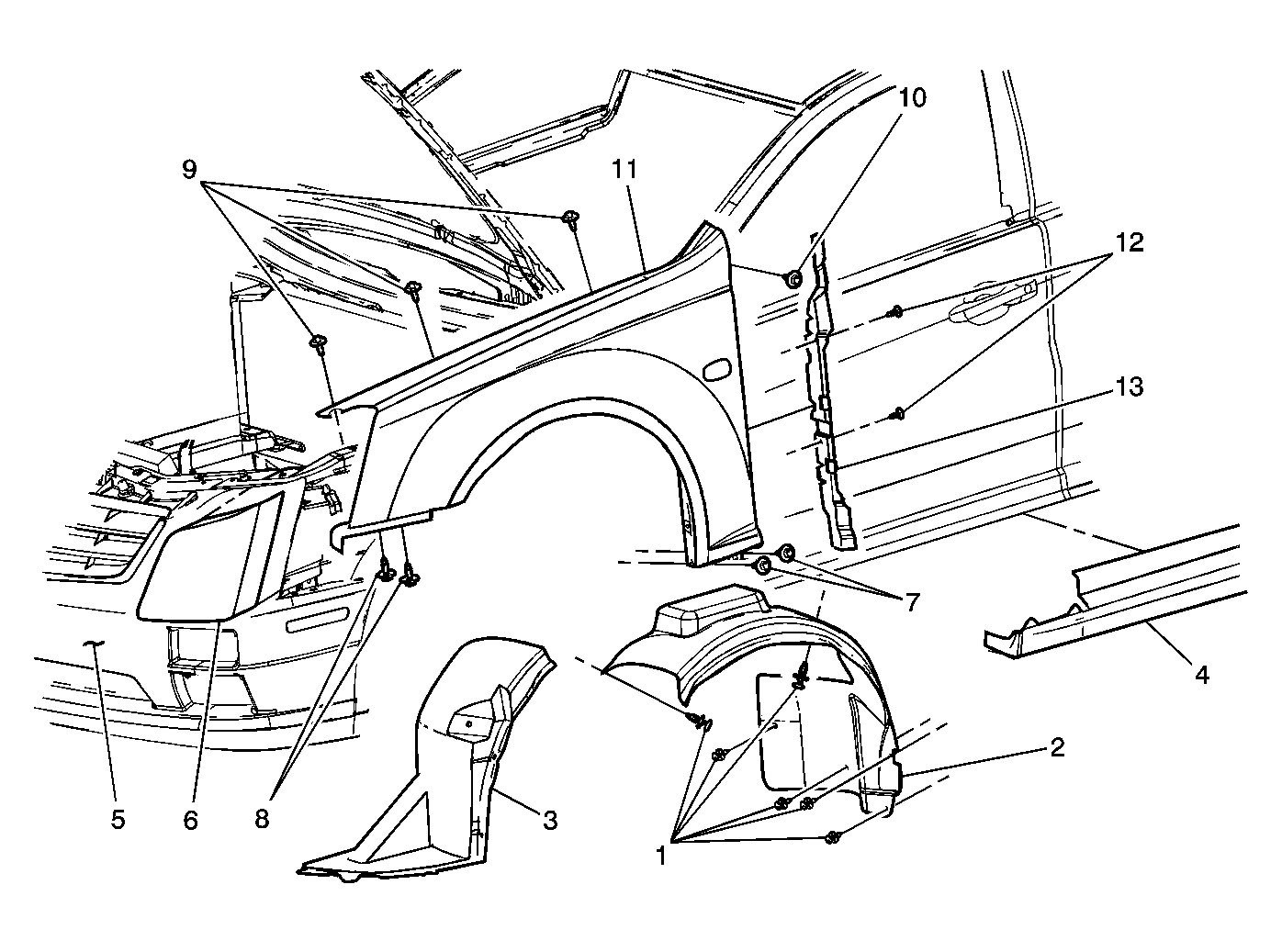

Fig 1: View Of Front Fender, Fender Insulator & Wheelhouse Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Wheelhouse Liner Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
1	Retainer, Front Wheel House Panel (Qty: 6)
2	Liner, Front Wheelhouse
Fender Assembly Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels. Remove the engine splash shield. Refer to Splash Shield Replacement - Engine .
1	Retainer, Front Wheel House Panel (Qty: 6)
2	Liner, Front Wheelhouse
3	Extension, Front Bumper Fascia Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers.
4	Molding Assembly, Rocker Panel Refer to Spoiler - Hood, Rocker, Roof Joint Molding Replacement in Exterior Trim.
5	Fascia Assembly, Front Bumper Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers.
6	Headlamp Assembly Refer to Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front in Lighting Systems.
7	Bolt, Fender (Qty: 2) Tighten: 9 N.m (80 lb in)
8	Bolt, Fender (Qty: 2) Tighten: 9 N.m (80 lb in)
9	Bolt, Fender (Qty: 3) Tighten: 9 N.m (80 lb in)
10	Bolt, Fender (Qty: 1) Tighten: 9 N.m (80 lb in)
11	Fender Assembly
Front Fender Insulator Assembly Replacement
12	Retainer, Front Fender Insulator (Qty: 2)
13	Insulator Assembly, Front Fender
