Headlamp, Fog Lamp, Turn Signal Lamp, Side Marker Lamp Replacement - Front

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

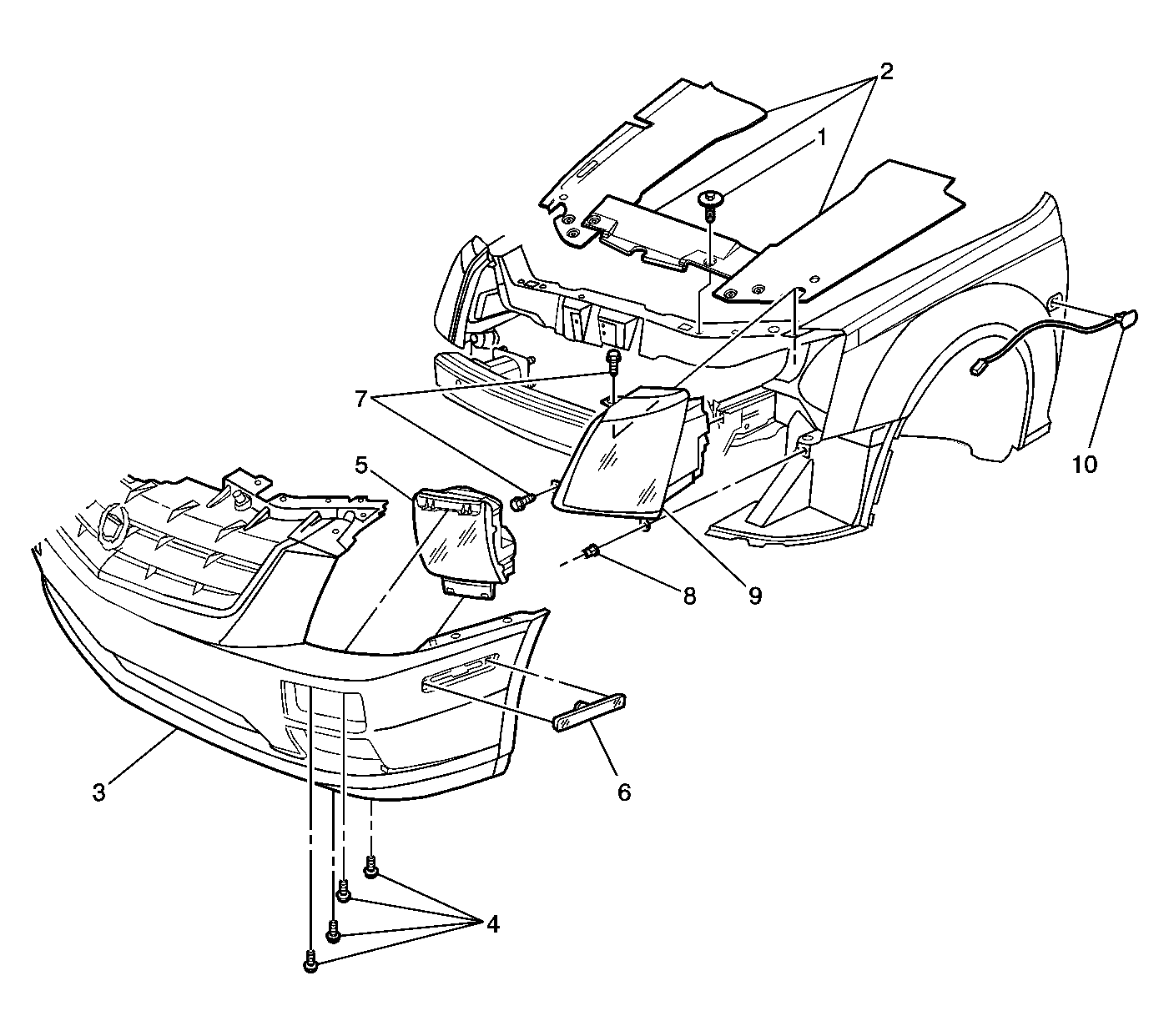

Fig 1: View Of Front Headlamp, Fog Lamp, Turn Signal Lamp & Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Turn Signal Lamp Assembly Replacement
1	Retainer, Front Compartment Sight Shields (Qty: 6)
2	Shield Assembly, Front Compartment Sight
3	Fascia Assembly, Front Bumper Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers.
4	Screw, Front Turn Signal Lamp (Qty: 4) Tighten: 2 N.m (18 lb in)
5	Lamp Assembly, Front Turn Signal CAUTION: Refer to Halogen Bulb Caution in Cautions and Notices. Tip: Turn the bulb access cover on the rear of the lamp assembly to gain access and replace the bulbs.
Front Side Marker Lamp Replacement Preliminary Procedure: Remove the front fascia extension to gain access to the front side marker lamp. Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers.
6	Lamp Assembly, Front Side Marker Tip: Release the tab from the inside of the fascia and push outward to replace the lamp assembly. Twist the bulb socket and pull inward to replace the bulb.
Headlamp Assembly Replacement
1	Retainer, Front Compartment Sight Shields (Qty: 6)
2	Shield Assembly, Front Compartment Sight
3	Fascia Assembly, Front Bumper Refer to Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper in Bumpers.
7	Bolt, Headlamp (Qty: 3) Tighten: 6 N.m (53 lb in)
8	Nut, Headlamp Tighten: 6 N.m (53 lb in)
9	Headlamp Assembly
Front Side Turn Signal Lamp Assembly Replacement (Export) Preliminary Procedure: Remove the front wheelhouse liner to gain access to the front side turn signal lamp assembly. Refer to Fender, Fender Insulator, Wheelhouse Liner Replacement - Front in Body Front End.
10	Lamp Assembly, Front Side Turn Signal Tip: Disconnect front side turn signal electrical harness. Release the tab from the inside of the front fender and push outward to replace the lamp assembly.
