Fascia, Extension, Reinforcement, Impact Bar Replacement - Front Bumper

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

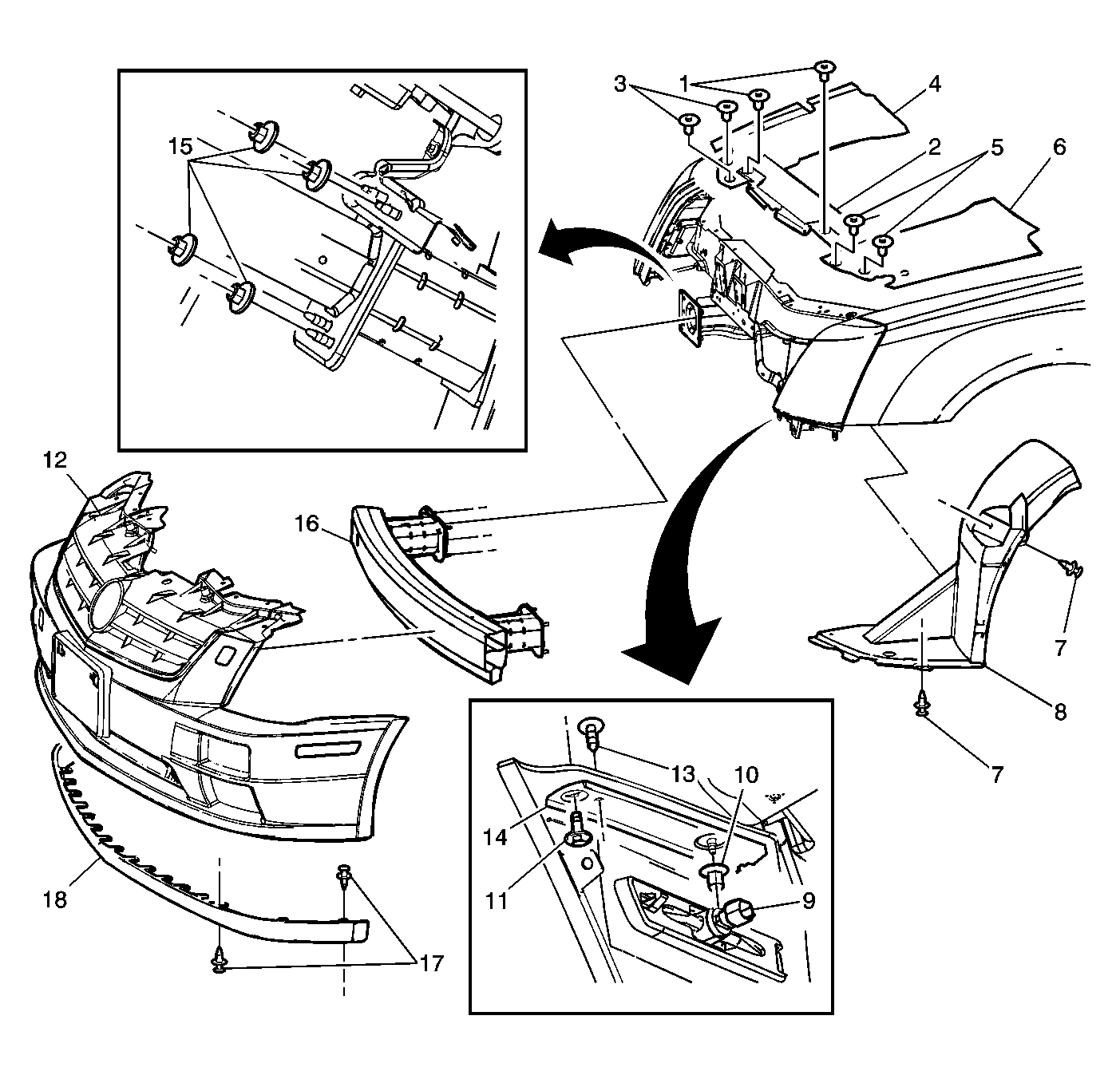

Fig 1: View Of Front Bumper Fascia, Extension, Reinforcement & Impact Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Bumper Fascia Extension Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
1	Retainer, Front Compartment Sight Shield (Qty: 2)
2	Shield Assembly, Front Compartment Front Sight
3	Retainer, Front Compartment Sight Shield (Qty: 2)
4	Shield Assembly, Right Front Compartment Sight
5	Retainer, Front Compartment Sight Shield (Qty: 2)
6	Shield Assembly, Left Front Compartment Sight
7	Retainer, Front Bumper Fascia Extension (Qty: 22)
8	Extension, Front Bumper Fascia (Qty: 2)
Front Bumper Fascia Assembly Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
1	Retainer, Front Compartment Sight Shield (Qty: 2)
2	Shield Assembly, Front Compartment Sight
3	Retainer, Front Compartment Sight Shield (Qty: 2)
4	Shield Assembly, Right Front Compartment Sight
5	Retainer, Front Compartment Sight Shield (Qty: 2)
6	Shield Assembly, Left Front Compartment Sight
7	Retainer, Front Bumper Fascia Extension (Qty: 22)
8	Extension, Front Bumper Fascia (Qty: 2)
9	Connector, Front Side Marker Light Tip: Disconnect the front side marker and fog light connectors.
10	Nut, Front Bumper Fascia Reinforcement (Qty: 2) Tighten: 9 N.m (80 lb in)
11	Screw, Front Bumper Fascia Reinforcement (Qty: 2) Tighten: 9 N.m (80 lb in)
12	Fascia Assembly, Front Bumper Tip: Remove the fascia to tie bar push in retainers (Qty: 4) Disconnect the headlamp washer hose assembly, if equipped.
Front Bumper Fascia Reinforcement Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
1	Retainer, Radiator Support Sight Shield (Qty: 6)
2	Shield Assembly, Radiator Support Sight
3	Retainer, Front Compartment Sight Shield (Qty: 2)
4	Shield Assembly, Right Front Compartment Sight
5	Retainer, Front Compartment Sight Shield (Qty: 2)
6	Shield Assembly, Left Front Compartment Sight
7	Retainer, Front Bumper Fascia Extension (Qty: 22)
8	Extension, Front Bumper Fascia (Qty: 2)
9	Connector, Front Side Marker Light Tip: Remove and replace the front side marker and fog light connectors.
10	Nut, Front Bumper Fascia Reinforcement (Qty: 2) Tighten: 9 N.m (80 lb in)
11	Screw, Front Bumper Fascia Reinforcement (Qty: 2) Tighten: 9 N.m (80 lb in)
12	Fascia Assembly, Front Bumper Tip: Remove the fascia to tie bar push in retainers (Qty: 4) Disconnect the headlamp washer hose assembly, if equipped.
13	Retainer, Front Bumper Fascia Reinforcement (Qty: 2) Tip: Cut the retainer with diagonal cutters to remove, and install using a new retainer.
14	Reinforcement, Front Bumper Fascia (Qty: 2)
Front Bumper Impact Bar Assembly Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
1	Retainer, Radiator Support Sight Shield (Qty: 6)
2	Shield Assembly, Radiator Support Sight
3	Retainer, Front Compartment Sight Shield (Qty: 2)
4	Shield Assembly, Right Front Compartment Sight
5	Retainer, Front Compartment Sight Shield (Qty: 2)
6	Shield Assembly, Left Front Compartment Sight
7	Retainer, Front Bumper Fascia Extension (Qty: 22)
8	Extension, Front Bumper Fascia (Qty: 2)
9	Connector, Front Side Marker Light Tip: Remove and replace the front side marker and fog light connectors.
10	Nut, Front Bumper Fascia Reinforcement (Qty: 2) Tighten: 9 N.m (80 lb in)
11	Screw, Front Bumper Fascia Reinforcement (Qty: 2) Tighten: 9 N.m (80 lb in)
12	Fascia Assembly, Front Bumper Tip: Remove the fascia to tie bar push in retainers (Qty: 4) Disconnect the headlamp washer hose assembly, if equipped.
15	Nut, Front Bumper Impact Bar (Qty: 8) Tighten: 25 N.m (18 lb ft)
16	Bar Assembly, Front Bumper Impact
Front Bumper Fascia Lower Deflector Replacement
17	Retainer, Front Bumper Fascia Lower Deflector (Qty: 6)
18	Deflector, Front Bumper Fascia Lower
