Axle Assembly: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the front differential fluid. Refer to: Differential Draining and Filling .
- Drain the transfer case fluid. Refer to: Transfer Case Draining and Filling .
- Remove the front halfshafts. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .
- Remove the dual catalytic converter Y-pipe. Refer to: Dual Catalytic Converter Y-Pipe - AWD . Refer to: Dual Catalytic Converter Y-Pipe - AWD .
- Remove the front driveshaft. Refer to: Front Driveshaft - LHD AWD .

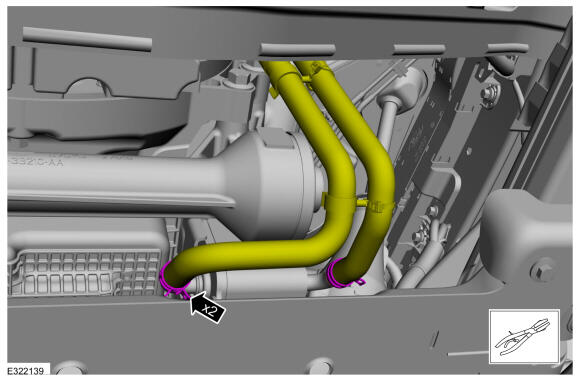

- Using general equipment, release the clamps and position the transmission cooler coolant hoses aside.Use the General Equipment: Hose Clamp Remover/Installer

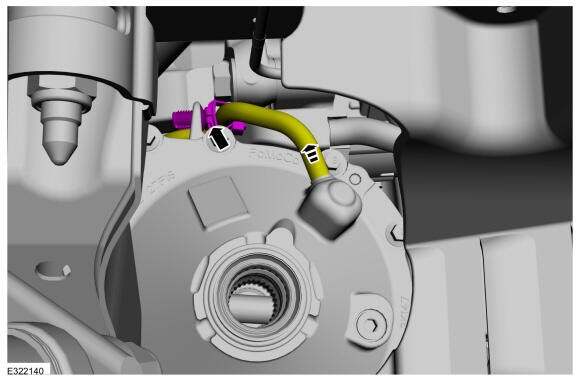

- Detach the retainer. Disconnect and position the front axle breather hose aside.

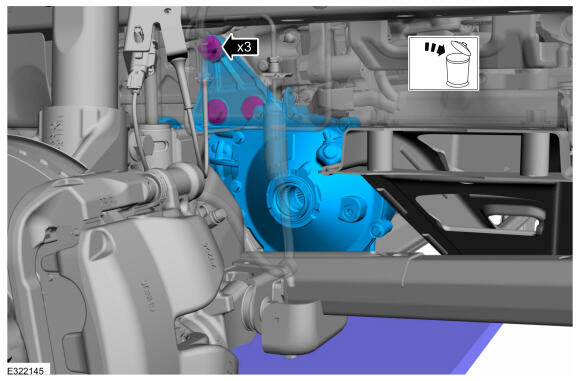

- Remove and discard the front axle tube bolts.
-
- Remove and discard push type pins.

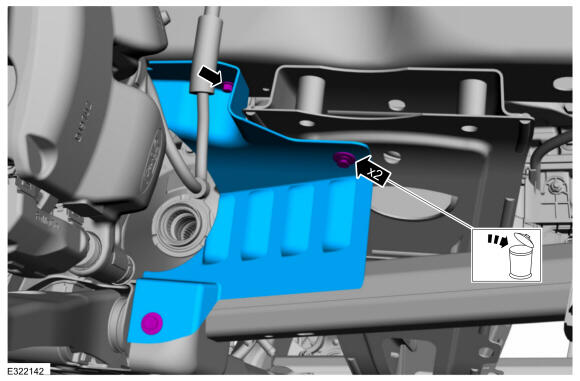

- Remove the bolt and the splash shield.

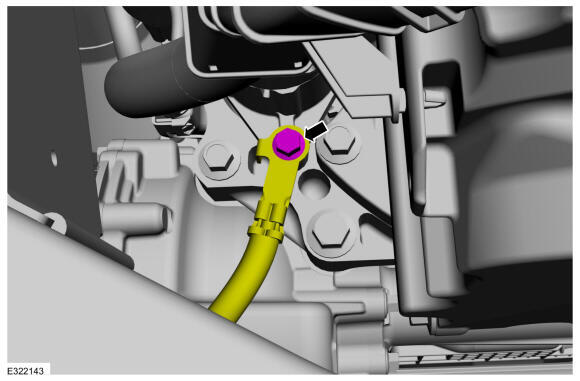

- Remove the bolt and position the wiring harness aside.
-
NOTE: The transmission jack is not shown for clarity.
- With the transmission jack in place to secure the front axle assembly. Remove and discard the front axle to transmission bolt.Use the General Equipment: Transmission Jack

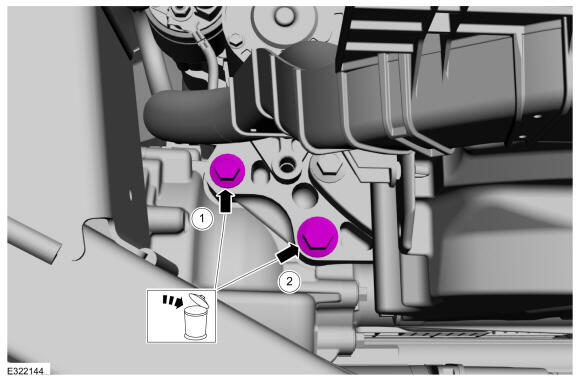

- Remove and discard the front axle to transmission bolt.

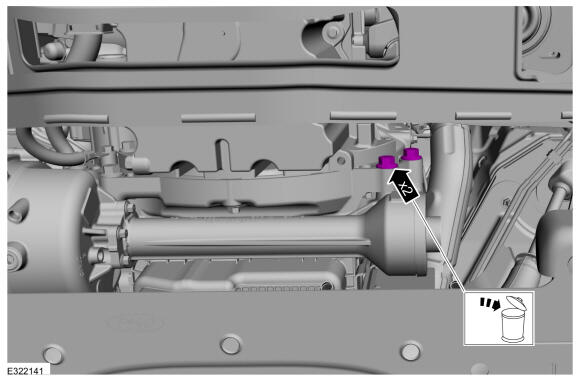

- Remove and discard the front axle to torque arm bolts. Lower the transmission jack along with front axle assembly.Use the General Equipment: Transmission Jack
