Differential Draining and Filling
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Gear/Transmission Fluid - SAE 75W-140 | WSL-M2C192-A |
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING

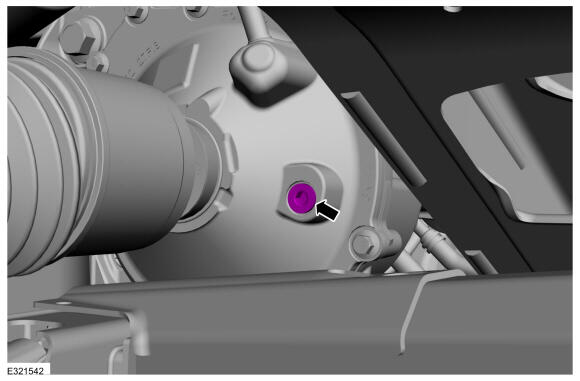

- Remove the front differential fill plug.
-
NOTE: Be prepared to collect escaping fluid.

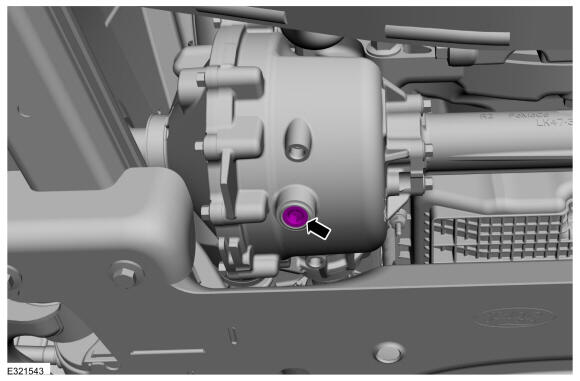

Remove the front differential drain plug.
Filling
- Install the front differential drain plug.
Torque: 40 Nm

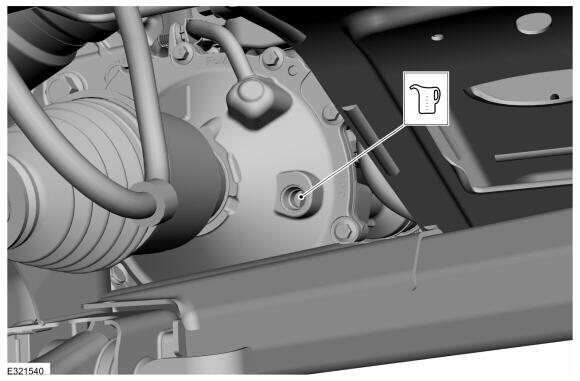

- Fill the front differential with clean gear lubricant. Refer to: Specifications .
Material: Gear/Transmission Fluid - SAE 75W-140 (WSL-M2C192-A)
- Install the front differential fill plug.
Torque: 40 Nm
