Axle Assembly: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

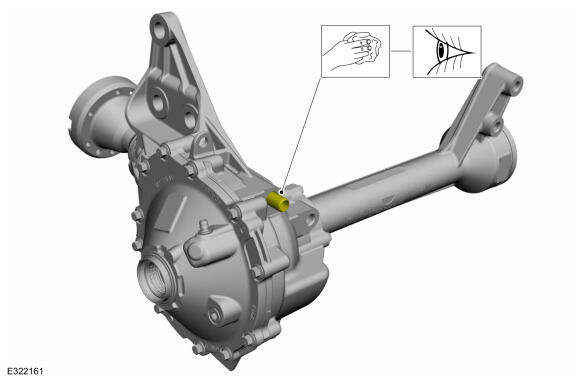

  1. NOTE: Make sure that the locating dowels remain installed.

    • Clean and inspect the dowel.

    • If the dowel pin is pulled out of the axle housing during removal, install new dowel pin in the axle housing.

    GFD836892Courtesy of FORD MOTOR COMPANY

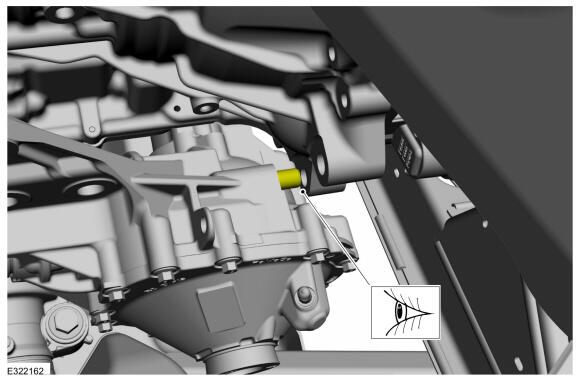

  2. NOTE: Make sure that the component is correctly located on the locating dowel.

    Position the front axle assembly onto the transmission bell housing by aligning the holes with the dowel pin.

    GFD836893Courtesy of FORD MOTOR COMPANY

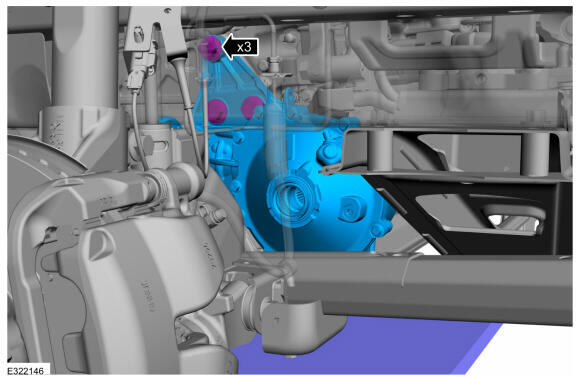

  3. NOTE: Make sure that the new bolts are installed.

    Install the front axle to torque arm bolts.Use the General Equipment: Transmission Jack

    Torque: 400 Nm

    GFD836894Courtesy of FORD MOTOR COMPANY

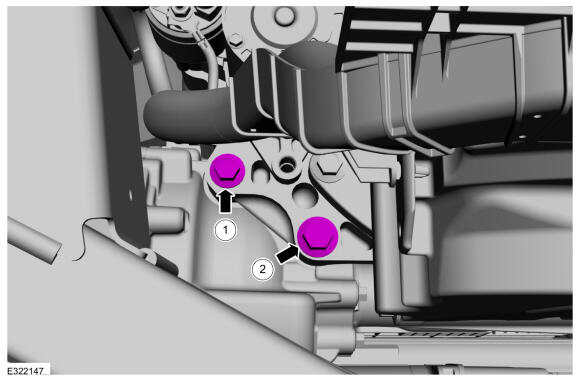

  4. NOTE: Make sure that the new bolts are installed.

    1. Install the new front axle to transmission bolt.

      Torque: 140 Nm

    2. Install the new front axle to transmission bolt.

      Torque: 150 Nm

    GFD836895Courtesy of FORD MOTOR COMPANY
  5. Install the wiring harness and the bolt.

    Torque: 35 Nm

    GFD836889Courtesy of FORD MOTOR COMPANY

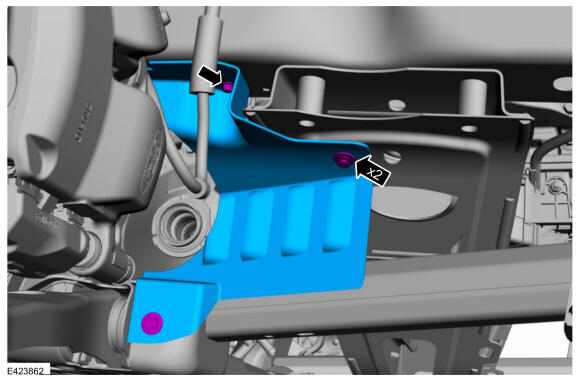

    • Install the splash shield and bolt.

      Torque: 12 Nm

    • Install the new push type pins.

    GFD836896Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that the new bolts are installed.

    Install the new front axle tube bolts.

    Torque: 165 Nm

    GFD836897Courtesy of FORD MOTOR COMPANY

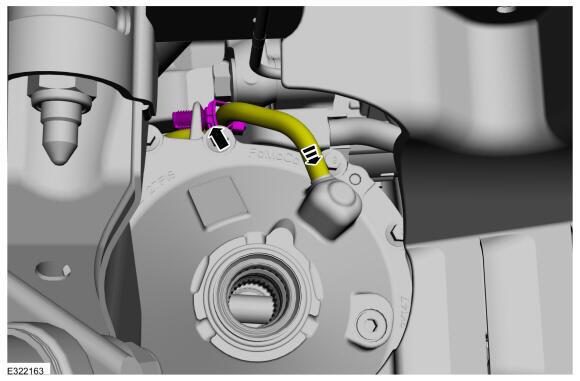

  8. Connect the front axle breather hose and the attach the retainer.
    GFD836898Courtesy of FORD MOTOR COMPANY
  9. Connect the transmission cooler coolant hoses and attach the clamps.Use the General Equipment: Hose Clamp Remover/Installer
    GFD836885Courtesy of FORD MOTOR COMPANY
  10. Install the front halfshafts. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .
  11. Install the front driveshaft. Refer to: Front Driveshaft - LHD AWD .
  12. Install the dual catalytic converter Y-pipe. Refer to: Dual Catalytic Converter Y-Pipe - AWD . Refer to: Dual Catalytic Converter Y-Pipe - AWD .
  13. Fill the transfer case fluid. Refer to: Transfer Case Draining and Filling .
  14. Fill the front differential with clean fluid. Refer to: Differential Draining and Filling .
