Pinpoint Test A - DTC: B0001:11, B0001:12, B0001:13 and B0001:1A

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Refer to Supplemental Restrain System for schematic and connector information.

Normal Operation and Fault Conditions

The RCM continuously monitors the driver airbag circuits for the following faults:

If a fault is detected, the RCM stores DTC B0001:11, B0001:12, B0001:13 or B0001:1A in memory and sends a message to the IPC to illuminate the airbag warning indicator.

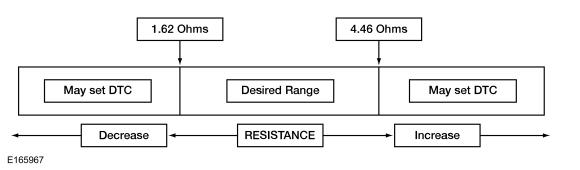

The RCM analyzes the deployment loop resistance to determine if a fault exists. The value displayed in the PID is the deployment loop resistance measured by the RCM. If the value displayed is lower or higher than the desired range (refer to diagram below), the RCM can set a DTC. As the deployment loop resistance drifts farther outside the desired range, the chance for a DTC increases. Small variations in resistance can occur due to the effect of road vibrations on terminal fit. Crimps and terminals can be affected by stress and harness movement and can cause an increase in resistance due to wire strain. These variables can result in an intermittent fault. For this reason, the test requires the PID value to be within the desired range before the fault is considered repaired, regardless if the module is reporting an on-demand DTC at the time of diagnosis. Following this direction helps make sure that minor changes in resistance do not create a repeat concern. This test uses process of elimination to diagnose each part of the deployment loop circuit including:

GFD207117Courtesy of FORD MOTOR COMPANY

DTC Fault Trigger Conditions

DTC Description Fault Trigger Conditions
B0001:11 Driver Frontal Stage 1 Deployment Control: Circuit Short to Ground A fault is indicated when the RCM senses a short to ground on either driver airbag circuit for approximately 6 seconds.
B0001:12 Driver Frontal Stage 1 Deployment Control: Circuit Short to Battery A fault is indicated when the RCM senses a short to voltage on either driver airbag circuit for approximately 6 seconds.
B0001:13 Driver Frontal Stage 1 Deployment Control: Circuit Open A fault is indicated when the RCM measures more than the desired resistance range between driver airbag circuits for approximately 6 seconds.
B0001:1A Driver Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold A fault is indicated when the RCM measures less than the desired resistance range between driver airbag circuits for approximately 6 seconds.

Possible Causes

Visual Inspection and Diagnostic Pre-checks

PINPOINT TEST A : B0001:11, B0001:12, B0001:13 AND B0001:1A

  1. WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System (SRS) deployment. Never compromise or depart from these instructions. Failure to precisely follow all instructions could result in serious personal injury from an accidental deployment.
  2. NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may cause damage to the connector.
  3. NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.
  4. NOTE: Only disconnect or reconnect SRS components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
  5. NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford parts catalog to make sure the correct component is being installed. If an incorrect SRS component is installed, Diagnostic Trouble Codes (DTCs) may set.
  6. NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

  7. A1 RETRIEVE RCM (RESTRAINTS CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    Was DTC B0001:11, B0001:12, B0001:13 or B0001:1A retrieved on-demand during self-test?

    Yes  This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test. If DTC U3003:16 or U3003:17 is also retrieved on-demand, REFER to: Pinpoint Test - DTC: AG . If DTC U3003:16 or U3003:17 is not retrieved on-demand during self-test, DIAGNOSE the driver airbag Diagnostic Trouble Codes (DTCs). For DTC B0001:13 or B0001:1A, GO to  A2. For DTC B0001:11, GO to  A12. For DTC B0001:12, GO to  A15
    No  This is an intermittent fault when present as a CMDTC only. If DTC U3003:16 or U3003:17 is also retrieved on-demand, REFER to: Pinpoint Test - DTC: AG . If DTC U3003:16 or U3003:17 is not retrieved on-demand during self-test, DIAGNOSE the driver airbag Continuous Memory Diagnostic Trouble Codes (CMDTCs). For DTC B0001:13 or B0001:1A, GO to  A20. For DTC B0001:11, GO to  A21. For DTC B0001:12, GO to  A22

  8. A2 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID (PARAMETER IDENTIFICATION)

    • Using a diagnostic scan tool, view RCM Parameter Identifications (PIDs).

    • Monitor and record the resistance value displayed by the DEPLOY_00_R PID.

    Does the PID value read between 1.62 and 4.46 ohms?

    Yes  GO to  A19
    No  GO to  A3

  9. A3 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID (PARAMETER IDENTIFICATION) WHILE CARRYING OUT THE HARNESS TEST

    • While monitoring the DEPLOY_00_R PID, carry out the harness test of the driver airbag circuits and accessible connectors (including any inline connectors) by wiggling and flexing the wire harness, connectors, tilting and rotating the steering wheel frequently. Record the resistance value indicated by the PID.

    Does the PID value read between 1.62 and 4.46 ohms while carrying out the harness test?

    Yes  DEPOWER the SRS. Refer to: Supplemental Restraint System (SRS) Depowering . REPAIR the connector, terminals or wire harness or INSTALL a new clockspring as needed. REFER to: Clockspring . Refer to: Clockspring - Vehicles With: Adaptive Steering . Refer to Connector Repair Procedures for schematic and connector information. Go to  A24
    No  For PID value less than 1.62 ohms, GO to  A4. For PID value greater than 4.46 ohms, GO to  A8

  10. A4 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (LOW RESISTANCE INDICATED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag disconnected, an open circuit fault is normally retrieved.

    Did the on-demand DTC change from B0001:1A to B0001:13?

    Yes  GO to  A17
    No  GO to  A5

  11. A5 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (LOW RESISTANCE INDICATED) (CLOCKSPRING DISCONNECTED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Disconnect: Clockspring C218A .

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the clockspring disconnected, an open circuit fault is normally retrieved.

    Did the on-demand DTC change from B0001:1A to B0001:13?

    Yes  GO to  A18
    No  GO to  A6

  12. A6 CHECK FOR A SHORT BETWEEN DRIVER AIRBAG CIRCUITS

    • Ignition OFF.

    • Vehicles with adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A-11
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C218A-12

    • Vehicles without adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A-5
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C218A-11

    Is the resistance greater than 10, 000 ohms?

    Yes  GO to  A19
    No  GO to  A7

  13. A7 CHECK THE RCM (RESTRAINTS CONTROL MODULE) FOR LOW RESISTANCE

    • Measure:
      Positive Lead Measurement / Action Negative Lead

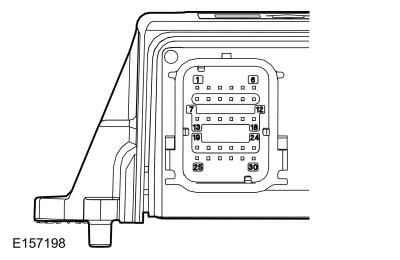

      GFD207118Courtesy of FORD MOTOR COMPANY

      C310A, pin 29, component side
      GFD200490Courtesy of FORD MOTOR COMPANY
      GFD207118Courtesy of FORD MOTOR COMPANY

      C310A, pin 30, component side

    Is the resistance greater than 10, 000 ohms?

    Yes  REPAIR the driver airbag circuits for a short together. Refer to Connector Repair Procedures for schematic and connector information. Go to  A24
    No  GO to  A19

  14. A8 CHECK THE DRIVER AIRBAG CIRCUITS FOR AN OPEN

    • Ignition OFF.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C310A-29
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C216A-1
      C310A-30
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C216A-2

    Are the resistances less than 1 ohm?

    Yes  GO to  A10
    No  GO to  A9

  15. A9 CHECK THE DRIVER AIRBAG CIRCUITS FOR AN OPEN (CLOCKSPRING DISCONNECTED)

    • Disconnect: Clockspring C218A .

    • Vehicles with adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C310A-29
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C218A-11
      C310A-30
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C218A-12

    • Vehicles without adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C310A-29
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C218A-5
      C310A-30
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 C218A-11

    Are the resistances less than 0.5 ohm?

    Yes  GO to  A18
    No  REPAIR the circuit(s). Refer to Connector Repair Procedures for schematic and connector information. Go to  A24

  16. A10 CHECK THE DRIVER AIRBAG STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (OPEN INDICATED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Connect a fused jumper wire:
      Lead 1 Measurement / Action Lead 2
      C216A-1
      GFD205782Courtesy of FORD MOTOR COMPANY
      		 C216A-2

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag circuits shorted together, a low resistance fault is normally retrieved.

    Was DTC B0001:1A retrieved on-demand during self-test?

    Yes  REMOVE the fused jumper wire and GO to  A17
    No  REMOVE the fused jumper wire and GO to  A11

  17. A11 CHECK THE DRIVER AIRBAG STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (OPEN INDICATED)

    • Ignition OFF.

    • Disconnect: Clockspring C218A

    • Connect a fused jumper wire:
      Lead 1 Measurement / Action Lead 2
      C218A-1
      GFD205782Courtesy of FORD MOTOR COMPANY
      		 C218A-2

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag stage 1 circuits shorted together, a low resistance fault is normally retrieved.

    Was DTC B0001:1A retrieved on-demand during self-test?

    Yes  REMOVE the fused jumper wire and GO to  A18
    No  REMOVE the fused jumper wire and GO to  A19

  18. A12 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag disconnected, an open circuit fault is normally retrieved.

    Did the on-demand DTC change from B0001:11 to B0001:13?

    Yes  GO to  A17
    No  GO to  A13

  19. A13 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED) (CLOCKSPRING DISCONNECTED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Disconnect: Clockspring C218A .

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the clockspring disconnected, an open circuit fault is normally retrieved.

    Did the on-demand DTC change from B0001:11 to B0001:13?

    Yes  GO to  A18
    No  GO to  A14

  20. A14 CHECK THE DRIVER AIRBAG CIRCUITS FOR A SHORT TO GROUND

    • Ignition OFF.

    • Vehicles with adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A-11
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 Ground
      C218A-12
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 Ground

    • Vehicles without adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A-5
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 Ground
      C218A-11
      GFD200490Courtesy of FORD MOTOR COMPANY
      		 Ground

    Are the resistances greater than 10, 000 ohms?

    Yes  GO to  A19
    No  Due to the shorting bar feature in the RCM electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bar. REPAIR the circuit(s). Refer to Connector Repair Procedures for schematic and connector information. Go to  A24

  21. A15 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (SHORT TO BATTERY INDICATED) (CLOCKSPRING DISCONNECTED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Disconnect: Clockspring C218A .

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    • DIAGNOSTIC TIP:  When viewing Diagnostic Trouble Codes (DTCs) with the clockspring disconnected, an open circuit fault is normally retrieved.

    Did the on-demand DTC change from B0001:12 to B0001:13?

    Yes  GO to  A18
    No  GO to  A16

  22. A16 CHECK THE DRIVER AIRBAG CIRCUITS FOR A SHORT TO VOLTAGE

    • Ignition OFF.

    • Ignition ON.

    • Vehicles with adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A-11
      GFD200491Courtesy of FORD MOTOR COMPANY
      		 Ground
      C218A-12
      GFD200491Courtesy of FORD MOTOR COMPANY
      		 Ground

    • Vehicles without adaptive steering:  Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A-5
      GFD200491Courtesy of FORD MOTOR COMPANY
      		 Ground
      C218A-11
      GFD200491Courtesy of FORD MOTOR COMPANY
      		 Ground

    Is any voltage present?

    Yes  Due to the shorting bar feature in the RCM electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bar. REPAIR the circuit(s). Refer to Connector Repair Procedures for schematic and connector information. Go to  A24
    No  GO to  A19

  23. A17 CONFIRM THE DRIVER AIRBAG FAULT

    NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, Diagnostic Trouble Codes (DTCs) are recorded.

    • Ignition OFF.

    • Prior to reconnecting any previously disconnected SRS component:

      • Inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • Inspect wire harness for any damaged, pinched, cut or pierced wires.
      • Inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • Inspect Driver Airbag C216A and make sure the Connector Position Assurance (CPA) tabs are not broken and the clip is not damaged.
      • Repair any concerns found. Refer to Connector Repair Procedures for schematic and connector information.

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    Was the original DTC retrieved on-demand during self-test?

    Yes  INSTALL a new driver airbag. Refer to: Driver Airbag - Vehicles With: Adaptive Steering . Refer to: Driver Airbag . Go to  A24
    No  In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. For DTC B0001:13 or B0001:1A, GO to  A20. For DTC B0001:11, GO to  A21

  24. A18 CONFIRM THE CLOCKSPRING FAULT

    NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, Diagnostic Trouble Codes (DTCs) are recorded.

    • Ignition OFF.

    • Prior to reconnecting any previously disconnected SRS component:

      • Inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • Inspect wire harness for any damaged, pinched, cut or pierced wires.
      • Inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • Repair any concerns found. Refer to Connector Repair Procedures for schematic and connector information.

    • Connect: Clockspring C218A .

    • Connect: RCM C310A and C310B (if previously disconnected).

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    Was the original DTC retrieved on-demand during self-test?

    Yes  INSTALL a new clockspring. Refer to: Clockspring - Vehicles With: Adaptive Steering . Refer to: Clockspring . Go to  A24
    No  In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. For DTC B0001:13 or B0001:1A, GO to  A20. For DTC B0001:11, GO to  A21. For DTC B0001:12, GO to  A22

  25. A19 CONFIRM THE RCM (RESTRAINTS CONTROL MODULE) FAULT

    NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, Diagnostic Trouble Codes (DTCs) are recorded.

    • Ignition OFF.

    • Prior to reconnecting any previously disconnected SRS component:

      • Inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • Inspect wire harness for any damaged, pinched, cut or pierced wires.
      • Inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • Repair any concerns found. Refer to Connector Repair Procedures for schematic and connector information.

    • Connect: Clockspring C218A (if previously disconnected).

    • Connect: RCM C310A and C310B (if previously disconnected).

    • Ignition ON.

    • Using a diagnostic scan tool, carry out RCM self-test.

    Was the original DTC retrieved on-demand during self-test?

    Yes  CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new RCM. Refer to: Restraints Control Module (RCM) . Go to  A24
    No  In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. For DTC B0001:13 or B0001:1A, GO to  A20. For DTC B0001:11, GO to  A21. For DTC B0001:12, GO to  A22

  26. A20 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID (PARAMETER IDENTIFICATION) FOR AN INTERMITTENT LOW RESISTANCE OR OPEN CIRCUIT FAULT

    • Using a diagnostic scan tool, view RCM Parameter Identifications (PIDs).

    • While monitoring the DEPLOY_00_R PID, attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently. Record the resistance value indicated by the PID.

    Does the PID value read between 1.62 and 4.46 ohms?

    Yes  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to  A23
    No  If the driver airbag PID indicates incorrect resistance only when the steering wheel is rotated, INSTALL a new clockspring. Refer to: Clockspring - Vehicles With: Adaptive Steering . Refer to: Clockspring . For all other faults, DEPOWER the SRS and REPAIR as necessary. Refer to Connector Repair Procedures for schematic and connector information. Go to  A24

  27. A21 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL CIRCUITS FOR AN INTERMITTENT SHORT TO GROUND FAULT

    • Ignition OFF.

    • Ignition ON.

    • Attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.

    • Using a diagnostic scan tool, carry out RCM self-test.

    Was DTC B0001:11 retrieved on-demand during self-test?

    Yes  DEPOWER the SRS and REPAIR as necessary. Refer to Connector Repair Procedures for schematic and connector information. Go to  A24
    No  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to  A23

  28. A22 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL CIRCUITS FOR AN INTERMITTENT SHORT TO VOLTAGE FAULT

    • Ignition OFF.

    • Ignition ON.

    • Attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.

    • Using a diagnostic scan tool, carry out RCM self-test.

    Was DTC B0001:12 retrieved on-demand during self-test?

    Yes  DEPOWER the SRS and REPAIR as necessary. Refer to Connector Repair Procedures for schematic and connector information. Go to  A24
    No  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to  A23

  29. A23 CHECK THE HARNESS AND CONNECTORS

    • Ignition OFF.

    • Remove the driver airbag. Refer to: Driver Airbag - Vehicles With: Adaptive Steering . Refer to: Driver Airbag .

      • Inspect connector(s) (including any inline connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
      • Inspect wire harness for any damage, pinched, cut or pierced wires.
      • Inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • Inspect Driver Airbag C216A and make sure the Connector Position Assurance (CPA) tab is correctly seated and free of damage.

    Were any concerns found?

    Yes  REPAIR as necessary. Refer to Connector Repair Procedures for schematic and connector information. Go to  A24
    No  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to  A24

  30. A24 CHECK FOR ADDITIONAL SRS (SUPPLEMENTAL RESTRAINT SYSTEM) DIAGNOSTIC TROUBLE CODES (DTCS)

    • Ignition OFF.

    • Reconnect all SRS components (if previously disconnected).

    • Ignition ON.

    • NOTE: When selecting Restraints from the Self Test menu, DTCs are retrieved from the RCM and BECMB.

      Using a diagnostic scan tool, carry out RCM self-test.

    Are any RCM and/or BECMB Diagnostic Trouble Codes (DTCs) retrieved on-demand during self-test?

    Yes  Do not clear any Diagnostic Trouble Codes (DTCs) until all Diagnostic Trouble Codes (DTCs) have been resolved. DIAGNOSE and REPAIR the Diagnostic Trouble Codes (DTCs). Refer to: Airbag Supplemental Restraint System (SRS) .
    No  The repair is complete. RETURN the vehicle to the customer.
scientia non olet · About LEMON Manuals
