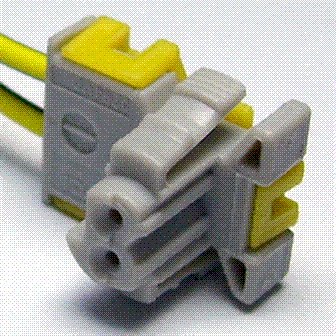

Connector End View (C216A) - DRIVER AIRBAG

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

PIA

Base Part #

74043B13

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1 +	without AFS
1	CR101 (WH)	20	CTRL MOD. - AIR BAG DRIVER 1 +	with AFS
2	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	without AFS
2	RR101 (BU)	20	CTRL MOD. - AIR BAG DRIVER 1 -	with AFS

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1223

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BFA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Squib - Airbag (Passenger)
