Supplemental Restraint System

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

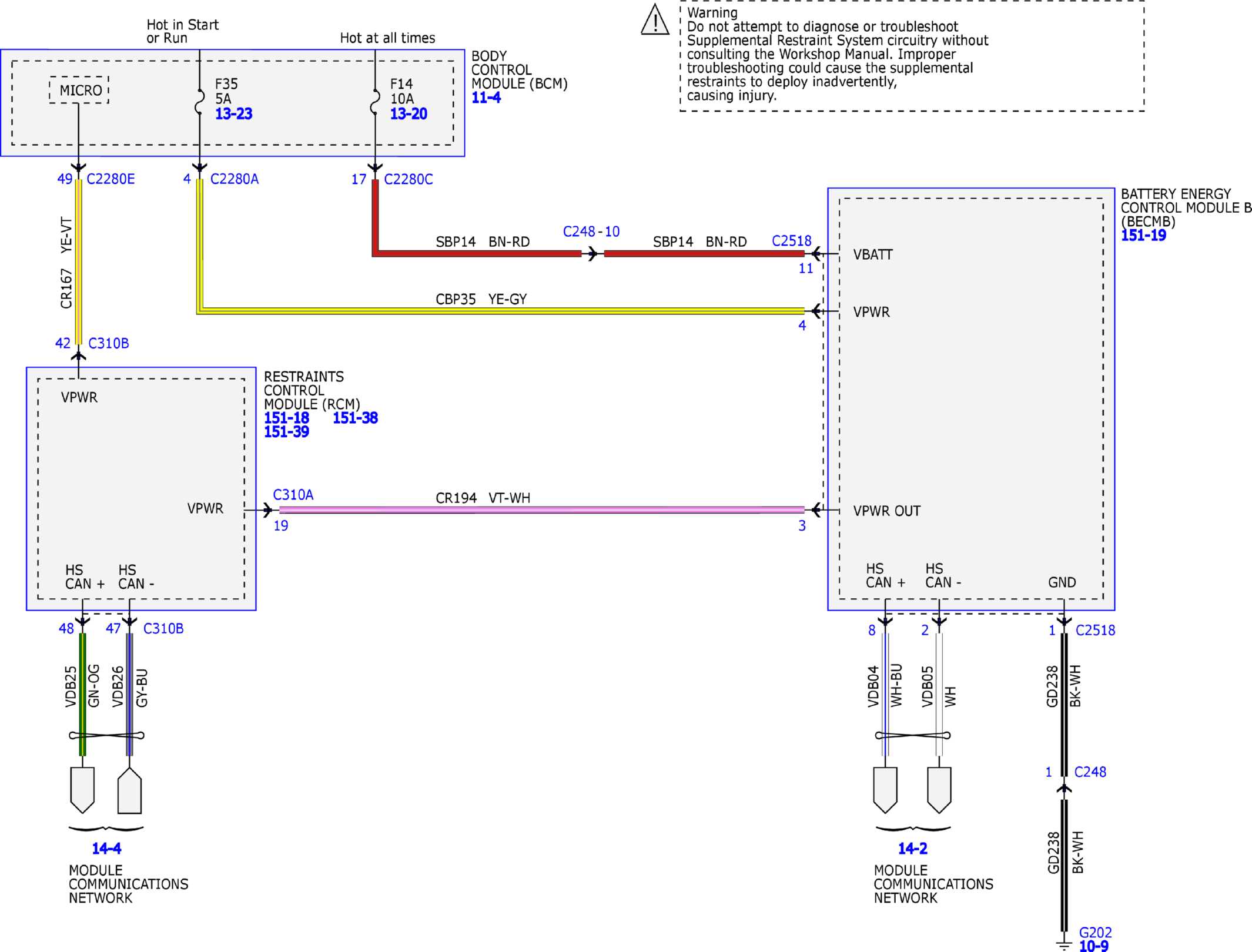

Fig 1: Supplemental Restraint System Wiring Diagram (1 of 8)

GFDW83519

Courtesy of FORD MOTOR COMPANY

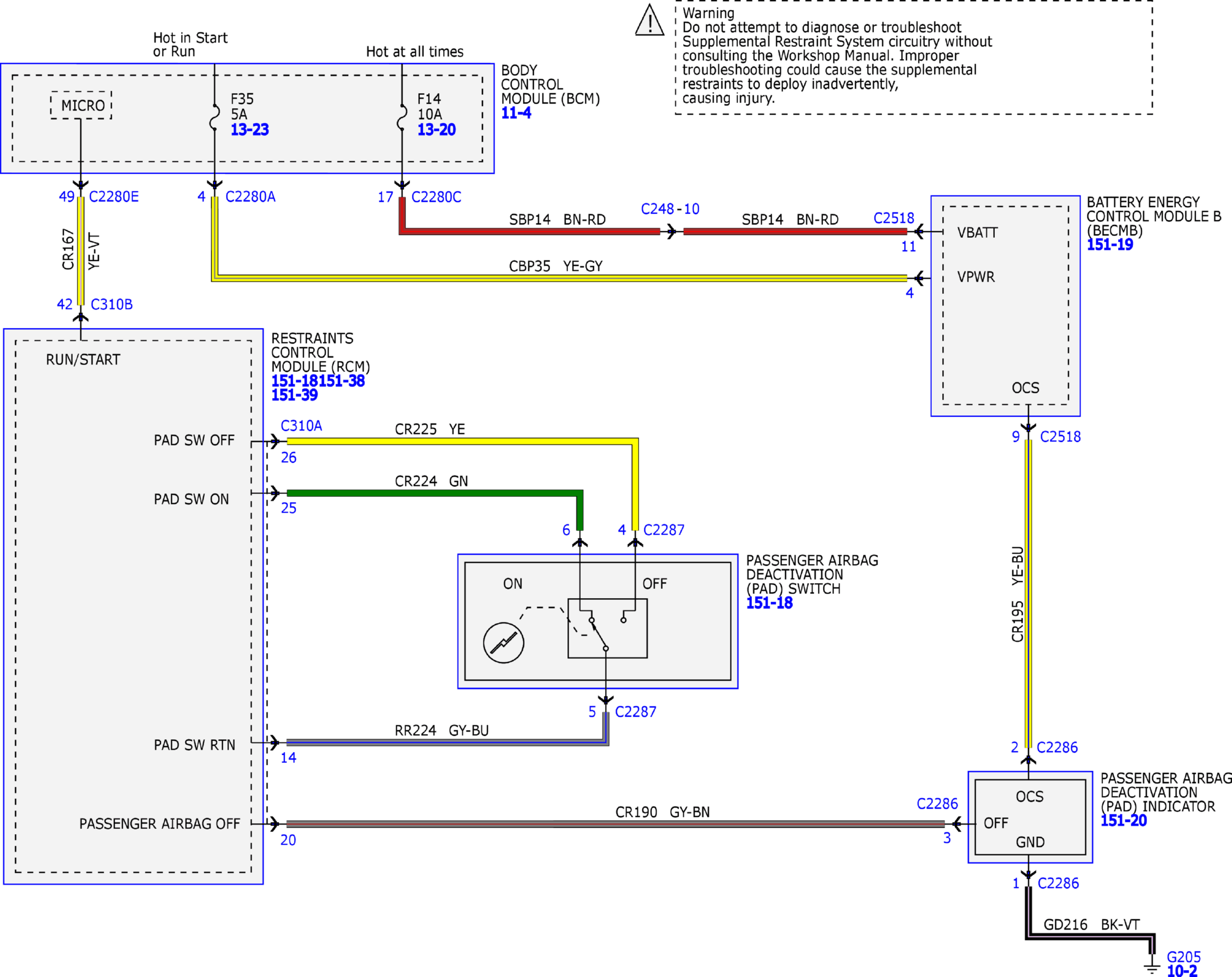

Fig 2: Supplemental Restraint System Wiring Diagram (2 of 8)

GFDW83520

Courtesy of FORD MOTOR COMPANY

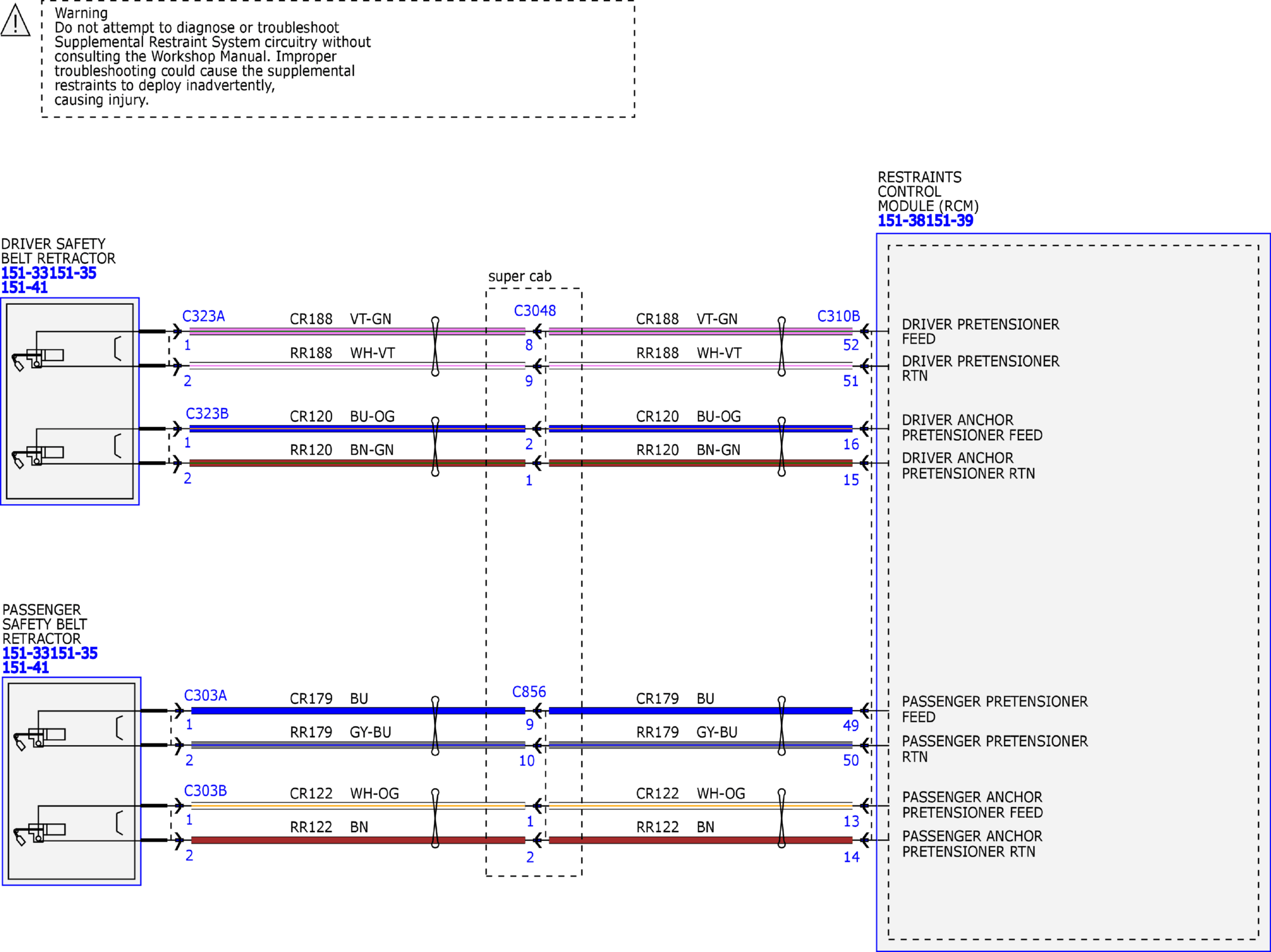

Fig 3: Supplemental Restraint System Wiring Diagram (3 of 8)

GFDW83521

Courtesy of FORD MOTOR COMPANY

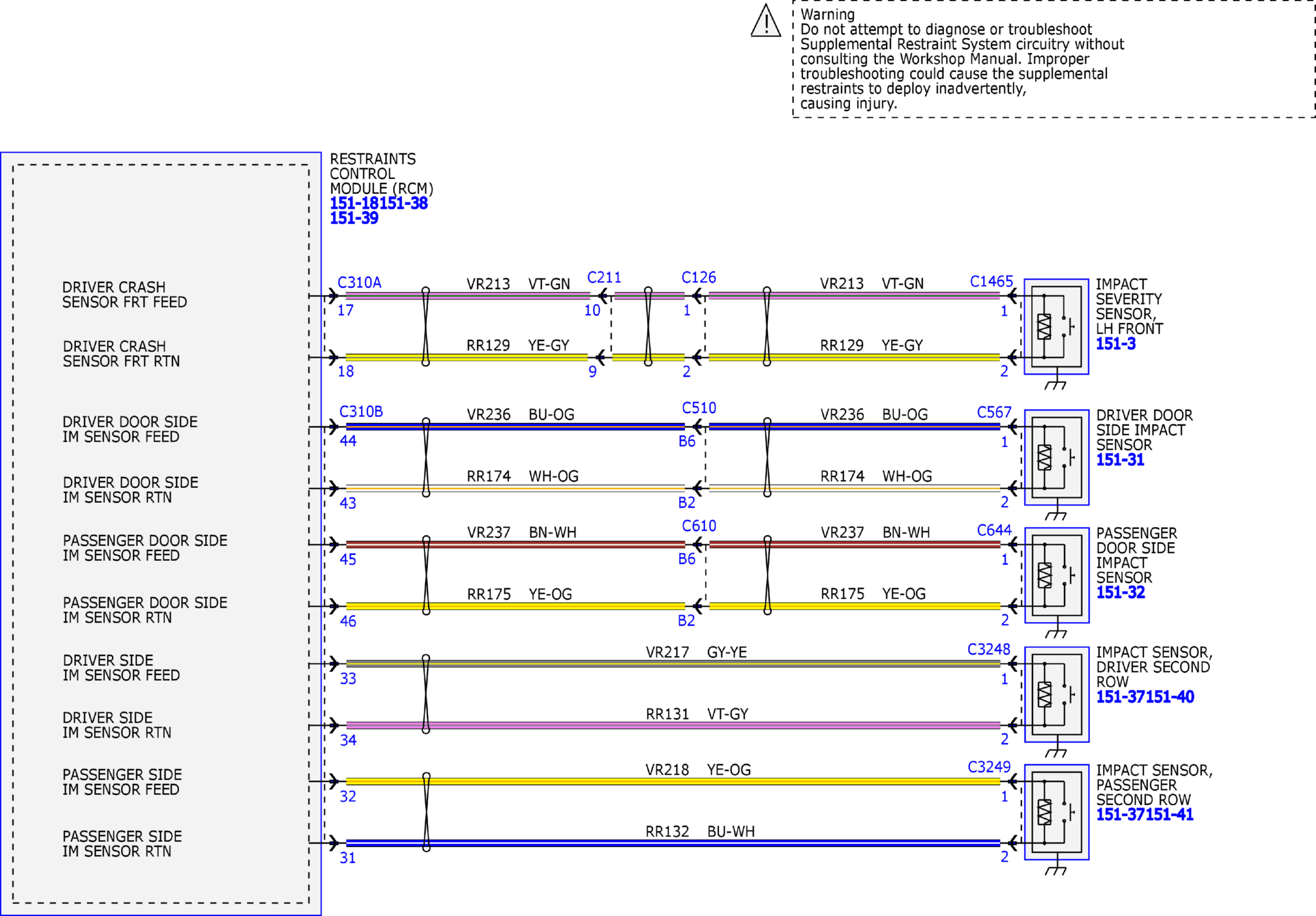

Fig 4: Supplemental Restraint System Wiring Diagram (4 of 8)

GFDW83522

Courtesy of FORD MOTOR COMPANY

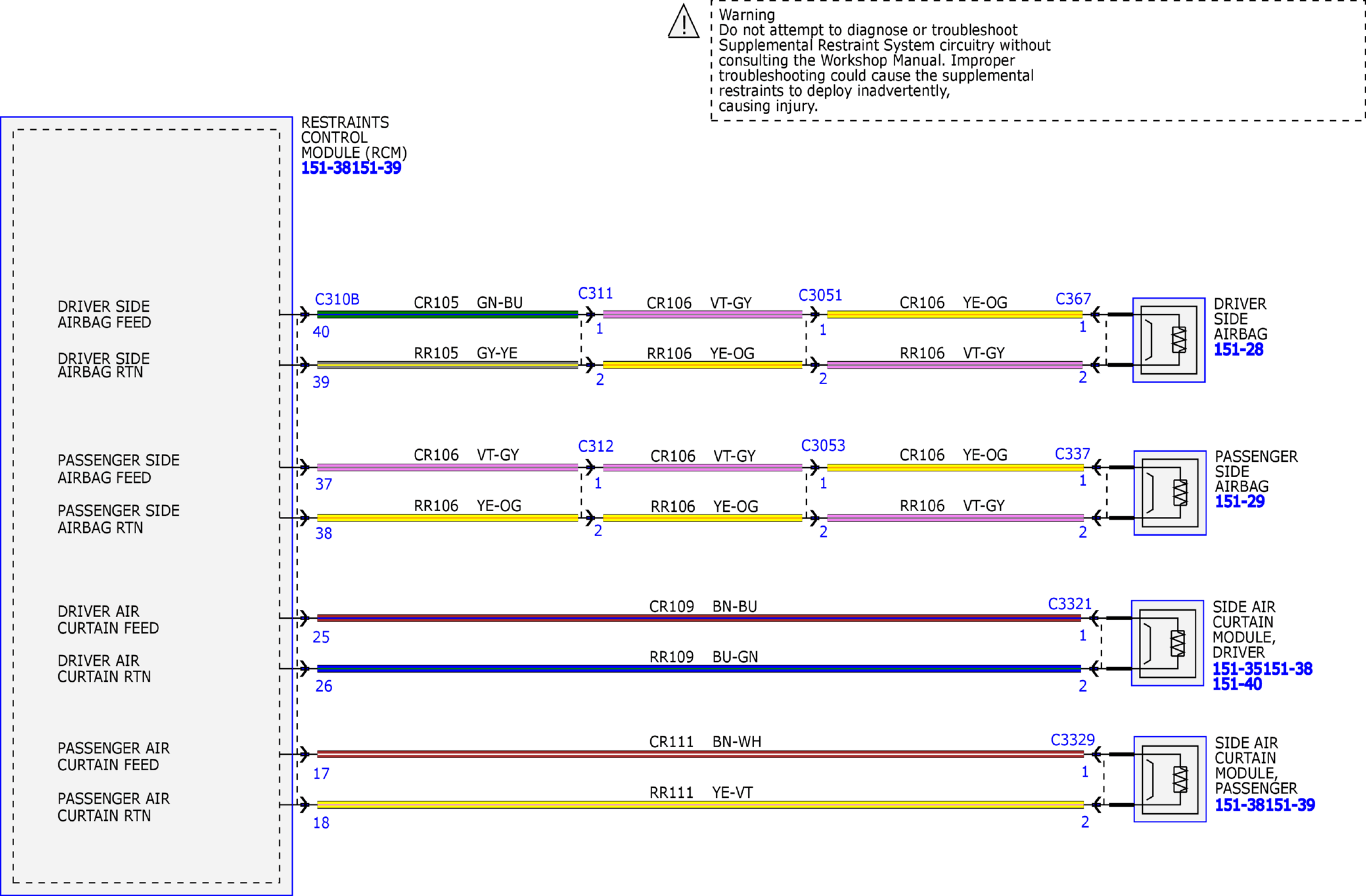

Fig 5: Supplemental Restraint System Wiring Diagram (5 of 8)

GFDW83523

Courtesy of FORD MOTOR COMPANY

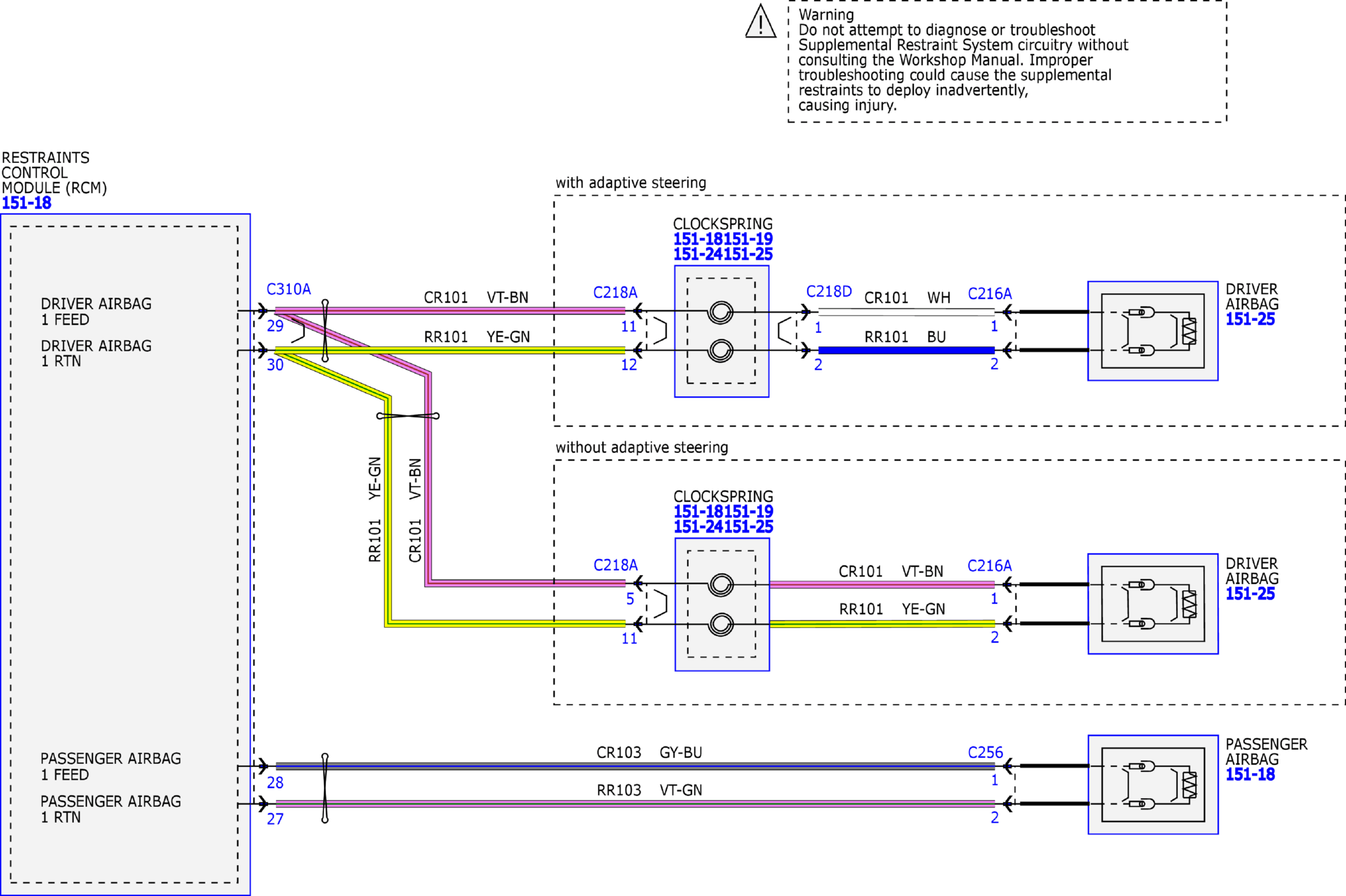

Fig 6: Supplemental Restraint System Wiring Diagram (6 of 8)

GFDW83524

Courtesy of FORD MOTOR COMPANY

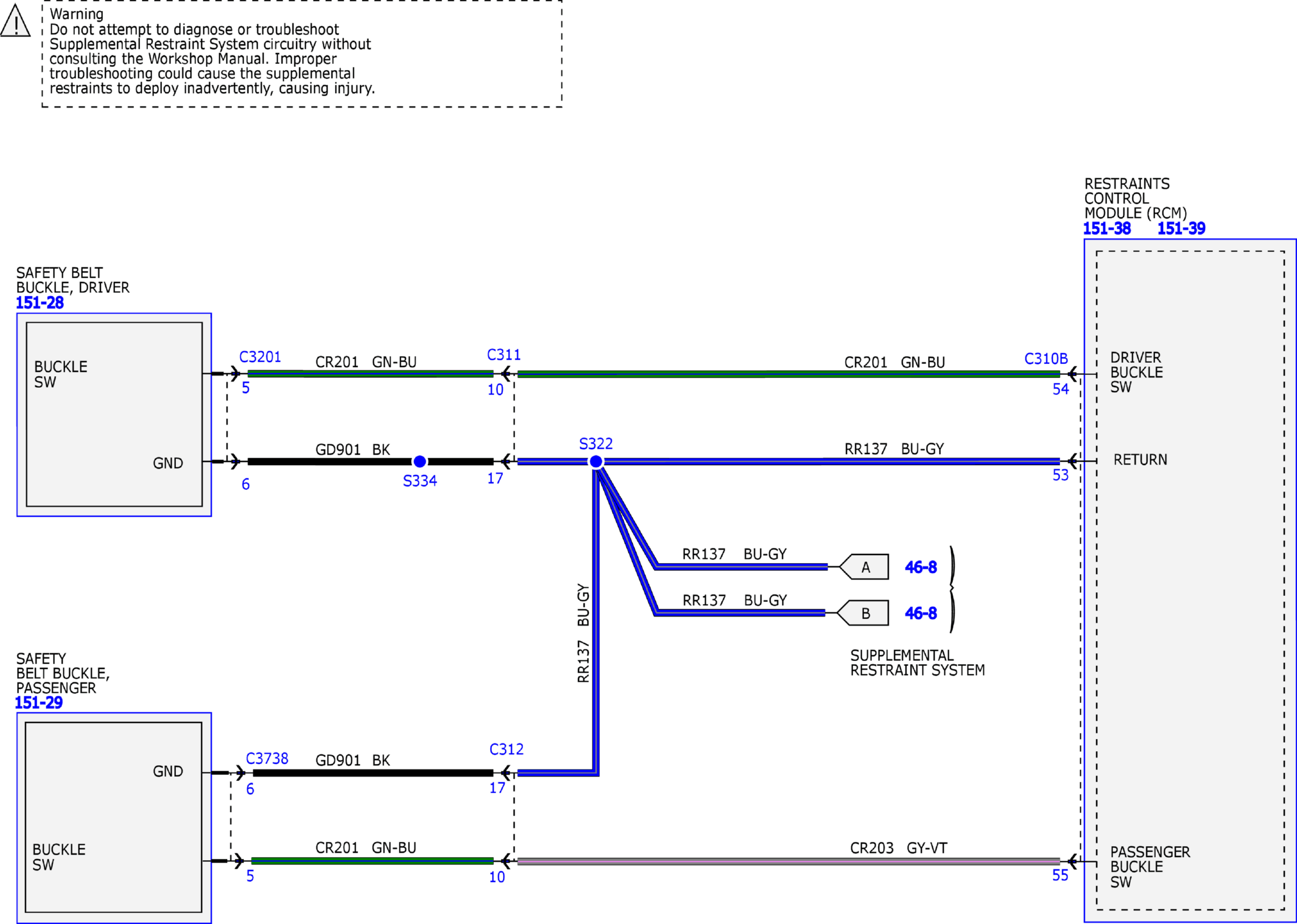

Fig 7: Supplemental Restraint System Wiring Diagram (7 of 8)

GFDW83525

Courtesy of FORD MOTOR COMPANY

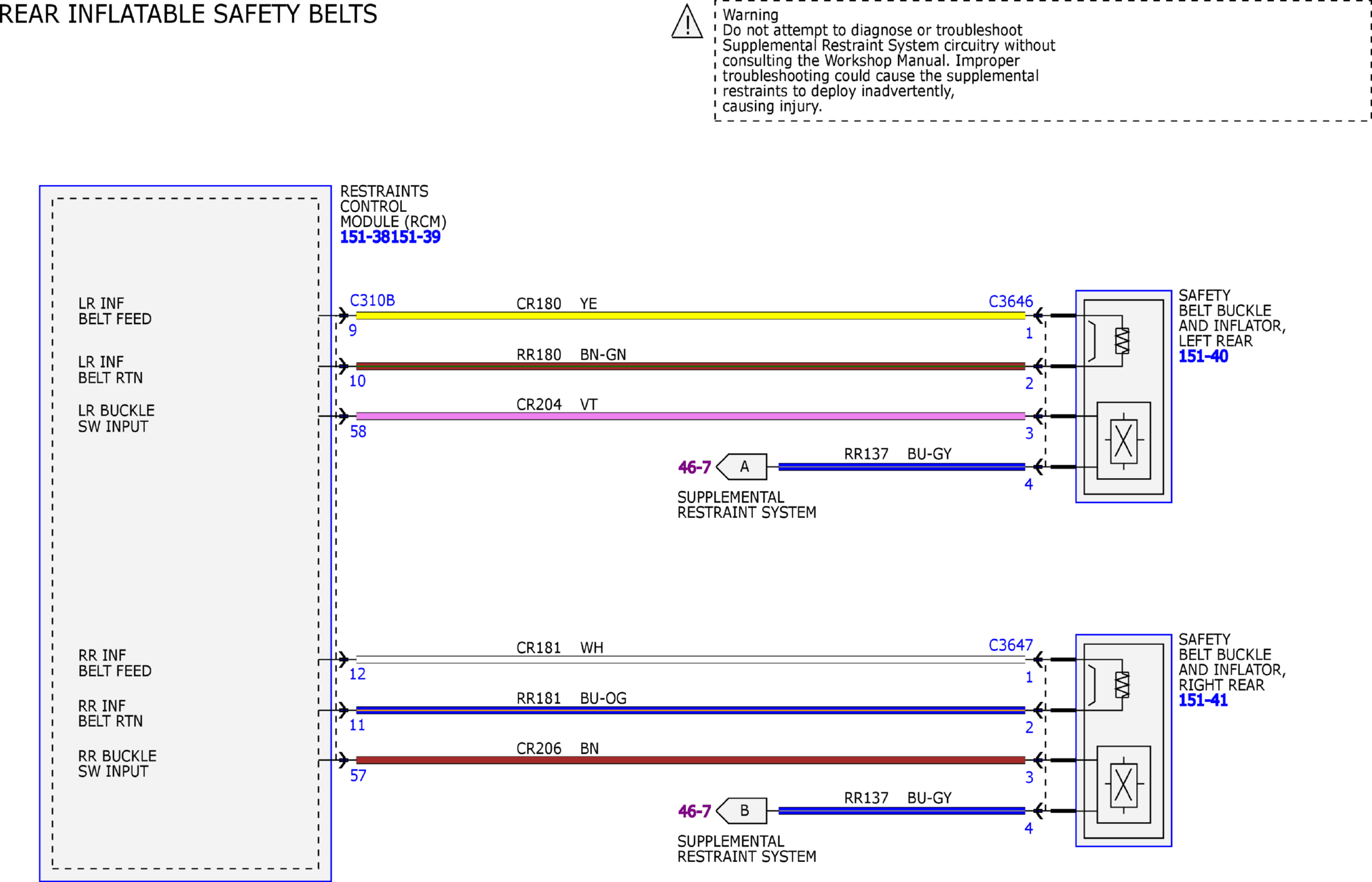

Fig 8: Supplemental Restraint System Wiring Diagram (8 of 8)

GFDW83526

Courtesy of FORD MOTOR COMPANY
