Fuel Injector Supply Tube: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, 2019 Ford F-250 Super Duty, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Left side

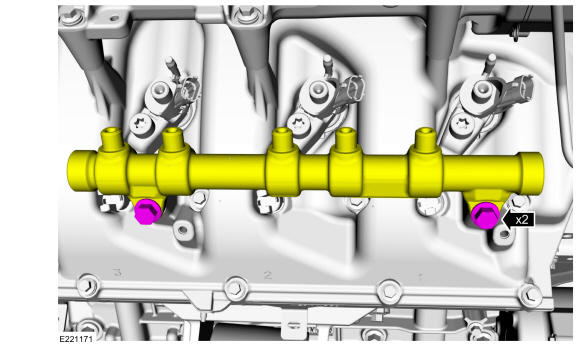

Loosen the fuel rail mounting bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a deep-well crowfoot socket to tighten the fuel injector supply tube.

Position the new fuel injector supply tubes between the fuel rail and the fuel injectors. Fully hand-start and seat the fuel injector supply tube fittings onto the fuel rail and the fuel injectors. Tighten in the stages and in the sequence shown.

Torque: 1-2 fuel rail mounting bolts : 18 lb.ft (24 Nm) 3-6 fuel injector supply tube fittings to fuel injectors : 89 lb.in (10 Nm) 7-10 fuel injector supply tube fittings to fuel rail : 89 lb.in (10 Nm) 3-6 fuel injector supply tube fittings to fuel injectors : 65 deg. 7-10 fuel injector supply tube fittings to fuel rail : 65 deg.

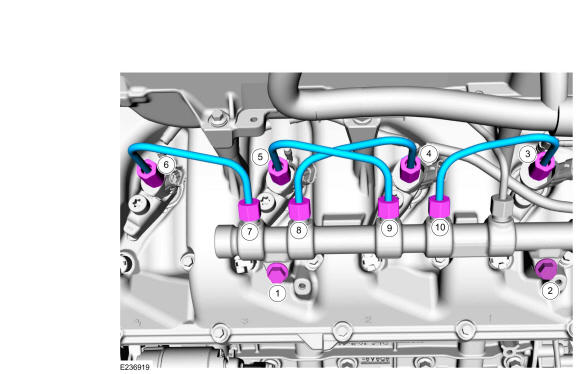

Fig 1: Fuel Injector Supply Tubes Tightening Sequence
Courtesy of FORD MOTOR COMPANY

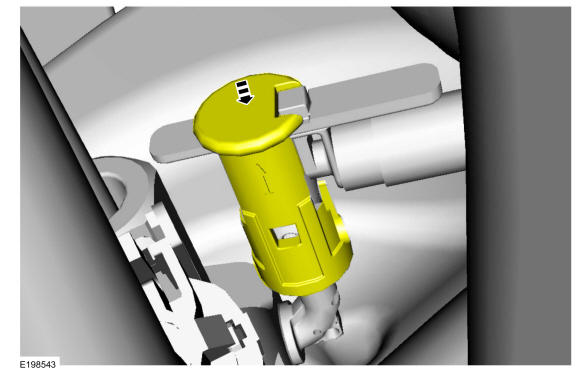

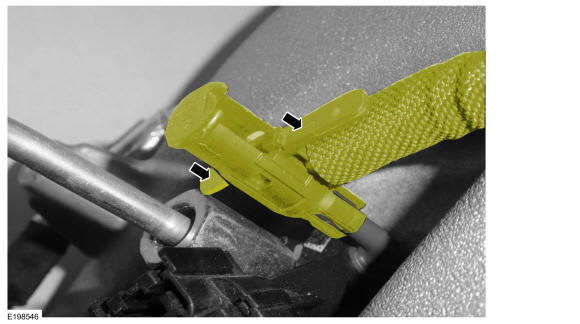

Push down on the fuel injector return hose fitting tabs to connect the fuel injector return hose fittings to the fuel injectors.

Courtesy of FORD MOTOR COMPANY
Push down on the center of the fuel injector return hose fittings to lock the fittings to the fuel injectors.

Courtesy of FORD MOTOR COMPANY

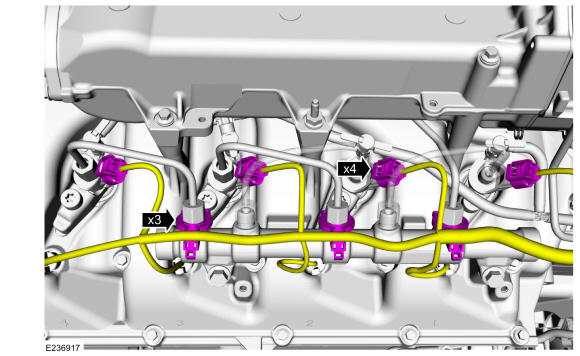

- Attach the fuel injector fuel return line retainer to the fuel rail.
- Connect the fuel injector electrical connectors.
- Connect the fuel pressure control valve electrical connector.
- Connect the fuel charging wiring harness retainers to the fuel rail.
Courtesy of FORD MOTOR COMPANY

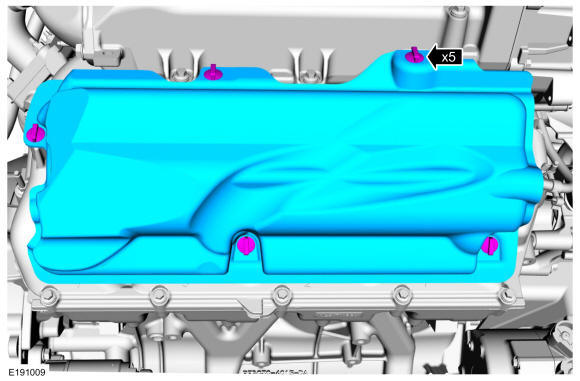

Install the left engine sound shield and then install the left engine sound shield retainers.

Courtesy of FORD MOTOR COMPANY
Install the left fender splash shield. Refer to: Fender Splash Shield .
Right side

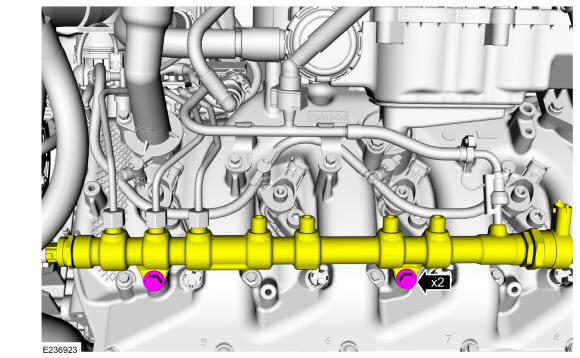

Loosen the fuel rail mounting bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a deep-well crowfoot socket to tighten the fuel injector supply tube.

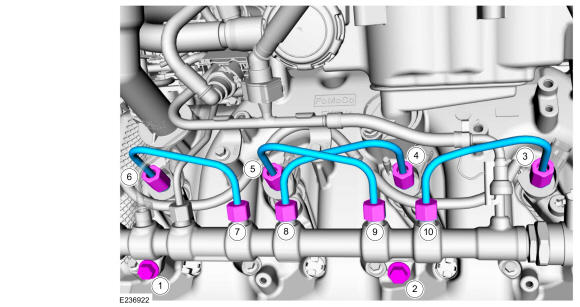

Position the new fuel injector supply tubes between the fuel rail and the fuel injectors. Fully hand-start and seat the fuel injector supply tube fittings onto the fuel rail and the fuel injectors. Tighten in the stages and in the sequence shown.

Torque: 1-2 fuel rail mounting bolts : 18 lb.ft (24 Nm) 3-6 fuel injector supply tube fittings to fuel injectors : 89 lb.in (10 Nm) 7-10 fuel injector supply tube fittings to fuel rail : 89 lb.in (10 Nm) 3-6 fuel injector supply tube fittings to fuel injectors : 65 deg. 7-10 fuel injector supply tube fittings to fuel rail : 65 deg.

Courtesy of FORD MOTOR COMPANY
Push down on the fuel injector return hose fitting tabs to connect the fuel injector return hose fittings to the fuel injectors.

Courtesy of FORD MOTOR COMPANY
Push down on the center of the fuel injector return hose fittings to lock the fittings to the fuel injectors.

Courtesy of FORD MOTOR COMPANY

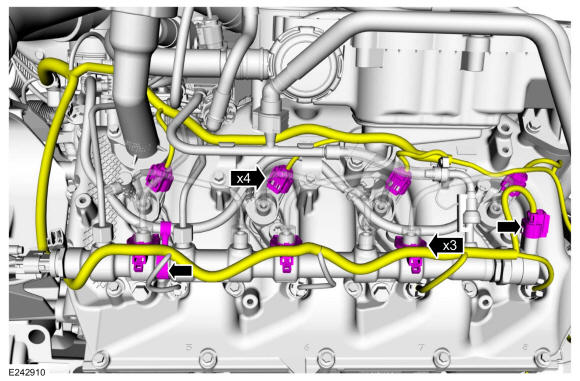

- Connect the fuel injector electrical connectors.
- Connect the fuel charging wiring harness retainers to the fuel rail.
Courtesy of FORD MOTOR COMPANY
Install the right engine sound shield and then install the right engine sound shield retainers.

Courtesy of FORD MOTOR COMPANY
Install the right fender splash shield. Refer to: Fender Splash Shield .
Install the air cleaner. Refer to: AIR CLEANER (2018)Air Cleaner (2019) .
Both sides
Connect the battery. Refer to: BATTERY DISCONNECT AND CONNECT (2018)Battery Disconnect and Connect (2019) .
Bleed the Fuel System. Refer to: FUEL SYSTEM BLEEDING (2018)Fuel System Bleeding (2019) .
