Fuel System Bleeding

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Fluid Container

Bleeding

  1. Bleed the fuel system by cycling the ignition 3 times in the following sequence:

    • Turn the ignition key ON without cranking the engine.

    • Wait 30 seconds for the fuel pump and sender unit to run.

    • Turn the ignition key OFF.

    • Repeat 3 times.

  2. Test the system for normal operation. If the engine will not start there may still be air in the fuel system, continue bleeding the fuel system with the following steps.
  3. NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.

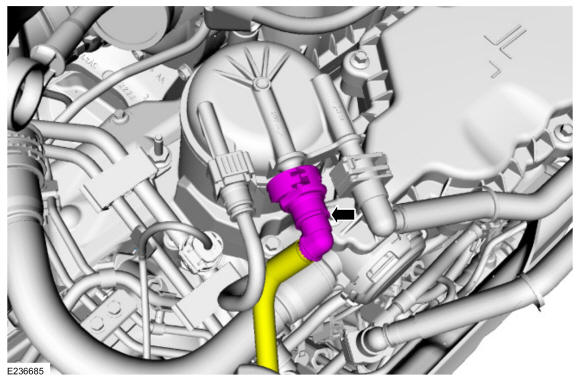

    If air is still present in the fuel system, disconnect the fuel supply tube quick release coupling from the secondary fuel filter and position aside. Refer to: Quick Release Coupling  .

    GFD409684Courtesy of FORD MOTOR COMPANY

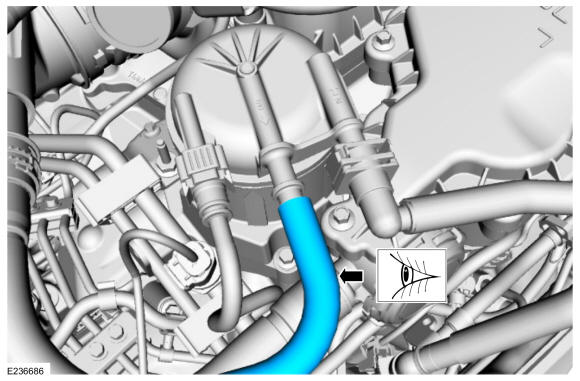

  4. Install one end of a suitable hose onto the secondary fuel filter and the other end into a suitable container. Use the General Equipment: Fluid Container
    GFD409685Courtesy of FORD MOTOR COMPANY
  5. Cycle the ignition 3 times in the following sequence until no air is present in the fuel system:

    • Turn the ignition key ON without cranking the engine.

    • Wait 30 seconds for the fuel pump and sender unit to run.

    • Turn the ignition key OFF.

  6. NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.

    Remove the hose and connect the fuel supply tube quick connect coupling to the secondary fuel filter. Refer to: Quick Release Coupling  .

    GFD409684Courtesy of FORD MOTOR COMPANY
  7. NOTE: Carry out a KOEO visual inspection for fuel leaks after completing the Fuel System Bleeding procedure.

    Check the system for normal operation.
