Battery Disconnect and Connect

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING .

Disconnect

NOTE: If the vehicle is equipped with a secondary battery, both negative cables must be disconnected from the batteries to interrupt the vehicles electrical system power. Failure to disconnect both of the negative battery cables may cause vehicle damage.

NOTE: When disconnecting the battery ground cable to interrupt power to the vehicle electrical system, disconnect the battery ground cable/cables only. It is not necessary to disconnect the positive battery cable(s).

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.

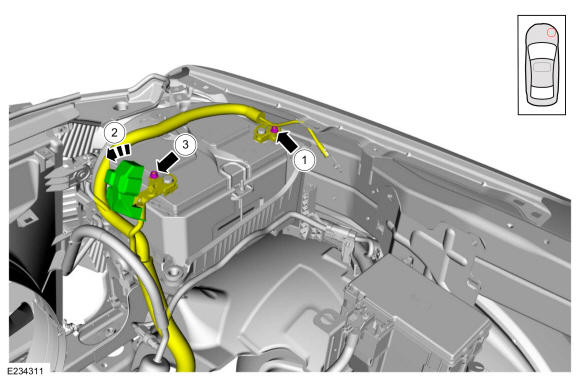

Primary battery

1. Loosen the nut and position the negative battery cable.
  Torque: 80 lb.in (9 Nm)
2. Position the positive battery cable terminal cover.
3. Loosen the nut and position the positive battery cable.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

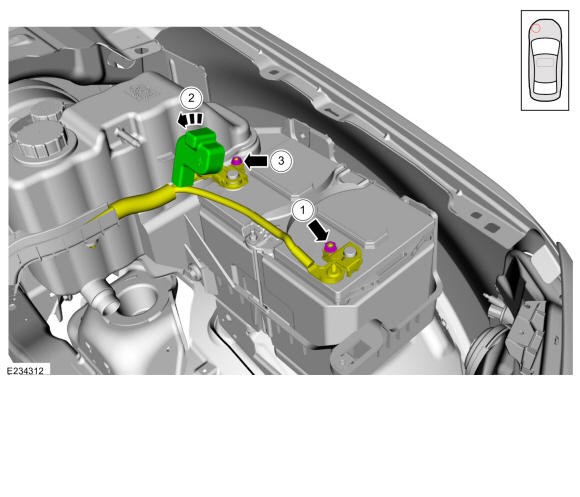

Secondary battery
1. Loosen the nut and position the negative battery cable.
  Torque: 80 lb.in (9 Nm)
2. Position the positive battery cable terminal cover.
3. Loosen the nut and position the positive battery cable.
  Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

To connect, reverse the disconnect procedure.
