Clutch Disc and Pressure Plate: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to: Transmission 5-Speed Manual Transmission - MTX75 . Refer to: Transmission 6-Speed Manual Transmission - B6 . Refer to: Transmission - 2.0L EcoBoost (184kW/250PS) - MI4 6-Speed Manual Transmission - MMT6 .

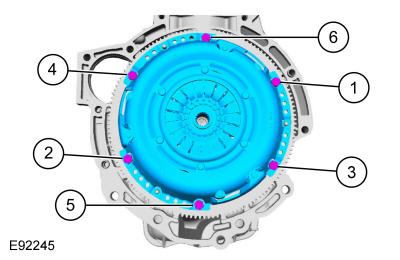

  2. Loosen each bolt 2 turns at a time until all bolts are removed. Remove the clutch disc and pressure plate.
GFD268489Courtesy of FORD MOTOR COMPANY
