Fuel Tank: Removal
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Drain the fuel tank. Refer to: Fuel Tank Draining .
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .

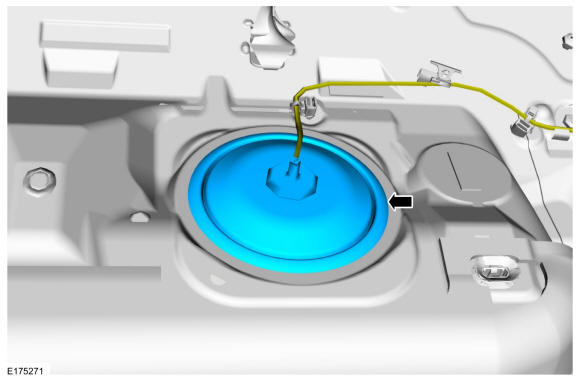

- Remove the cover.

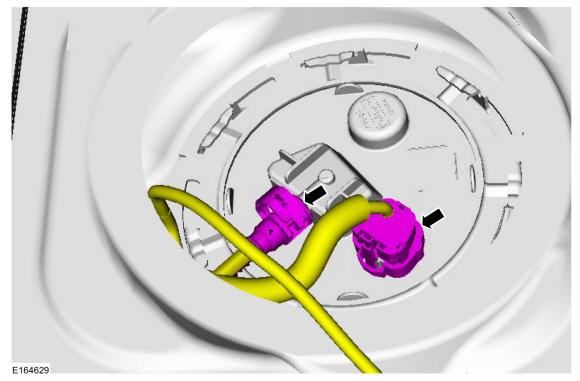

- Disconnect the electrical connector and the fuel line quick release coupling. Refer to: Quick Release Coupling
.

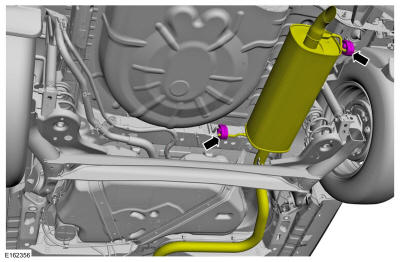

- Disconnect the insulators and position aside the exhaust.

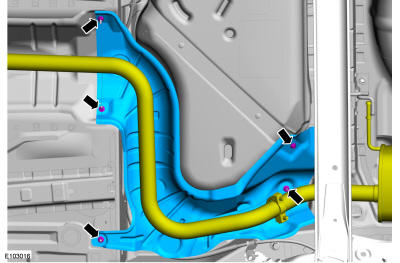

- Remove the retainers and shield.
-

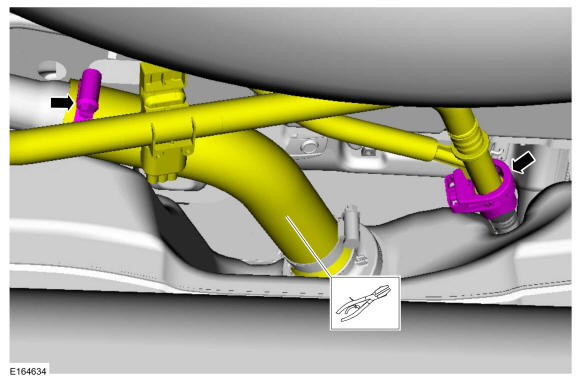

- Clamp off the fuel filler pipe hose. Use the General Equipment: Hose Clamp(s)
- Release the clamp and position aside the filler pipe hose.
- Disconnect vapor line quick release coupling and position aside. Refer to: Quick Release Coupling .

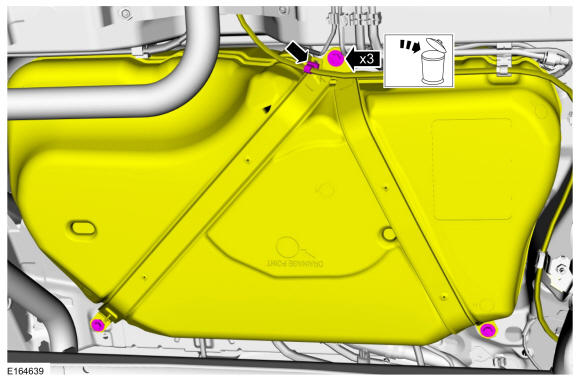

- Remove and discard the fuel tank strap bolts. Use the General Equipment: Powertrain Jack
Torque: 18 lb.ft (25 Nm)

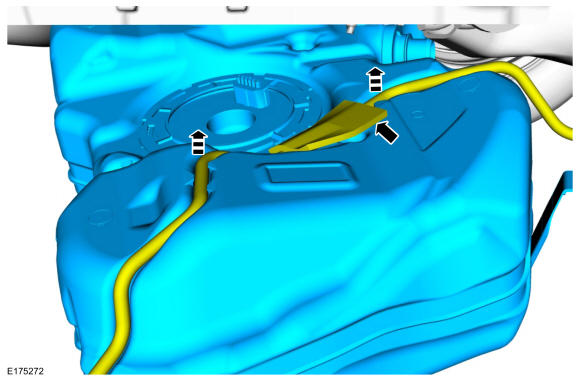

- Lower the fuel tank far enough to disconnect the vapor line. Remove the fuel tank.
