Fuel Tank Draining
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM |
|
|---|---|
Draining
-
NOTE: Do not remove the hose clamp at the filler neck hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
-
NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

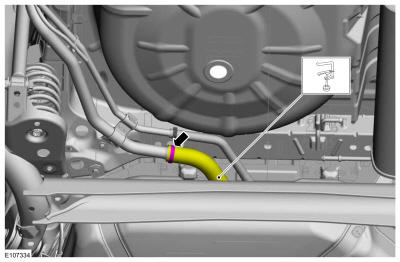

Release the clamp and position the fuel tank filler pipe hose aside. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
- Secure the fuel tank filler pipe hose above the fuel level.

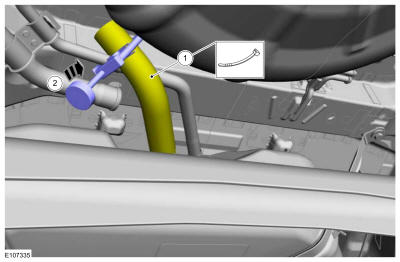

- Insert a fuel drain tube into the fuel tank filler pipe hose, attach the Fuel Storage Tanker and drain as much fuel as possible from the fuel tank. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
