Section 16 (Engine - 3.2L DURATORQ-TDCI (148KW/200PS) - Puma): Installation: Engine

WARNING: This page is about a different variant/trim than selected.

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1997-F/FLM/LT TKIT-1998-LM (NavigatoR)
Strap Wrench
Floor Crane
Adjustable Mounting Arm
Vehicle/Axle Stands
Hose Clamp Remover/Installer

Materials

Name	Specification
Motorcraft® Multi-Purpose Grease Spray XL-5-A	ESB-M1C93-B
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil XO-5W40-5Q3SD	WSS-M2C171-F1
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LVWSS-M2C938-A

1.

NOTE: Failure to inspect the components for debris may result in repeat failures.

NOTE: It may be necessary to use a borescope to inspect the components.

When an engine or turbocharger is replaced due to a failure, inspect the following components for potential metal debris. If evidence of debris is found, clean or replace the components as needed.
- CAC and the CAC tubes
- Intake air system
- Exhaust manifolds
- EGR cooler and pipes
- Diesel Oxidation Catalyst (DOC)
- Turbocharger (on engine failure only)

2.

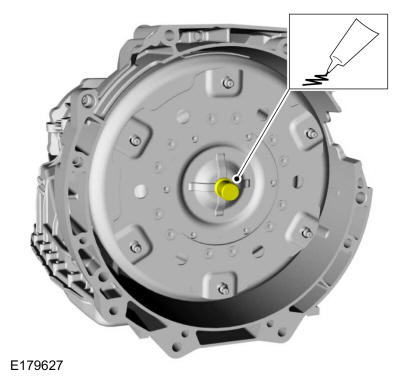

Lubricate the torque converter pilot hub with multi-purpose grease.
Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

GFD144648

Courtesy of FORD MOTOR COMPANY

3.

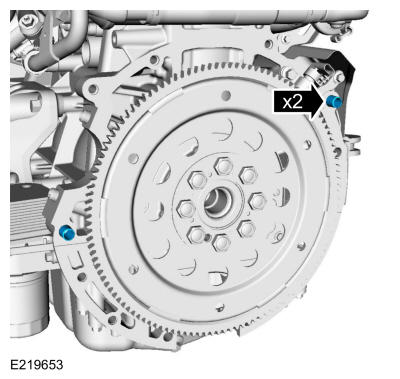

Verify that the component alignment dowels are installed in the engine block.

GFD144649

Courtesy of FORD MOTOR COMPANY

4.

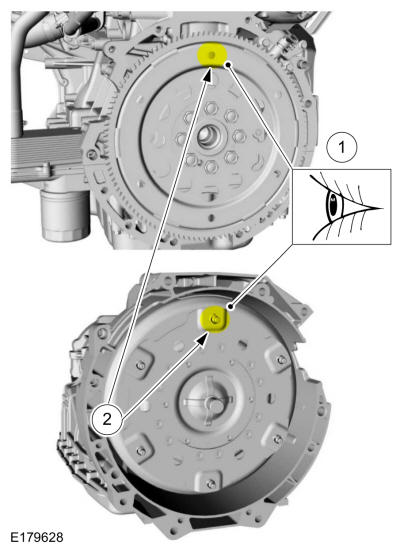

- Align the flexplate-to-converter marks made during the removal.
- Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

GFD144650

Courtesy of FORD MOTOR COMPANY

5.

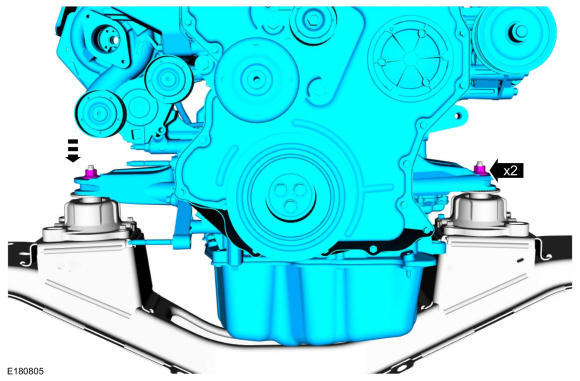

- Using the floor crane, lower the engine onto the engine crossmember.
  Use the General Equipment: Floor Crane
- Install the new engine mount nuts.
  Torque: 85 lb.ft (115 Nm)

GFD144651

Courtesy of FORD MOTOR COMPANY

6.

Install the nut for the adjustable mounting arm.

GFD144434

Courtesy of FORD MOTOR COMPANY

7.

Remove the floor crane.
Use the General Equipment: Floor Crane

GFD144433

Courtesy of FORD MOTOR COMPANY

8.

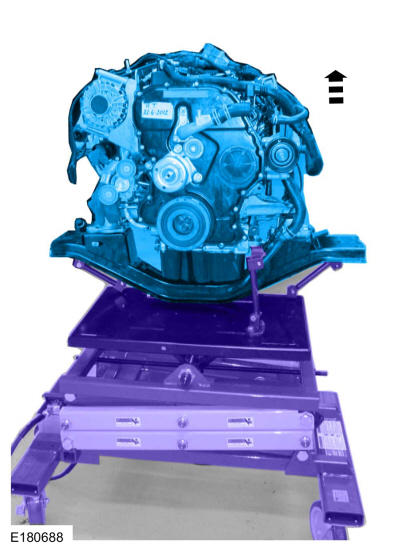

Using the powertrain lift table, raise the engine into the vehicle.

GFD144652

Courtesy of FORD MOTOR COMPANY

9.

Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

GFD144431

Courtesy of FORD MOTOR COMPANY

10.

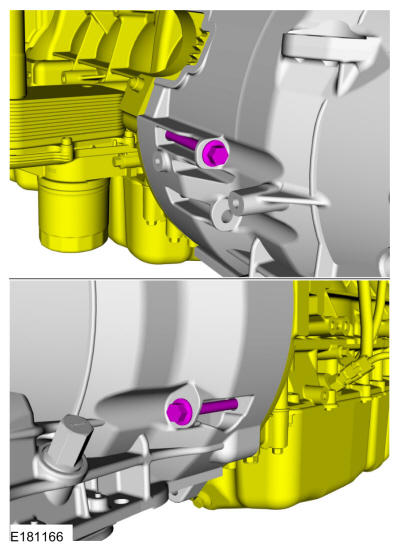

NOTE: Make sure the torque converter studs are aligned with the holes in the flexplate.

Align the engine to the transmission. Draw the engine to the transmission using the bolts.

Torque: 35 lb.ft (48 Nm)

GFD144653

Courtesy of FORD MOTOR COMPANY

11.

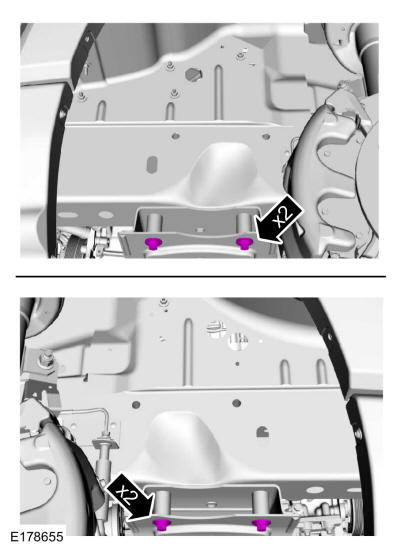

Install the new engine crossmember bolts.
Torque: 46 lb.ft (63 Nm)

GFD143807

Courtesy of FORD MOTOR COMPANY

12.

Position the engine crossmember brackets for both sides.

GFD144429

Courtesy of FORD MOTOR COMPANY

13.

NOTE: Do not tighten the bolts at this time.

Install the new engine mount bolts for both sides.

GFD144272

Courtesy of FORD MOTOR COMPANY

14.

Install the new frame bolts for both sides.
Torque: 46 lb.ft (63 Nm)

GFD144273

Courtesy of FORD MOTOR COMPANY

15.

Tighten the bolts for the engine mount for both sides.
Torque: 22 lb.ft (30 Nm)

GFD144272

Courtesy of FORD MOTOR COMPANY

16.

Remove the adjustable mounting arm from the RH side of the engine crossmember.
Use the General Equipment: Adjustable Mounting Arm

GFD144428

Courtesy of FORD MOTOR COMPANY

17.
- Remove the adjustable mounting arm from the left front corner of the engine.
  Use the General Equipment: Adjustable Mounting Arm
- Remove the adjustable mounting arm from the LH side of the engine crossmember. Remove the powertrain lift table.
  Use the General Equipment: Adjustable Mounting Arm

GFD144427

Courtesy of FORD MOTOR COMPANY

18.

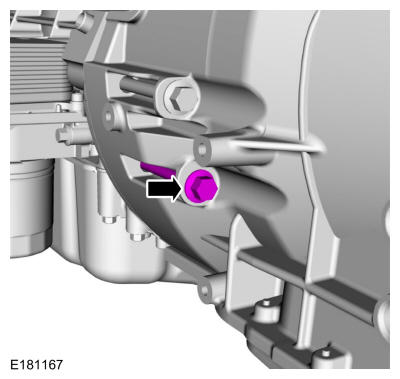

Install the LH side engine-to-transmission bolt.
Torque: 35 lb.ft (48 Nm)

GFD144654

Courtesy of FORD MOTOR COMPANY

19.

Install the RH upper engine-to-transmission bolts.
Torque: 35 lb.ft (48 Nm)

GFD144424

Courtesy of FORD MOTOR COMPANY

20.

NOTE: Engine removed for clarity.

Remove the wooden boards and the ratchet strap.

GFD144423

Courtesy of FORD MOTOR COMPANY

21.

Position a stand under the transmission crossmember.
Use the General Equipment: Vehicle/Axle Stands

GFD144419

Courtesy of FORD MOTOR COMPANY

22.

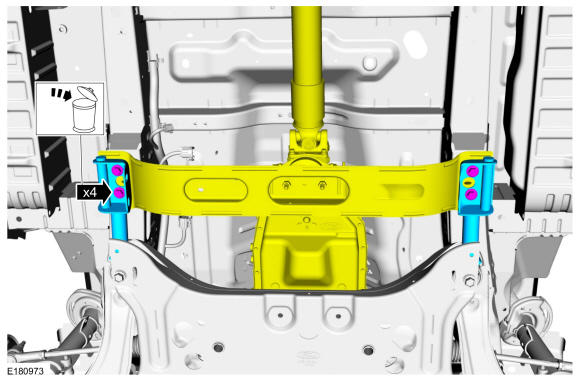

- Remove the bolts and the front subframe braces for the transmission crossmember. Discard the bolts.
- Lower the transmission crossmember 25 mm (1 inch).

GFD144655

Courtesy of FORD MOTOR COMPANY

23.

Install the upper engine-to-transmission bolts.
Torque: 35 lb.ft (48 Nm)

GFD144421

Courtesy of FORD MOTOR COMPANY

24.
- Raise the transmission crossmember.
- Install the front subframe braces and new bolts for the transmission crossmember.
  Torque: 148 lb.ft (200 Nm)

GFD144420

Courtesy of FORD MOTOR COMPANY

25.

Remove the stand from the transmission crossmember.

GFD144419

Courtesy of FORD MOTOR COMPANY

26.

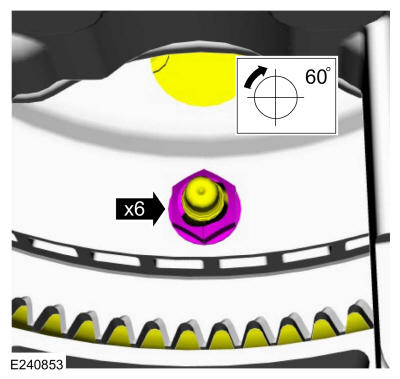

NOTE: Using a strap wrench, rotate the engine clockwise.

Install the new torque converter nuts.

Use the General Equipment: Strap Wrench

Torque: 35 lb.ft (48 Nm)

GFD144656

Courtesy of FORD MOTOR COMPANY

27.

Install the torque converter cover.
Torque: 35 lb.ft (48 Nm)

GFD144417

Courtesy of FORD MOTOR COMPANY

28.

If equipped with rear heat, connect the coolant hoses.

GFD144416

Courtesy of FORD MOTOR COMPANY

29.

NOTE: Body removed for clarity.

Connect the transmission electrical connectors and wire retainers.

GFD144415

Courtesy of FORD MOTOR COMPANY

30.

Connect the transmission wire retainers.

GFD144414

Courtesy of FORD MOTOR COMPANY

31.

Install the starter. Refer to: Starter Motor .

32.

Install the A/C compressor and the bolts.
Torque: 18 lb.ft (25 Nm)

GFD144413

Courtesy of FORD MOTOR COMPANY

33.

Connect the A/C electrical connector and retainer.

GFD144412

Courtesy of FORD MOTOR COMPANY

34.

If equipped with rear A/C, connect the A/C tube and install the nut.
Torque: 133 lb.in (15 Nm)

GFD144411

Courtesy of FORD MOTOR COMPANY

35.

Connect the A/C tube and install the nut.
Torque: 133 lb.in (15 Nm)

GFD144410

Courtesy of FORD MOTOR COMPANY

36.

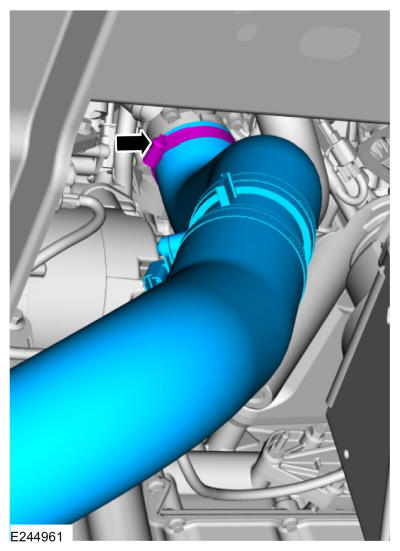

Install the CAC pipe and tighten the clamp.
Torque: 44 lb.in (5 Nm)

GFD144657

Courtesy of FORD MOTOR COMPANY

37.

Connect the CAC temperature sensor electrical connector and the wire retainer.

GFD144264

Courtesy of FORD MOTOR COMPANY

38.

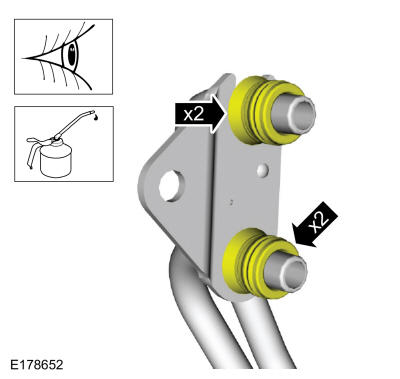

NOTE: Transmission side shown in illustration, transmission cooler side similar.

NOTE: Lubricate with clean transmission oil.

Inspect the transmission cooler tube seals and backing rings, replace if necessary.

Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

GFD143819

Courtesy of FORD MOTOR COMPANY

39.

Install the transmission cooler tubes and bolts.
Torque: 97 lb.in (11 Nm)

GFD144408

Courtesy of FORD MOTOR COMPANY

40.

Position the transmission cooler tube bracket and install the nut.
Torque: 97 lb.in (11 Nm)

GFD144407

Courtesy of FORD MOTOR COMPANY

41.

Install the transmission cooler tube bolt at the transmission.
Torque: 18 lb.ft (25 Nm)

GFD144406

Courtesy of FORD MOTOR COMPANY

42.

Position the power steering pump and install the nuts and bolt.
Torque: 22 lb.ft (30 Nm)

GFD144245

Courtesy of FORD MOTOR COMPANY

43.

Position back the bracket and install the bolt.
Torque: 106 lb.in (12 Nm)

GFD144405

Courtesy of FORD MOTOR COMPANY

44.

Using a new turbocharger gasket, position back the catalytic converter.

GFD144404

Courtesy of FORD MOTOR COMPANY

45.

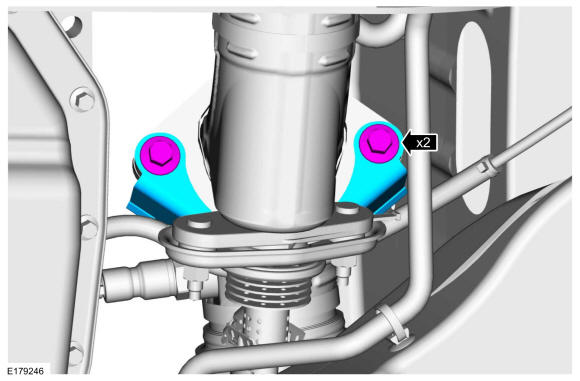

Using a new gasket, install the exhaust heat shield and bolts.
Torque: 30 lb.ft (40 Nm)

GFD144658

Courtesy of FORD MOTOR COMPANY

46.

NOTE: The catalytic converter bracket bolts are 2 different sizes. Install the bolts in the same location as they were removed.

Install the catalytic converter bracket and the bolts.

Torque: 18 lb.ft (25 Nm)

GFD144402

Courtesy of FORD MOTOR COMPANY

47.

Position back the transmission vent tube and connect the retainers.

GFD144306

Courtesy of FORD MOTOR COMPANY

48.

Connect the brake booster hose.

GFD144401

Courtesy of FORD MOTOR COMPANY

49.

Connect the heater hose at the intake.
Use the General Equipment: Hose Clamp Remover/Installer

GFD144400

Courtesy of FORD MOTOR COMPANY

50.

Connect the coolant connector.
Use the General Equipment: Hose Clamp Remover/Installer

GFD144399

Courtesy of FORD MOTOR COMPANY

51.

Position the engine wire harness and connect the retainer.

GFD144398

Courtesy of FORD MOTOR COMPANY

52.

Install the BJB bracket and the bolts. Connect the wire harness retainers.
Torque: 89 lb.in (10 Nm)

GFD144397

Courtesy of FORD MOTOR COMPANY

53.

Install the bolt and connect the wire harness retainer.
Torque: 89 lb.in (10 Nm)

GFD144396

Courtesy of FORD MOTOR COMPANY

54.

Install the bolts for the A/C tubes.
Torque: 97 lb.in (11 Nm)

GFD144395

Courtesy of FORD MOTOR COMPANY

55.

Position back the BJB and install the bolt. Connect the electrical connector.
Torque: 53 lb.in (6 Nm)

GFD144394

Courtesy of FORD MOTOR COMPANY

56.

Connect the wire retainer to the BJB bracket.

GFD144393

Courtesy of FORD MOTOR COMPANY

57.

Position back the cable and connect the wire retainer. Install the nut.
Torque: 106 lb.in (12 Nm)

GFD144392

Courtesy of FORD MOTOR COMPANY

58.

Install the cable cover. Install the coolant hoses.

GFD144391

Courtesy of FORD MOTOR COMPANY

59.

Connect the electrical connectors.

GFD144390

Courtesy of FORD MOTOR COMPANY

60.

Install the degas bottle. Refer to: Degas Bottle .

61.

Connect the fuel tubes. Refer to: Quick Release Coupling .

GFD144304

Courtesy of FORD MOTOR COMPANY

62.

Install the thermostat assembly and the bolt. Connect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Torque: 17 lb.ft (23 Nm)

GFD144389

Courtesy of FORD MOTOR COMPANY

63.

Connect the coolant hoses to the thermostat assembly.
Use the General Equipment: Hose Clamp Remover/Installer

GFD144388

Courtesy of FORD MOTOR COMPANY

64.

Position back the engine wire harness and install the nut. Connect the ECT sensor electrical connector.
Torque: 89 lb.in (10 Nm)

GFD144387

Courtesy of FORD MOTOR COMPANY

65.

Connect the electrical connector and wire retainer.

GFD144386

Courtesy of FORD MOTOR COMPANY

66.

Remove the oil filler cap and install the engine appearance cover. Install the oil filler cap and position back the coolant hose.

GFD144242

Courtesy of FORD MOTOR COMPANY

67.

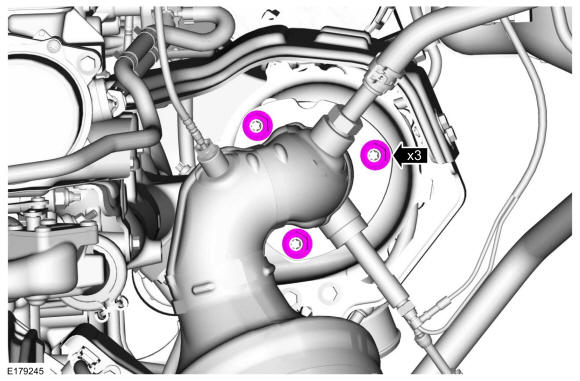

Install the catalytic converter nuts.
Torque: 30 lb.ft (40 Nm)

GFD144659

Courtesy of FORD MOTOR COMPANY

68.

Install the fuel vaporizer system glow plug. Refer to: Fuel Vaporizer System Glow Plug .

69.

Position back and connect the hose to the air cleaner.

GFD144384

Courtesy of FORD MOTOR COMPANY

70.

Install the CAC pipe.
Torque: 48 lb.in (5.4 Nm)

GFD144383

Courtesy of FORD MOTOR COMPANY

71.

Install the oil filter.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

GFD144344

Courtesy of FORD MOTOR COMPANY

72.

Fill the engine with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

73.

Install the following items:
1. Install the air cleaner outlet tube. Refer to: Air Cleaner Outlet Pipe .
2. Install the cooling module. Refer to: Cooling Module .
3. Install the accessory drive belt. Refer to: Accessory Drive Belt .

74.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

75.

Bleed the fuel system. Refer to: Fuel System Bleeding .

76.

Check the transmission fluid level. Refer to: Transmission Fluid Level Check .

77.

Start the engine and check the exhaust for leaks.
