Pinpoint Test D : B10D7:87
- D1 CHECK THE PATS (PASSIVE ANTI-THEFT SYSTEM) TRANSCEIVER VOLTAGE SUPPLY CIRCUIT FOR VOLTAGE
- Ignition OFF.
- Disconnect PATS Transceiver C252 .
- Ignition ON.
Is the voltage greater than 11 volts?
Yes GO to D3 No VERIFY the BCM fuse 59 (5A) is OK. If OK, GO to D2
If not OK, REFER to the Wiring Diagrams manual to identify the possible causes of the circuit short. - D2 CHECK THE PATS (PASSIVE ANTI-THEFT SYSTEM) TRANSCEIVER VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
- Ignition OFF.
- Disconnect BCM C2280F .
- Measure:
Positive Lead Measurement / Action Negative Lead C C252-1 C2280F-10
Is the resistance less than 3 ohms?
Yes GO to D6 No REPAIR the circuit. - D3 CHECK THE PATS (PASSIVE ANTI-THEFT SYSTEM) TRANSCEIVER CIRCUITS FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect BCM C2280C .

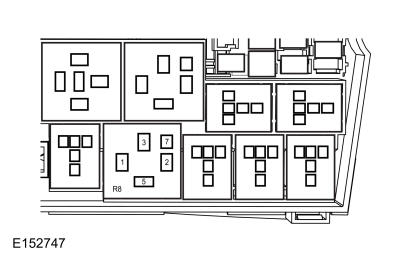

- Disconnect Ignition Relay.
- Connect a fused jumper wire:
Positive Lead Measurement / Action Negative Lead
Ignition Relay, cavity 3
Ignition Relay, cavity 5
- Measure:
Positive Lead Measurement / Action Negative Lead C C252-2 Ground C C252-3 Ground C C252-4 Ground
Is any voltage present?
Yes REMOVE the fused jumper wire. REPAIR the affected circuit. No REMOVE the fused jumper wire. GO to D4 - D4 CHECK THE PATS (PASSIVE ANTI-THEFT SYSTEM) TRANSCEIVER CIRCUITS FOR A SHORT TO GROUND
- Measure:
Positive Lead Measurement / Action Negative Lead C C252-2 Ground C C252-3 Ground C C252-4 Ground
Are the resistances greater than 10, 000 ohms?
Yes GO to D5 No REPAIR the affected circuit. - Measure:
- D5 CHECK THE PATS (PASSIVE ANTI-THEFT SYSTEM) TRANSCEIVER CIRCUITS FOR AN OPEN
- Measure:
Positive Lead Measurement / Action Negative Lead C C252-2 C2280C-30 C C252-3 C2280C-54 C C252-4 C2280C-34
Are the resistances less than 3 ohms?
Yes INSTALL a new PATS transceiver.REFER to: Passive Anti-Theft System (PATS) Transceiver . CYCLE the ignition off and then on. WAIT 10 seconds. REPEAT the BCM self-test. If DTC B10D7:87 is retrieved again, GO to D6 No REPAIR the affected circuit. - Measure:
- D6 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
- Disconnect and inspect all BCM connectors.
- Repair:
- corrosion (install new connectors or terminals, clean module pins)
- damaged or bent pins - install new terminals/pins
- pushed-out pins - install new pins as necessary
- Reconnect all the BCM connectors and make sure they seat and latch correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM.REFER to: Body Control Module (BCM) . No The system is operating correctly at this time. The concern may have been caused by module connections. Address the root cause of any connector or pin issues.
