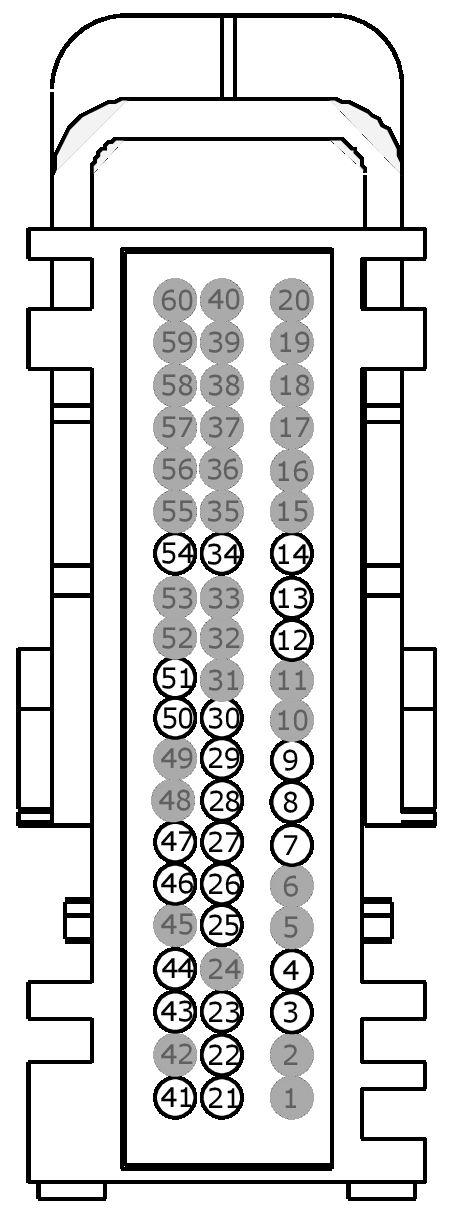

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)
Connector:C2280C
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | VMC34 (WH) | 22 | CTRL MOD. - STEERING WHEEL MODULE LIN BUS | |
| 4 | VLF25 (GN-VT) | 22 | CTRL MOD. - LIGHT SWITCH LIN BUS | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 8 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 9 | VH406 (VT-BN) | 22 | SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | CLN17 (BN) | 22 | SWITCH - IP/SWITCH ILLUMINATION | |
| 13 | CPL87 (BN) | 20 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER | |
| 14 | CLN17 (BN) | 22 | SWITCH - IP/SWITCH ILLUMINATION | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | CLN38 (BU-WH) | 20 | CTRL MOD. - FOOTWELL (STEP IN) LAMP LEFT | |
| 22 | CBP27 (GN-BN) | 22 | FUSE - 27 OR CIRCUIT BREAKER | |
| 23 | VH414 (GN-BU) | 22 | SENSOR - INCAR TEMP. | |
| 24 | * | * | Not Used | |
| 25 | CMC25 (WH-VT) | 22 | SWITCH - PARKING BRAKE | |
| 26 | CPL43 (VT-GY) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK | |
| 27 | CLS32 (BN-YE) | 22 | SWITCH - HAZARD | SYNC GEN 1 |
| 28 | CBP27 (RD) | 20 | FUSE - 27 OR CIRCUIT BREAKER | |
| 29 | RH107 (BK-WH) | 22 | CTRL MOD. - AMBIENT TEMP. SENSOR | |
| 30 | RRT25 (VT-WH) | 22 | CTRL MOD. - TRANSCEIVER PASSIVE ANTI THEFT - | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | VRT23 (VT-GY) | 22 | TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | * | * | Not Used | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | CET52 (GN) | 20 | SWITCH - TRANSMISSION PARK DETECT | |
| 42 | * | * | Not Used | |
| 43 | CDC32 (BN-YE) | 18 | SWITCH - IGNITION # RUN | |
| 44 | CDC33 (VT-GN) | 22 | SWITCH - IGNITION # RUN; ACCESSORY | |
| 45 | * | * | Not Used | |
| 46 | CDC30 (BU-GY) | 22 | SWITCH - IGNITION # KEY IN | |
| 47 | CRW10 (BU-GN) | 22 | SWITCH - FRONT WIPER LOW | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | CRH03 (BN) | 22 | CTRL MOD. - STEERING WHEEL # HORN | |
| 51 | VE225 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | |
| 52 | * | * | Not Used | |
| 53 | * | * | Not Used | |
| 54 | VRT24 (YE-OG) | 22 | TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL | |
| 55 | * | * | Not Used | |
| 56 | * | * | Not Used | |
| 57 | * | * | Not Used | |
| 58 | * | * | Not Used | |
| 59 | * | * | Not Used | |
| 60 | * | * | Not Used |
