Pinpoint Test L: The AUTOLAMPS Are On Continuously

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. L1 CHECK THE HEADLAMP SWITCH OUTPUT
    • Key in OFF position.
    • Connect the diagnostic tool.
    • Key in ON position.
    • Monitor the instrument cluster headlamp switch status PID while rotating the headlamp switch knob from the autolamps ON to OFF positions.
    • Does the PID match with the headlamp switch position?
    1. Yes  : GO to  L4.
    2. No  : GO to L2.
  2. L2 CHECK THE HEADLAMP SWITCH
    • Key in OFF position.
    • Disconnect: Headlamp Switch C205.
    • Carry out the headlamp switch component test.

      Refer to COMPONENT TESTING .

    • Is the headlamp switch OK?
    1. Yes  : GO to L3.
    2. No  : INSTALL a new headlamp switch. REFER to HEADLAMP SWITCH . TEST the system for normal operation.
  3. L3 CHECK CIRCUIT 10-LE47 (GY/OG) FOR SHORT TO GROUND
    • Disconnect: Instrument Cluster C220c.
    • Measure the resistance between the instrument cluster C220c-18, circuit 10-LE47 (GY/OG), harness side and ground.

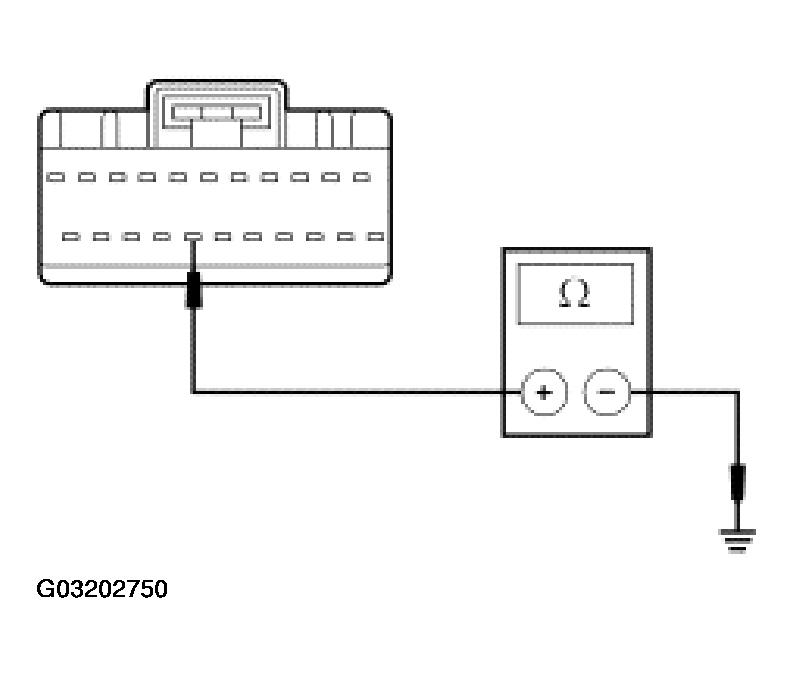

      Fig 1: Measuring Resistance Between Instrument Cluster C220C-18, Circuit 10-Le47 (GY/OG), Harness Side And Ground
      G03202750Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes  : REPAIR the circuit. TEST the system for normal operation.
    2. No  : GO to  L7.
  4. L4 CHECK THE OPERATION OF THE PHOTOCELL SENSOR
    • Monitor the instrument cluster photocell status PID while covering and then illuminating the photocell.
    • Does the PID percentage change with the sensor covered and then illuminated?
    1. Yes  : GO to  L7.
    2. No  : GO to L5.
  5. L5 CHECK THE PHOTOCELL
    • Key in OFF position.
    • Disconnect: Photocell C286.
    • Key in ON position.
    • Monitor the instrument cluster photocell status PID while connecting and then disconnecting a fused (5A) jumper wire between the photocell C286-2, circuit 8-LE42 (WH/BU), harness side and the photocell C286-5, circuit 31-LE42 (BK/OG), harness side.

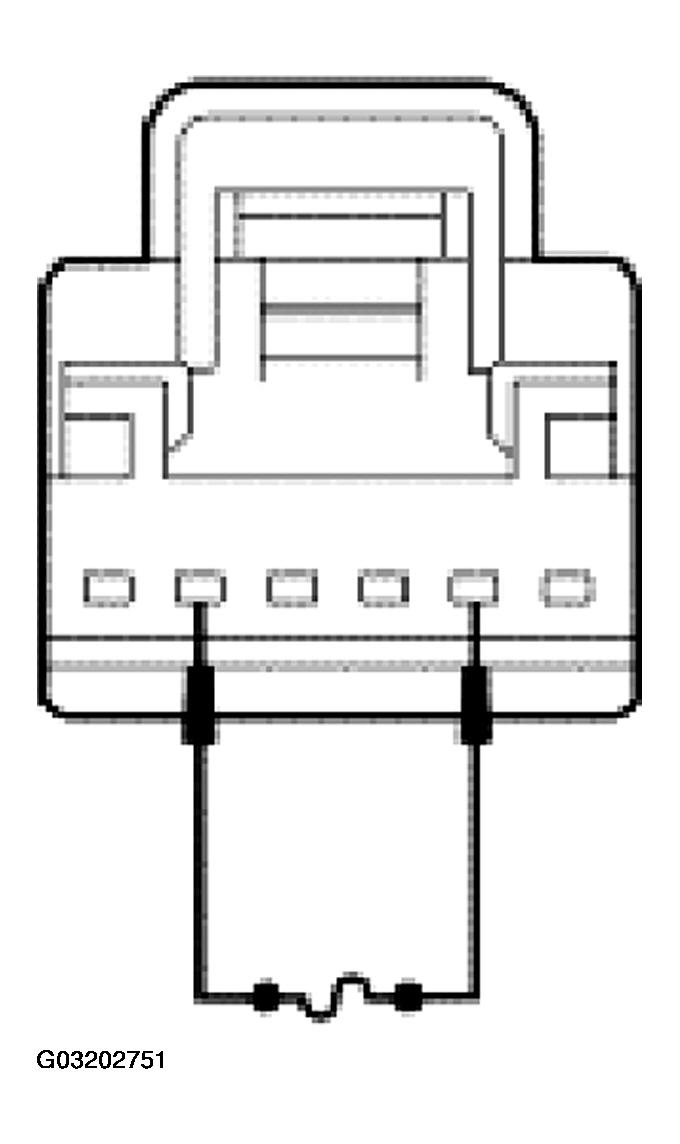

      Fig 2: Checking Photocell L5
      G03202751Courtesy of FORD MOTOR CO.
    • Does the PID percentage change with the jumper wire connected and then disconnected?
    1. Yes  : INSTALL a new photocell. REFER to PHOTOCELL . TEST the system for normal operation
    2. No  : GO to L6.
  6. L6 CHECK CIRCUIT 8-LE42 (WH/BU) FOR SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: Instrument Cluster C220a.
    • Measure the resistance between the instrument cluster C220a-19, circuit 8-LE42 (WH/BU), harness side and ground.

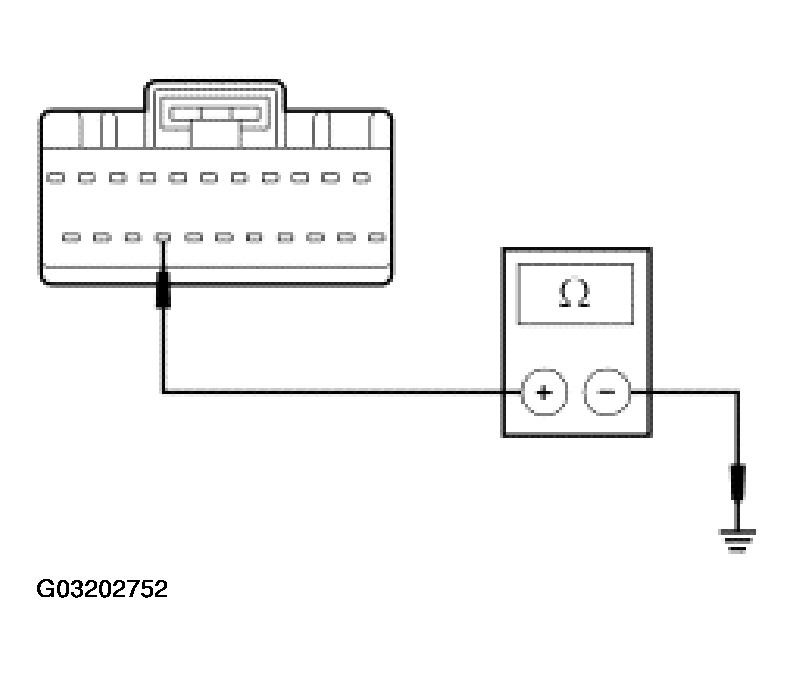

      Fig 3: Measuring Resistance Between Instrument Cluster C220A-19, Circuit 8-LE42 (WH/BU), Harness Side And Ground
      G03202752Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes  : REPAIR the circuit. TEST the system for normal operation.
    2. No  : GO to L7.
  7. L7 CHECK FOR INSTRUMENT CLUSTER OPERATION
    • Key in OFF position.
    • Disconnect all instrument cluster connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all instrument cluster connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes  : INSTALL a new instrument cluster. Refer to INFORMATION, GAUGES & WARNING DEVICES . TEST the system for normal operation.
    2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. REPEAT the self-test.
