Headlamp Switch

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

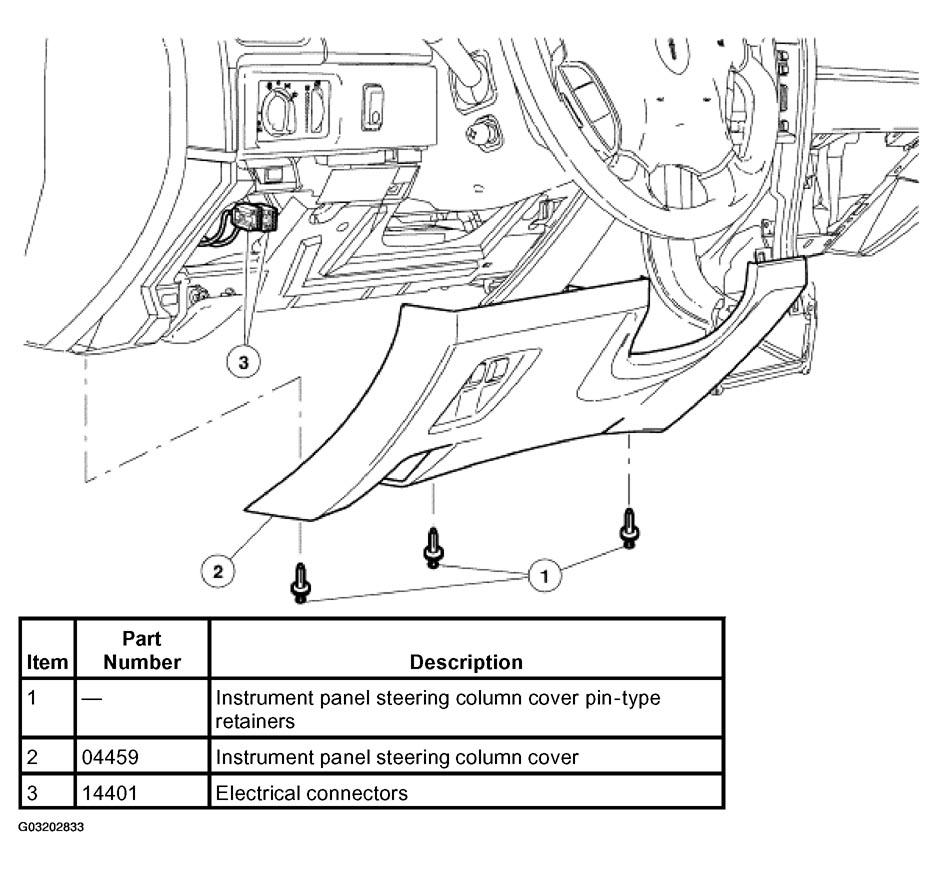

  1. View 1 of 2. Remove the components in the order indicated in the following illustration and table.
    Fig 1: Removing Components In Order (1 Of 2)
    G03202833Courtesy of FORD MOTOR CO.

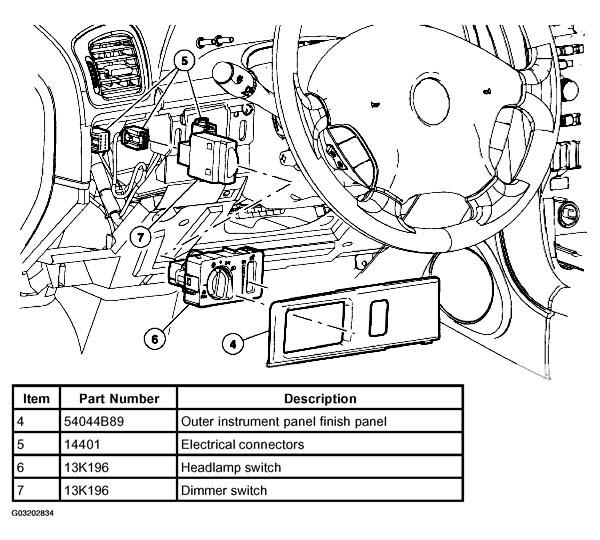

  2. View 2 of 2. Remove the components in the order indicated in the following illustration and table.
    Fig 2: Removing Components In Order (2 Of 2)
    G03202834Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
