Removal And Installation: Photocell

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH and RH windshield side garnish mouldings. For additional information, Refer to INTERIOR TRIM .
  2. Remove the components in the order indicated in the following illustration and table.

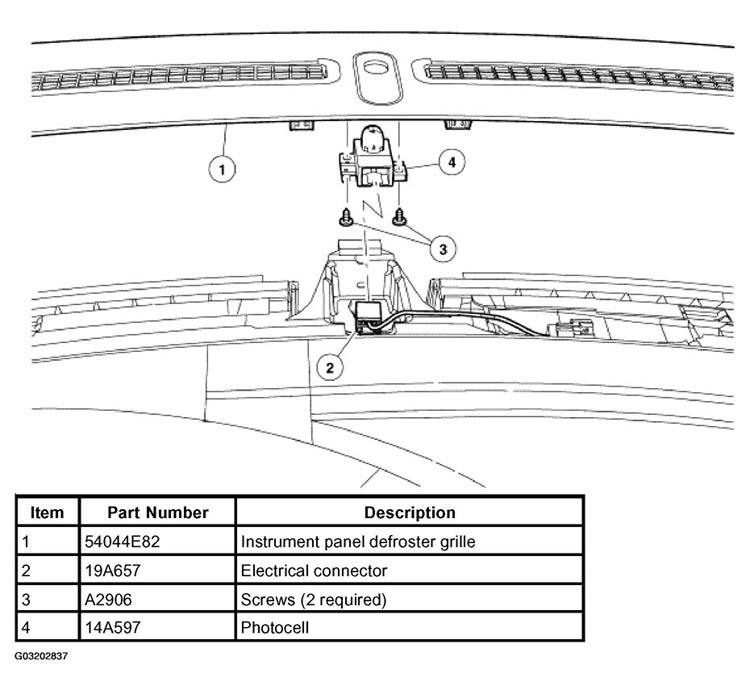

    Fig 1: Removing Components In Order
    G03202837Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure
