Bezel, Instrument Panel, Heating And A/C: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .
3. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
4. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
5. Remove the Media Hub. Refer to MEDIA HUB, REMOVAL .

   Courtesy of CHRYSLER GROUP, LLC

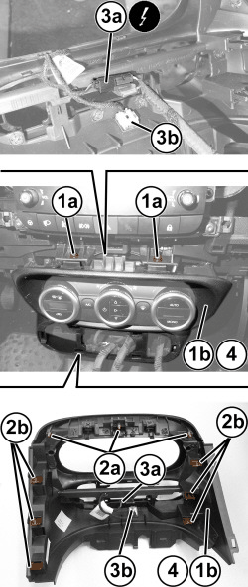

6. Remove the two upper fasteners (1a) from the HVAC control bezel.
7. Remove the HVAC bezel (1b) by releasing the inner retainers (2a) and (2b).
8. Disconnect the wiring harness connectors (3a) from the courtesy light (3b) after releasing it from its position.
9. Remove the HVAC control bezel (1b) from the vehicle.
