Console, Floor: Removal

Disconnect and isolate the negative battery cable.
Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Use a trim stick or equivalent to remove both left and right console side covers (1).

Courtesy of CHRYSLER GROUP, LLC

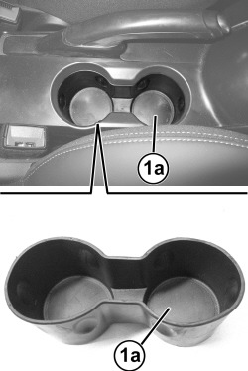

Remove the cup holder (1a) from the console.

Courtesy of CHRYSLER GROUP, LLC

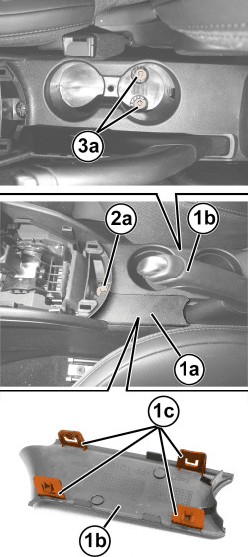

Remove the trim (1a) from the parking brake (1b) releasing the inner retainer clips (1c).
Remove the screw in the shifter area (2a).
Remove the screws in the cup holder (3a).

Courtesy of CHRYSLER GROUP, LLC
Remove front screws (1b) from both sides of the console (1a).

Courtesy of CHRYSLER GROUP, LLC
Use a trim stick or equivalent and remove the rear console cover (1a).
Disconnect the USB wire harness connector (2a).

Courtesy of CHRYSLER GROUP, LLC

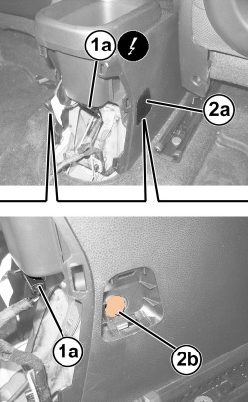

Disconnect the wire harness connector from console (1a).
Remove the rear covers (2a) from both sides of the console and remove the mounting screws (2b).
Lift the floor console and remove from the vehicle.

Courtesy of CHRYSLER GROUP, LLC
If console mounting bracket is necessary to replace disengage wire harness (1b) from retainers (1a).
Remove nuts (2a) and remove mounting bracket (2b).
