Media Hub: Removal

  1. Disconnect and isolate the negative battery cable.

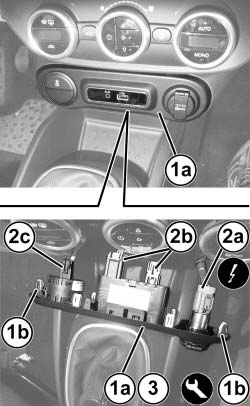

    GC0184227Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bezel (1a) using the appropriate tool.
  3. Disconnect the electrical connectors (2a, 2b, 2c).

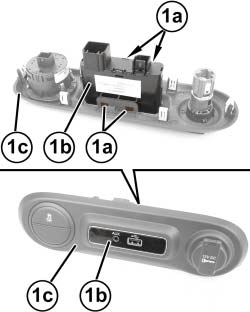

    GC0184308Courtesy of CHRYSLER GROUP, LLC
  4. Remove the Media Hub (1b) from the bezel (1c) by compressing the side retainers (1a).
