Bezel, Instrument Panel, Center: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove instrument cluster. Refer to REMOVAL .
    GC0184304Courtesy of CHRYSLER GROUP, LLC

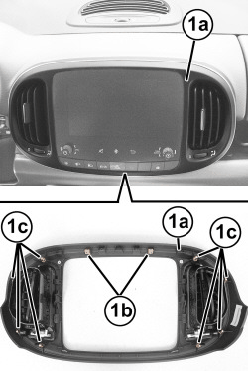

  3. Using a Trim Stick or equivalent, release the center instrument panel bezel (1a) releasing the inner retaining clips (1b) and (1c).
  4. Remove the center instrument panel bezel (1a) from the vehicle.
    GC0184207Courtesy of CHRYSLER GROUP, LLC

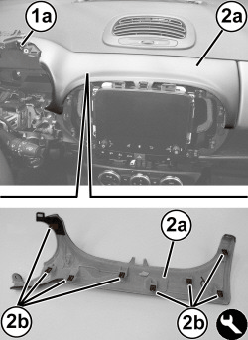

  5. Remove the screw (1a) from the upper trim.
  6. Using a trim stick remove the upper trim (2a), releasing the inner retainers (2b).
