Pressurized Coolant Bottle: Notes
WARNING: This page is about a different car, the 2024 RAM ProMaster EV. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Remove the left and right side shields. Refer to SIDE UNDERBODY SHIELDS BEV .
- Drain the cooling system. Refer to DRAINING - LOW TEMP/BATTERY COOLING SYSTEM .
- Disconnect the coolant hoses from the pressurized coolant bottle.

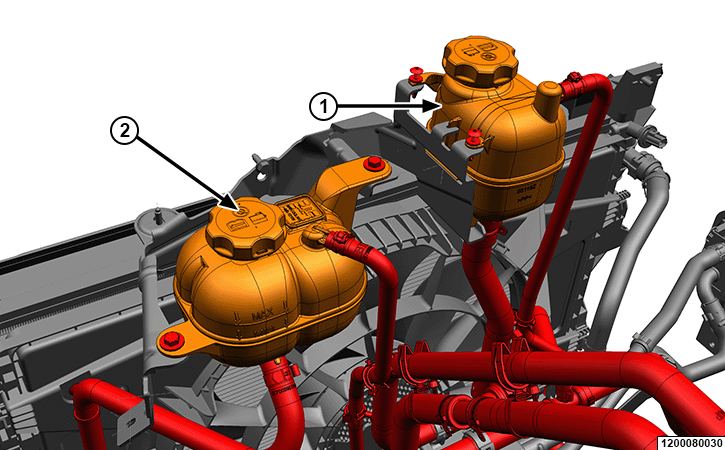

1 - Pressurized Coolant Bottle - Electric Coolant 2 - Pressurized Coolant Bottle - Low Pressure - Remove the fasteners and the pressurized coolant bottle from the vehicle.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Fill the battery cooling system. Refer to FILLING - LOW TEMP/BATTERY COOLING SYSTEM .
- Check the battery cooling system for leaks. Refer to BATTERY COOLING, DIAGNOSIS AND TESTING .
