Side Underbody Shields BEV

REMOVAL

1. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
2. Remove the side splash shield fasteners.

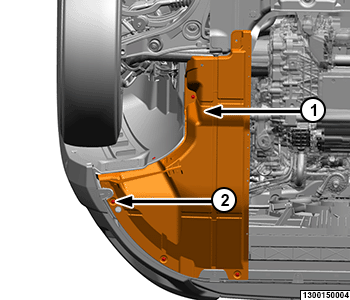

   NOTE: Left side shown in illustration, right side similar.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Side Splash Shield

   2 - Side Splash Shield Fastener

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
