With Full Shelf

Courtesy of CHRYSLER GROUP, LLC

NOTE:

In the event the headliner is damaged or creased during removal, it will need to be replaced with a new headliner.

Remove the fasteners (2) and the grab handles (3).
Remove the left A-pillar trim. Refer to PANEL, A-PILLAR TRIM, REMOVAL .
Remove the left upper B-pillar trim. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (2) and both left and right sun visors (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (1) and both left and right sun visor supports (2).
Remove the dome lamp and disconnect the electrical connector. Refer to LAMP, DOME, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Using a trim stick or equivalent, release the overhead switch pod bezel (1) and disconnect the wire harness connectors (2). Remove the switch pod bezel (1) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Through the dome lamp opening, remove the fasteners (1) securing the lower headliner bracket.

Courtesy of CHRYSLER GROUP, LLC
Remove the push fasteners (1) holding the lower headliner (2) in place.

Courtesy of CHRYSLER GROUP, LLC

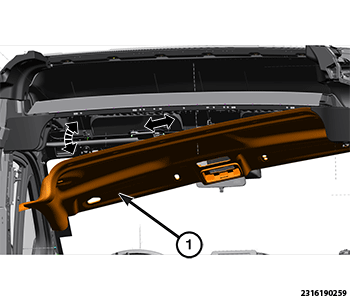

Tilt the left side of the lower headliner (1) and remove from the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Remove the front bolts (2) from the upper shelf (1).

Courtesy of CHRYSLER GROUP, LLC

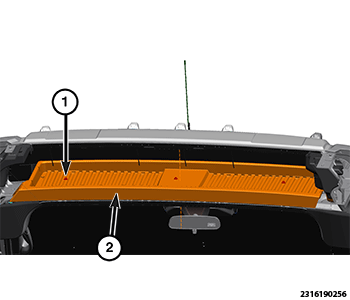

Remove the rear nuts (1) from the upper shelf (2).

Courtesy of CHRYSLER GROUP, LLC

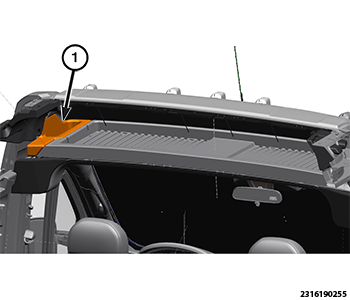

Remove the fillers (1) from both sides of the upper shelf.

Courtesy of CHRYSLER GROUP, LLC

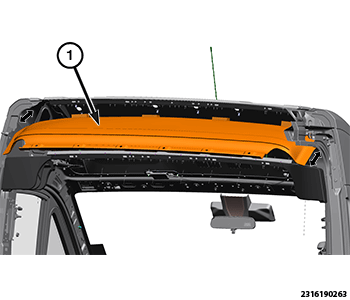

Slide the upper shelf (1) rearward and remove from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

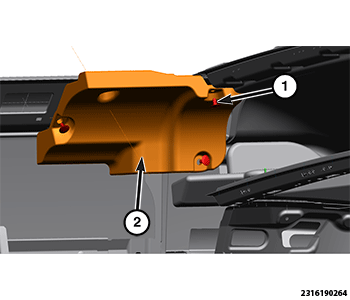

Remove the push-pins (1) and remove the left insulator (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the push-pins (1) and remove the right insulator (2).

Courtesy of CHRYSLER GROUP, LLC

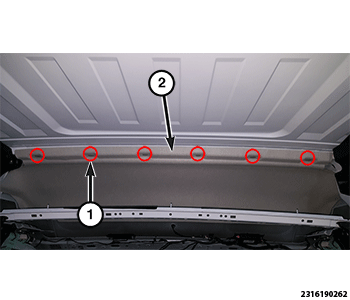

Remove the push-pins (1) from the rear of the upper headliner (2).

Courtesy of CHRYSLER GROUP, LLC

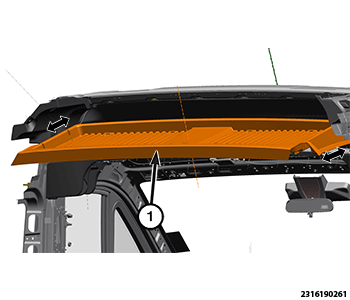

Carefully slide the upper headliner (1) rearward to remove it from the vehicle.
