Panel, A-Pillar Trim: Removal

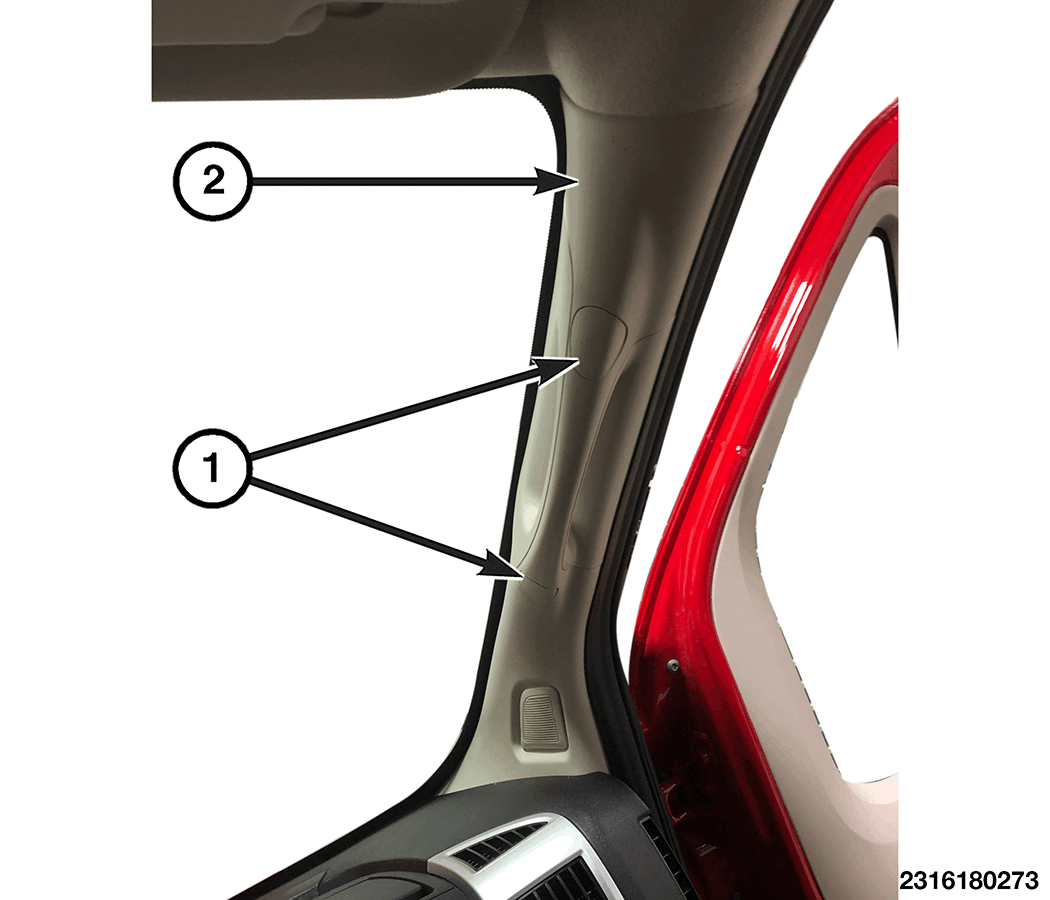

GC0203963Courtesy of CHRYSLER GROUP, LLC
  1. If equipped, remove the fastener covers (1) then remove the fasteners securing the A-pillar trim (2).

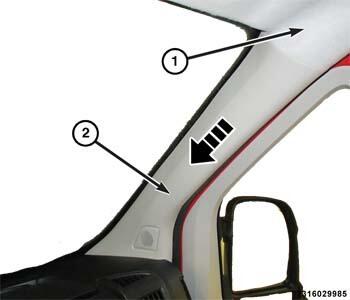

    GC0160331Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick or equivalent, gently unclip the A-pillar trim (2) loose from the body, do not try to remove.
  3. Push the A-pillar trim down, in the direction shown in illustration, and disengage the top of the A-pillar trim from the headliner (1).
  4. Position the A-pillar trim to disengage the tether clip and disconnect the speaker electrical connector.
