Panel, B-Pillar Trim, Upper: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the fasteners (2) and remove the lower B-pillar trim (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (1) for the outboard seat belt lower anchor.

Courtesy of CHRYSLER GROUP, LLC
Release and remove the knob from the seat belt height adjuster on the upper B-pillar.
Remove the nut (2) that fastens the seat belt turning loop (1) to the height adjuster.
Remove the seat belt turning loop from the height adjuster.

Courtesy of CHRYSLER GROUP, LLC

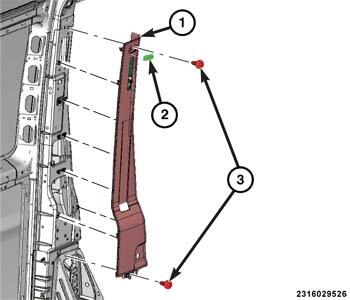

Remove the fastener cover (2) and the fasteners (3).
Using a trim stick or equivalent, remove the upper B-pillar trim (1).
