Cylinder Head: Removal: Left

WARNING: This page is about a different variant/trim than selected.

Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
If equipped, remove the skid plate. Refer to REMOVAL
Drain the cooling system. Refer to DRAINING
Drain the engine oil. Refer to STANDARD PROCEDURE - ENGINE OIL AND FILTER CHANGE .
Remove the upper and lower intake manifolds and insulator. Refer to MANIFOLD, INTAKE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

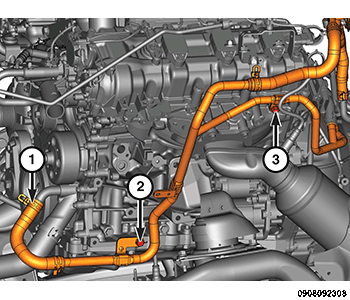

Remove the heater core return hose from the water pump bypass (1).
Remove the retaining bolts from the engine block (2) and cylinder head (3).
Remove the A/C compressor and position aside. Refer to 3.6L ENGINE

Courtesy of CHRYSLER GROUP, LLC

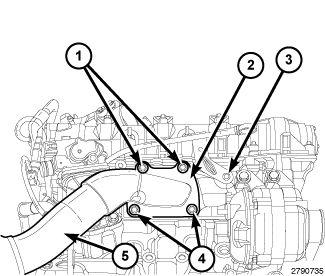

Remove the upper fasteners (1) securing the left catalytic converter to the cylinder head.
Loosen the lower fasteners (4) and position the catalytic converter aside. Refer to 3.6L
Disengage the injection/ignition harness connector and the oxygen sensor harness connector from the retainer bracket on the rear of the left cylinder head.
Remove the spark plugs. Refer to 3.6L
Disengage the wire harness trough at the rear of the cylinder head.
Remove the cylinder head covers and engine timing cover. For Timing Head Cover, Refer to REMOVAL . For Timing Cover removal, Refer to REMOVAL
NOTE:
Take this opportunity to measure timing chain wear. Refer to MEASURING TIMING CHAIN WEAR
Lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
When aligning timing marks, always rotate engine by turning the crankshaft. Failure to do so will result in valve or piston damage.
Rotate the crankshaft CW to place the number one piston at TDC on the exhaust stroke by aligning the dimple (7) on the crankshaft with the block/bearing cap junction (6). The left side cam phaser arrows (4) should point toward each other and be parallel to the valve cover sealing surface (3). The right side cam phaser arrows (5) should point away from each other and the scribe lines (1) should be parallel to the valve cover sealing surface (2).
CAUTION:
Always reinstall timing chains so that they maintain the same direction of rotation. Inverting a previously run chain on a previously run sprocket will result in excessive wear to both the chain and sprocket.
Mark the direction of rotation on the timing chain using a paint pen or equivalent to aid in reassembly.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
When the timing chains are removed and the cylinder heads are still installed, DO NOT rotate the camshafts or crankshaft without first locating the proper crankshaft position. Failure to do so will result in valve or piston damage.
Reset the LH cam chain tensioner by lifting the pawl (1), pushing back the piston (2) and installing Tensioner Pin (special tool #8514A, Pins, Tensioner) (3). Refer to RESETTING LEFT CAM CHAIN TENSIONER
Remove the left side camshafts. Refer to CAMSHAFT, ENGINE, REMOVAL .
NOTE:
If the rocker arms are to be reused, identify their positions so that they can be reassembled into their original locations.
Remove the rocker arms. Refer to REMOVAL
NOTE:
If the hydraulic lifters are to be reused, identify their positions so that they can be reassembled into their original locations.
If required, remove the hydraulic lifters. Refer to LIFTER(S), HYDRAULIC, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the LH cam chain tensioner arm (1).
Remove two bolts (6) and the LH cam chain tensioner (5).
Remove two bolts (4) and the LH cam chain guide (2).

Fig 1: Cylinder Head (LH) Bolt Loosening Sequence
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
DO NOT use an impact gun or any type of power tools to break loose or remove the head bolts. This can cause the threads to pull out of the block with the bolts.
Using the sequence shown, remove the cylinder head retaining bolts.
Position the left cylinder head slightly forward and remove the wire harness retainers at the rear of the cylinder head.
Disconnect the ignition capacitor wire harness connector.

Courtesy of CHRYSLER GROUP, LLC

WARNING:
The multi-layered steel head gaskets have very sharp edges that could cause personal injury if not handled carefully.

NOTE:

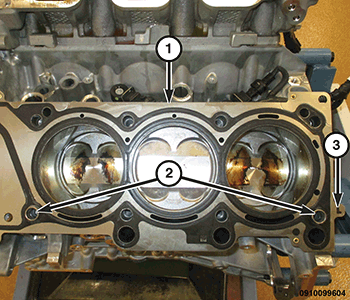

The head gasket (1) crimps the locating dowels (2) and the dowels may pull out of the engine block when the head gasket is removed.
Remove the cylinder head and gasket (1). Discard the gasket.
CAUTION:
Do not lay the cylinder head on its gasket sealing surface, due to the design of the cylinder head gasket, any distortion to the cylinder head sealing surface may prevent the gasket from properly sealing resulting in leaks.
