Plate, Skid, Front: Removal

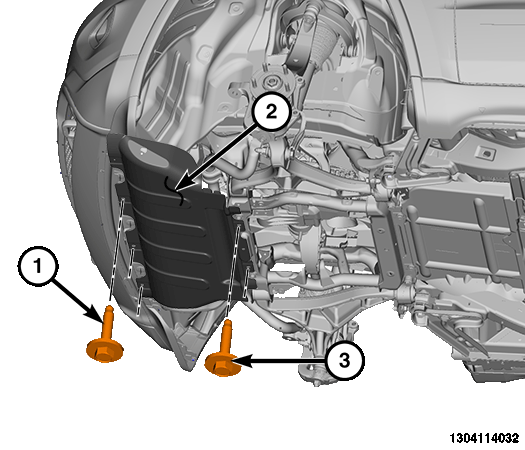

GC0175253Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Remove the front suspension skid plate, Refer to PLATE, SKID, TRANSFER CASE, REMOVAL .
  3. Remove the front (1) and rear (3) bolts.
  4. Remove the front skid plate (2).
