Panel, Instrument: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0089015Courtesy of CHRYSLER GROUP, LLC
  1. With the help of an assistant, position the instrument panel into the vehicle and install the right side guide pin and the left side guide hook to the sides of the cowl panel.
  2. Install the fence line bolts on top of I/P and tighten the bolts to 12 N.m (9 ft. lbs).
  3. Install the fence line bolt acess covers (1).
  4. Connect the ORC Module electrical connector and position the wiring under the carpet.
  5. Install the ground eyelet fastener at ORC/YAWL Modules and position the carpet back as necessary.
  6. Install the three bolts (1) that secure the right side instrument panel bracket to the cowl panel.
  7. Tighten the bolts to 12 N.m (9 ft. lbs.).
    GC0154531Courtesy of CHRYSLER GROUP, LLC
  8. Connect the coaxial cable connectors (2) to the antenna coaxial cable connectors (1) located on the right side of the cowl panel.
    GC0083757Courtesy of CHRYSLER GROUP, LLC
  9. Connect the five instrument panel wire harness connectors to the two body wire harness connectors (1) located on the right side of the cowl panel (2).
    GC0083756Courtesy of CHRYSLER GROUP, LLC
  10. Install the glove box to the instrument panel. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
  11. Install the right side hush panel.
  12. Install the two bolts (1) that secure the instrument panel to the center of the floor panel.
  13. Tighten the bolts to 12 N.m (9 ft. lbs.).
  14. Install the brake sled to I/P bolts.
  15. Install the floor console, if equipped. Refer to INSTALLATION .
    GC0089025Courtesy of CHRYSLER GROUP, LLC
  16. Install the three bolts that secure the left side of the instrument panel to the dash panel.
  17. Tighten the bolts to 12 N.m. (9 ft. lbs.).
    GC0089024Courtesy of CHRYSLER GROUP, LLC
  18. Connect the headliner wire harness connector (2) located at the A-pillar and secure the harness push pin (1) fully. Repeat procedure for the right side of the instrument panel.
    GC0154604Courtesy of CHRYSLER GROUP, LLC
  19. Install the left instrument panel slide cover (1) fully engaging the retainer clips. Repeat procedure for the right instrument panel side cover.
    GC0089023Courtesy of CHRYSLER GROUP, LLC
  20. Install the left and right A-pillar trim panels. Refer to INSTALLATION .

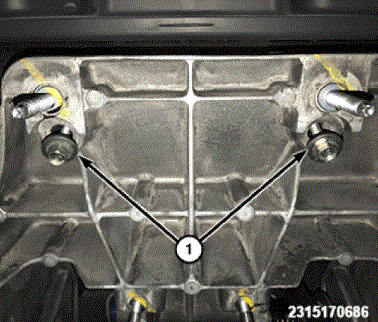

  21. Install the steering column bracket bolts (1) and tighten to the proper SPECIFICATIONS .
  22. Install the steering column as necessary. Refer to INSTALLATION .
    G00673986Courtesy of CHRYSLER GROUP, LLC
  23. Install the manual park release lever (2) and install the bolts (1). Tighten the bolts securely.
    GC0154525Courtesy of CHRYSLER GROUP, LLC
  24. Install the trim panel (1) covering the manual park release lever to the instrument panel and seat fully.
  25. Install the hood release lever. Refer to INSTALLATION .
    GC0154378Courtesy of CHRYSLER GROUP, LLC
  26. Connect the park brake release lever link (2).
    GC0154584Courtesy of CHRYSLER GROUP, LLC
  27. Connect the instrument panel wire harness connector (2) located above the brake pedal to the bulkhead wire harness connector (1).
  28. Install the steering column opening cover. Refer to INSTALLATION .
    GC0089022Courtesy of CHRYSLER GROUP, LLC
  29. Install the left and right cowl trim panels. Refer to INSTALLATION .
  30. Install the front seat assembly. Refer to INSTALLATION .
  31. Reconnect the negative battery cable.
