Glove Box, Instrument Panel: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

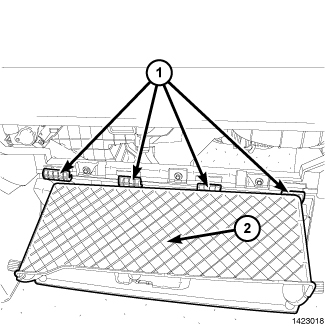

GC0086797Courtesy of CHRYSLER GROUP, LLC
  1. Engage the hinges (1) of the glove box (2) to the instrument panel.
    GC0086796Courtesy of CHRYSLER GROUP, LLC
  2. Press downward on the back edge of the glove box (2) and raise the glove box past the two stops (1).

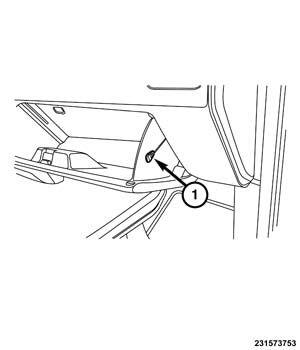

    GC0154579Courtesy of CHRYSLER GROUP, LLC
  3. Connect the damper string (1).
  4. Close the glove box.
