Cable, Hood Release: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

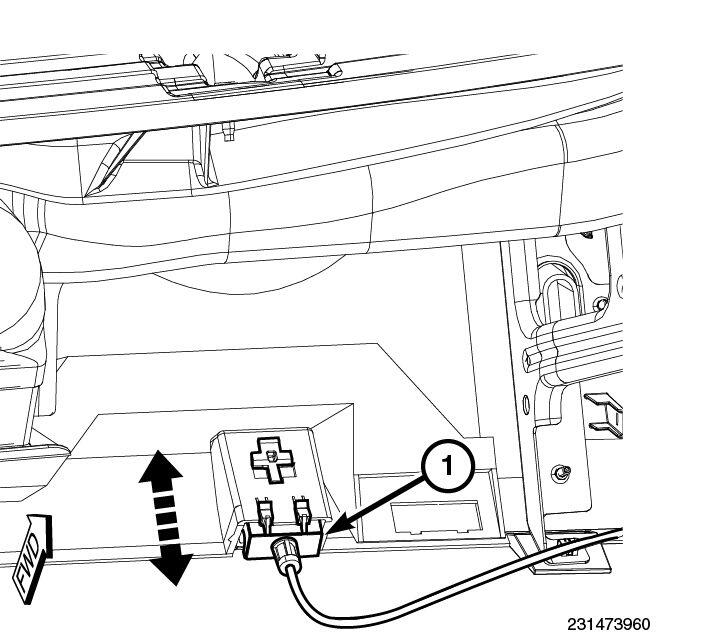

- Position the handle (1) and align the clips to the instrument panel feature location.
- Press handle to seat the clips to the instrument panel.
- Route the latch end of hood latch release cable tube through the dash panel and into the engine compartment. Feed the entire length of the cable through the dash panel.
- Press the grommet (1) into the hole in the dash panel by hand until fully seated.
- Route the cable along the fender rail and to the outboard and front of the vertical support post and seat the mounting clips (2) fully.
- Route cable (3) through the front end module and on to the latch (5).
- Align and insert end of cable (1) to the mechanism on the latch (5).
- Press the collar (2) into the hole and snap into place.
- Seat the mounting clips (4) fully.
