DESCRIPTION

Courtesy of CHRYSLER GROUP, LLC

The front lighting is comprised of several different components. Those components are:

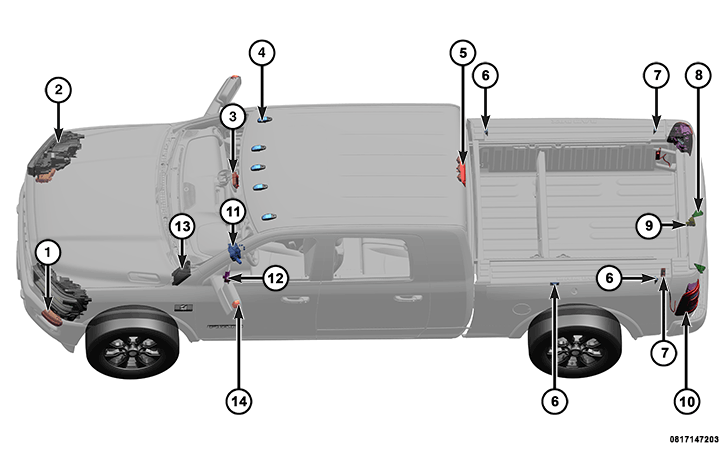

COMPONENT INDEX

1.	Refer to FOG LAMPS . Round Halogen Fog Lamps - Packaged with quad halogen headlamps Rectangular Light Emitting Diode (LED) Fog Lamps - Packaged with mid and premium headlamps.
2.	Refer to FRONT HEADLAMPS . Base and Mid-Level Headlamps - Quad LED reflectors, incandescent park/turn, LED side marker, DRL ON/OFF through the radio Premium Level Headlamps - LED headlamp modules, LED turn, LED DRL and park, LED side market, AFLS, DRL ON/OFF through the radio
3.	Refer to DRIVER ASSISTANCE SYSTEM MODULE (DASM) .
4.	Refer to CLEARANCE LAMPS - LED.
5.	Refer to CENTER HIGH MOUNTED STOP LAMP (CHMSL) - LED with camera.
6.	Refer to RAM BOX LAMPS .
7.	Refer to CARGO/BED LAMPS .
8.	Refer to LICENSE PLATE LAMPS .
9.	Refer to TRAILER TOW CONNECTOR .
10	Refer to REAR TAIL LAMPS . Base - Incandescent Optional - LED with LED tail lamp out detection Optional LED with Blind Spot Module (BSM)
11.	Refer to STEERING COLUMN CONTROL MODULE (SCCM) .
12.	Refer to HEADLAMP SWITCH .
13.	Refer to BODY CONTROL MODULE (BCM) .
14.	Refer to MIRROR TURN SIGNAL LAMPS .
-	Refer to ADDITIONAL COMPONENTS INDEX .
-	Refer to FEATURES INDEX .FEATURES INDEX .

OPERATION

Other components of the exterior lamps and lighting system can include the following components:
