Front Seat Back Cushion Foam/Cover: Removal

1. Remove front seat headrest and sleeves. (Refer to BODY/SEATS/HEADREST - REMOVAL) .
2. Remove front seat. (Refer to BODY/SEATS/FRONT SEAT - REMOVAL) .
3. Remove front seat back from seat assembly. (Refer to BODY/SEATS/FRONT SEAT BACK - REMOVAL) .
4. Remove front seat outer trim ring panel, if equipped. See Fig 1.
5. Disengage seat back cover J-straps attaching to front seat back frame. See Fig 2.
6. Remove front seat back foam/cover from front seat back frame
7. Separate front seat back cushion foam from seat cover. See Fig 3.

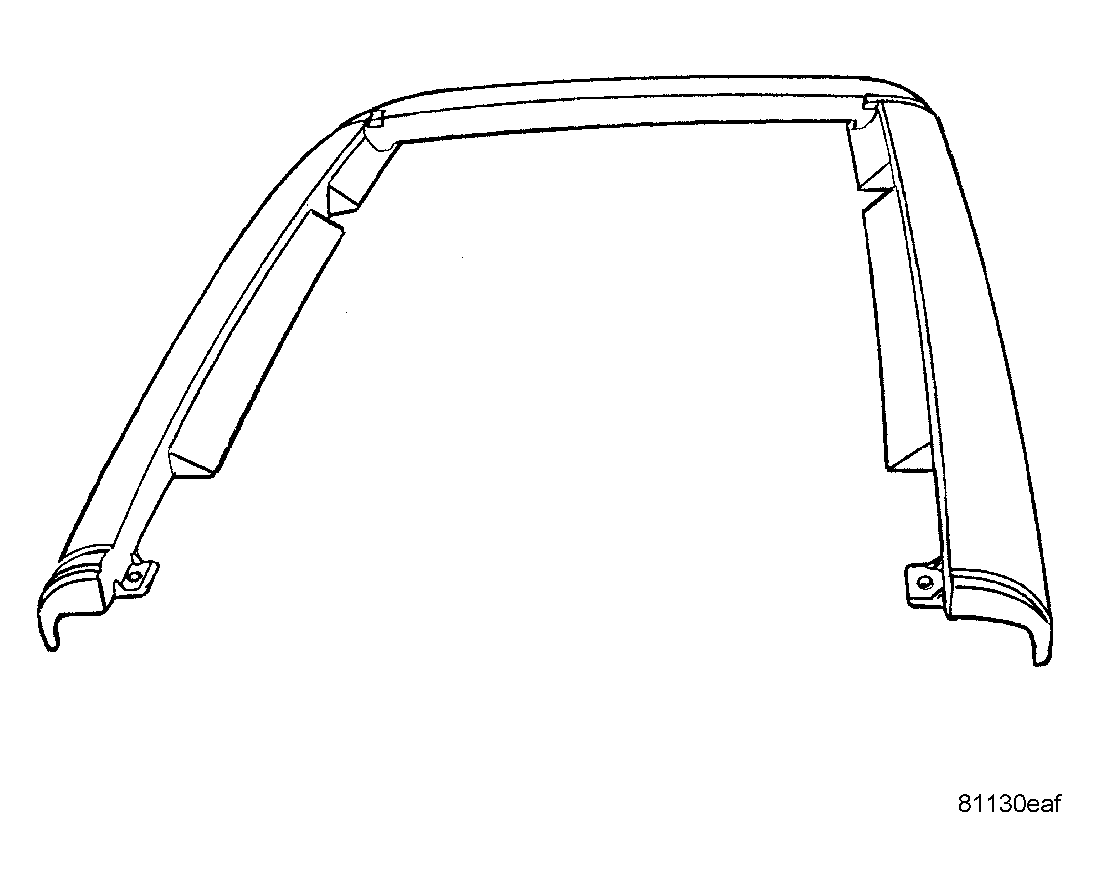

Fig 1: FRONT SEAT OUTER TRIM RING PANEL

Courtesy of DAIMLERCHRYSLER CORP.

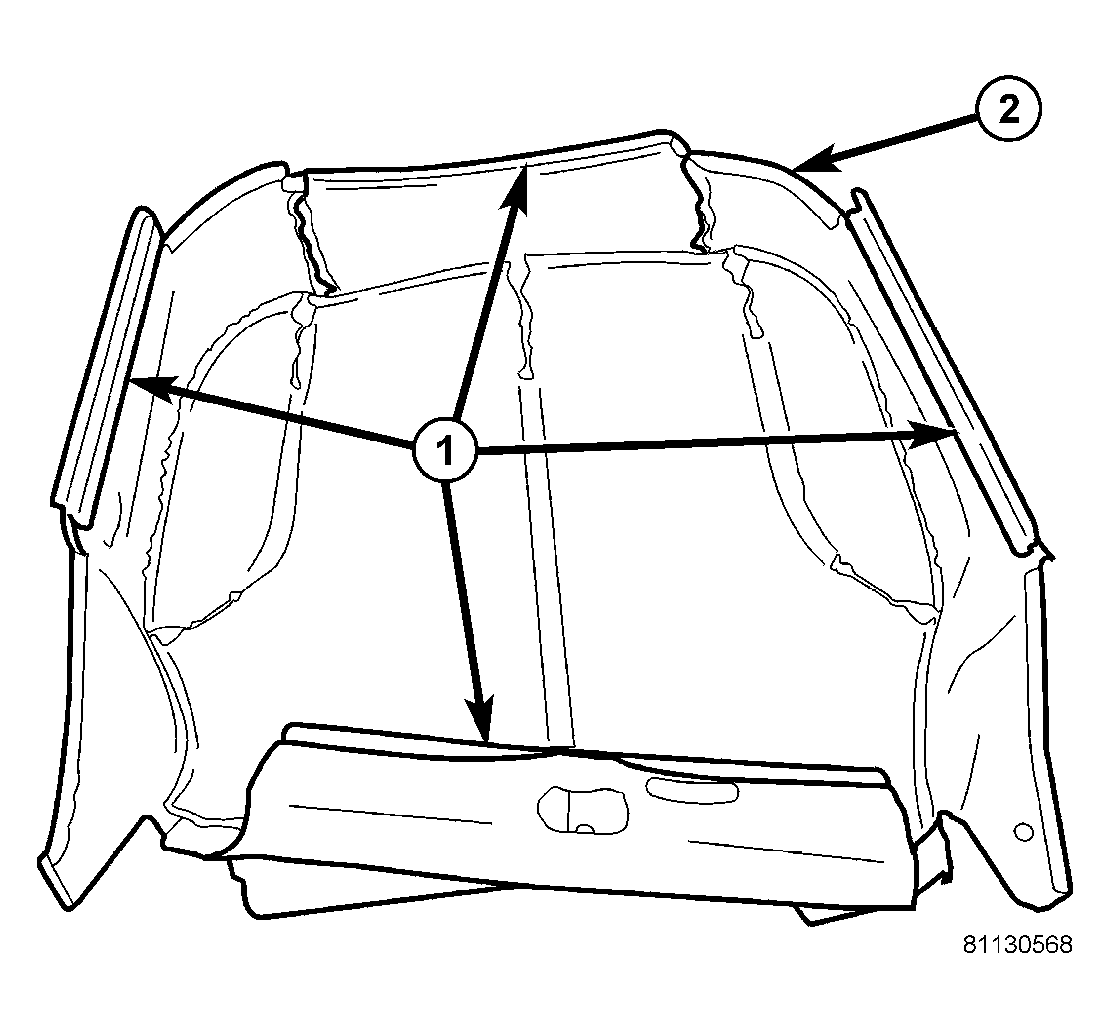

Fig 2: SEAT BACK COVER

Courtesy of DAIMLERCHRYSLER CORP.

1 - J-STRAPS

2 - FRONT SEAT BACK PANEL

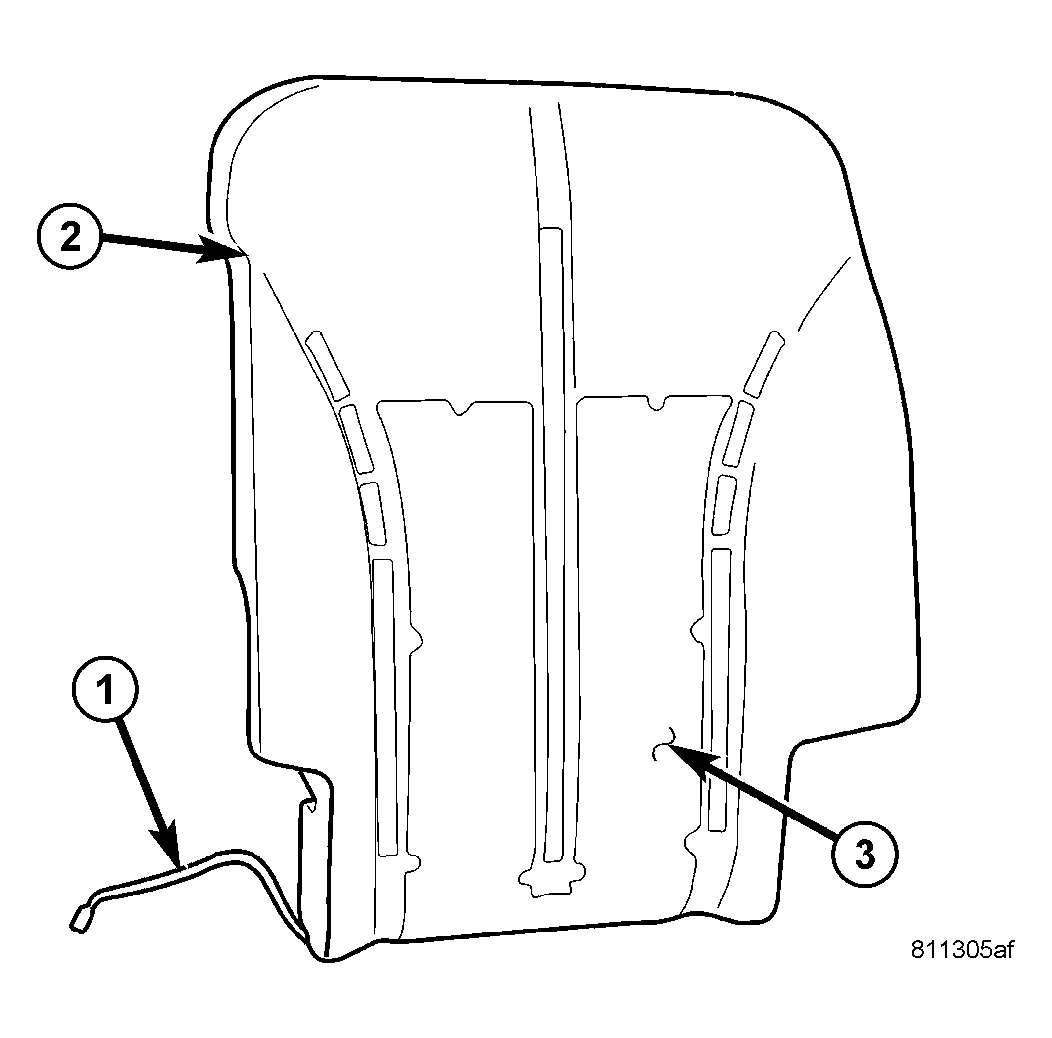

Fig 3: FRONT SEAT BACK CUSHION

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEATED SEAT BACK WIRE HARNESS

2 - SEAT BACK CUSHION

3 - HEATED ELEMENT
