Front Seat Back: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove seat from vehicle. (Refer to BODY/SEATS/FRONT SEAT - REMOVAL) .
  3. Remove the armrest. (Refer to BODY/SEATS/SEAT ARMREST - REMOVAL) .
  4. Remove front seat shields. (Refer to BODY/SEATS/FRONT SHIELDS - REMOVAL) .
  5. Remove front seat inner panel. (Refer to BODY/SEATS/SEAT INNER - REMOVAL) .
  6. Disengage front seat back cover J-straps, to partial detrim seat cover to access inboard and outboard recliner bolts.
  7. Remove inboard and outboard recliner attaching bolts to seat back frame. See Fig 1.
  8. Pull seat back upward from seat assembly to remove seat back. See Fig 2.

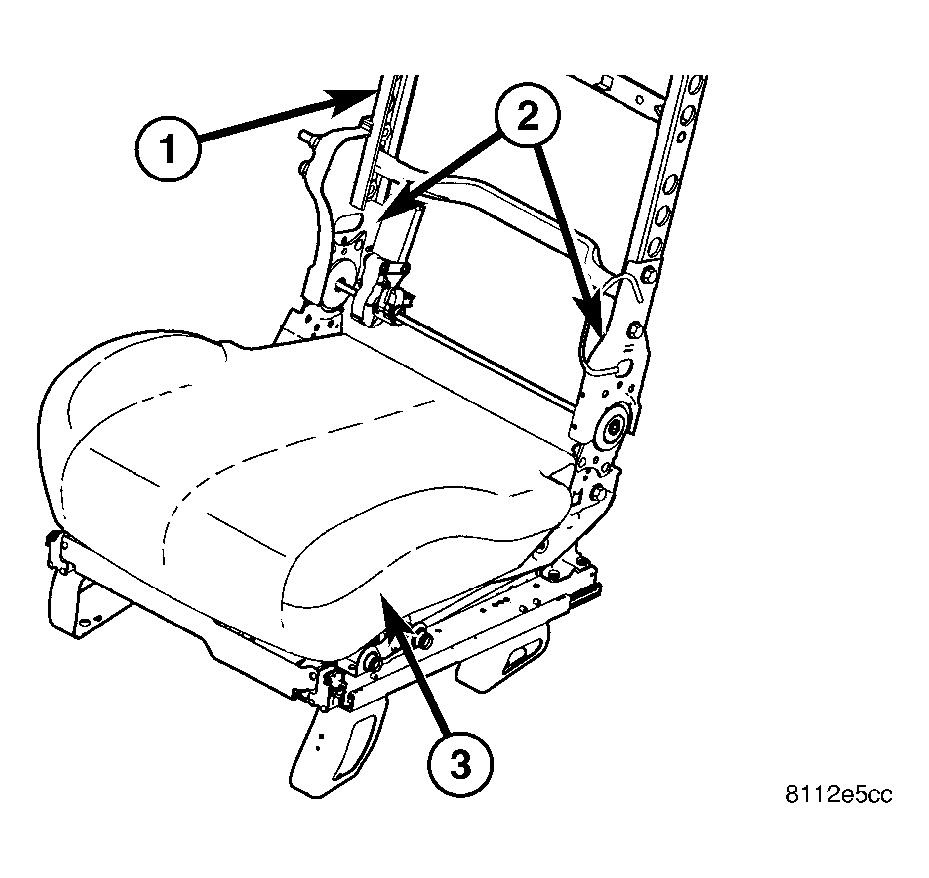

Fig 1: SEAT BACK MOUNTING SCREWS
GC0001123Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT BACK FRAME
2 - RECLINER ASSEMBLY
3 - SEAT CUSHION
Fig 2: FRONT SEAT BACK SIDE COVER
GC0001124Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT SEAT BACK
2 - J-STRAPS
3 - HEATING ELEMENT WIRE HARNESS
