Body - Interior & Exterior: Seats: Headrest: Removal

1. Lift head restraint to top of travel.
2. Depress locking button on side of sleeve at top of seat back. See Fig 1.
3. Pull head restraint from top of seat back.

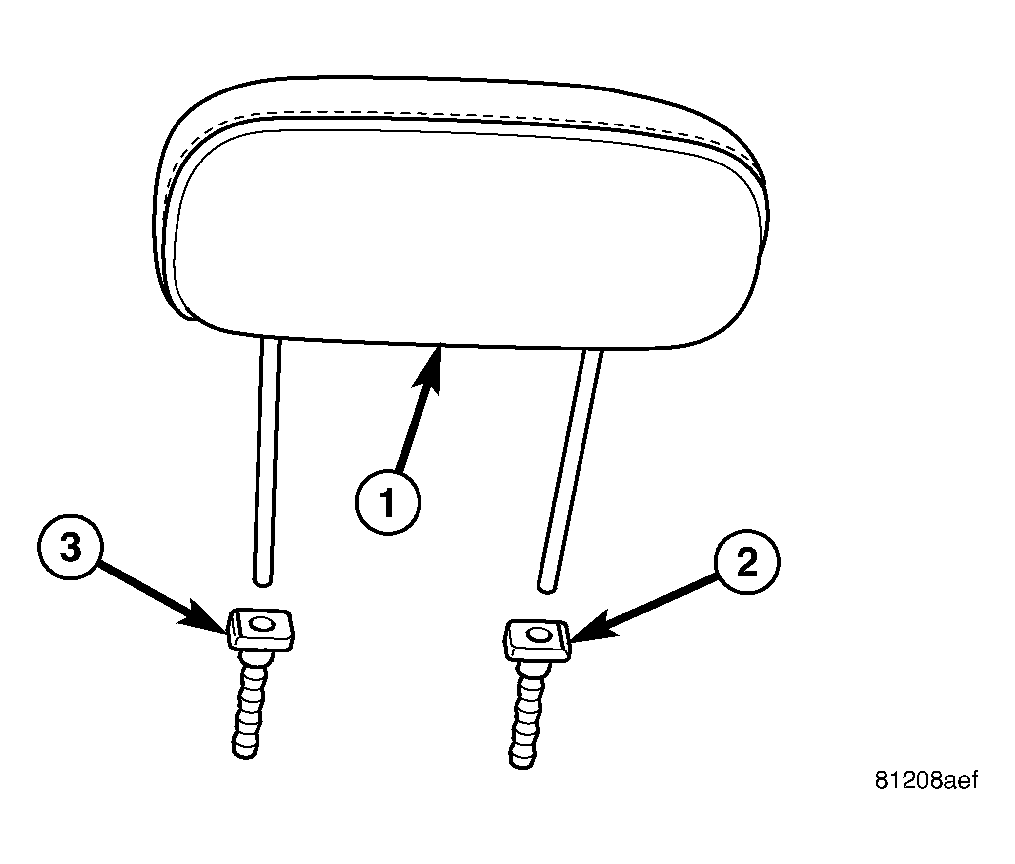

   Fig 1: HEADREST AND SLEEVES

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - HEADREST

   2 - NON-LOCKING SLEEVE

   3 - LOCKING SLEEVE

4. Using trim tool, remove headrest sleeve(s). See Fig 2.

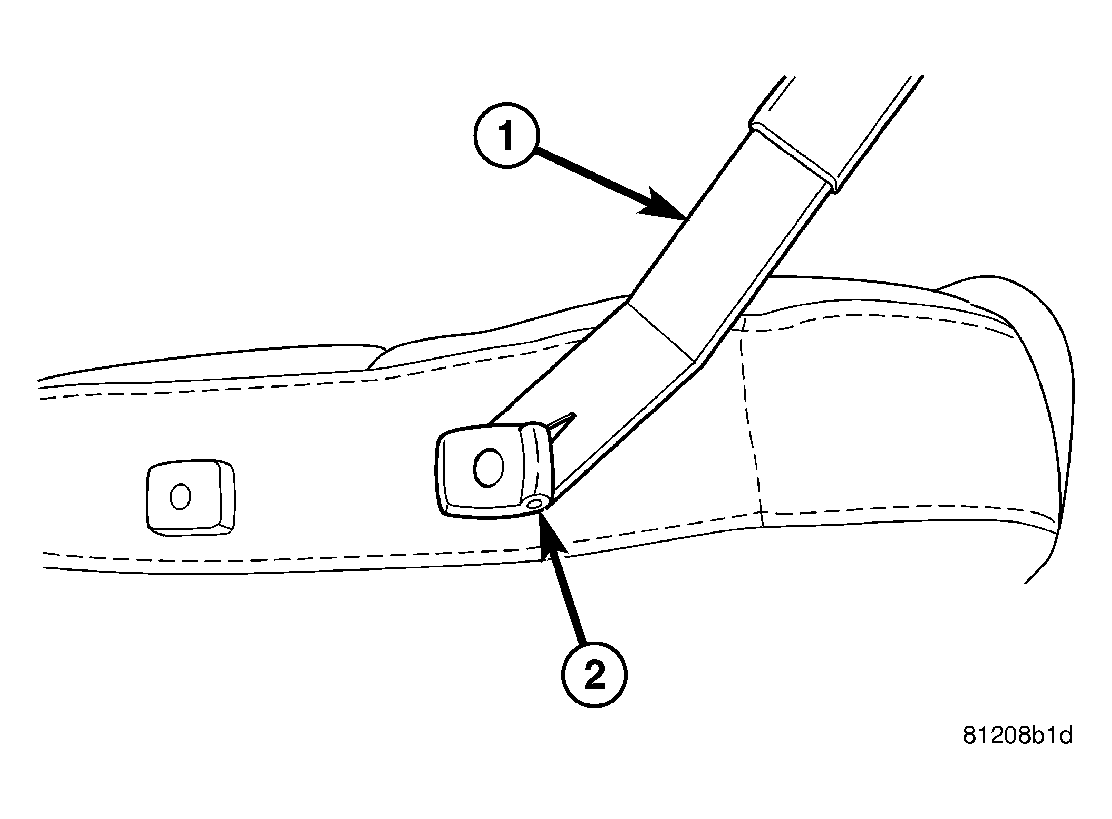

Fig 2: REMOVING HEADREST SLEEVE

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRIM TOOL

2 - HEADREST SLEEVE
