Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct - Left Side (1) - Remove - Floor Front Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft (1) - Remove - Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Accelerator Pedal Assembly (1) @ Vehicle - Remove - Accelerator Pedal Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Body Wiring Harness Retainer (1) @ Vehicle - Unclip [ 5x ]
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Brake Pedal Position Sensor (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

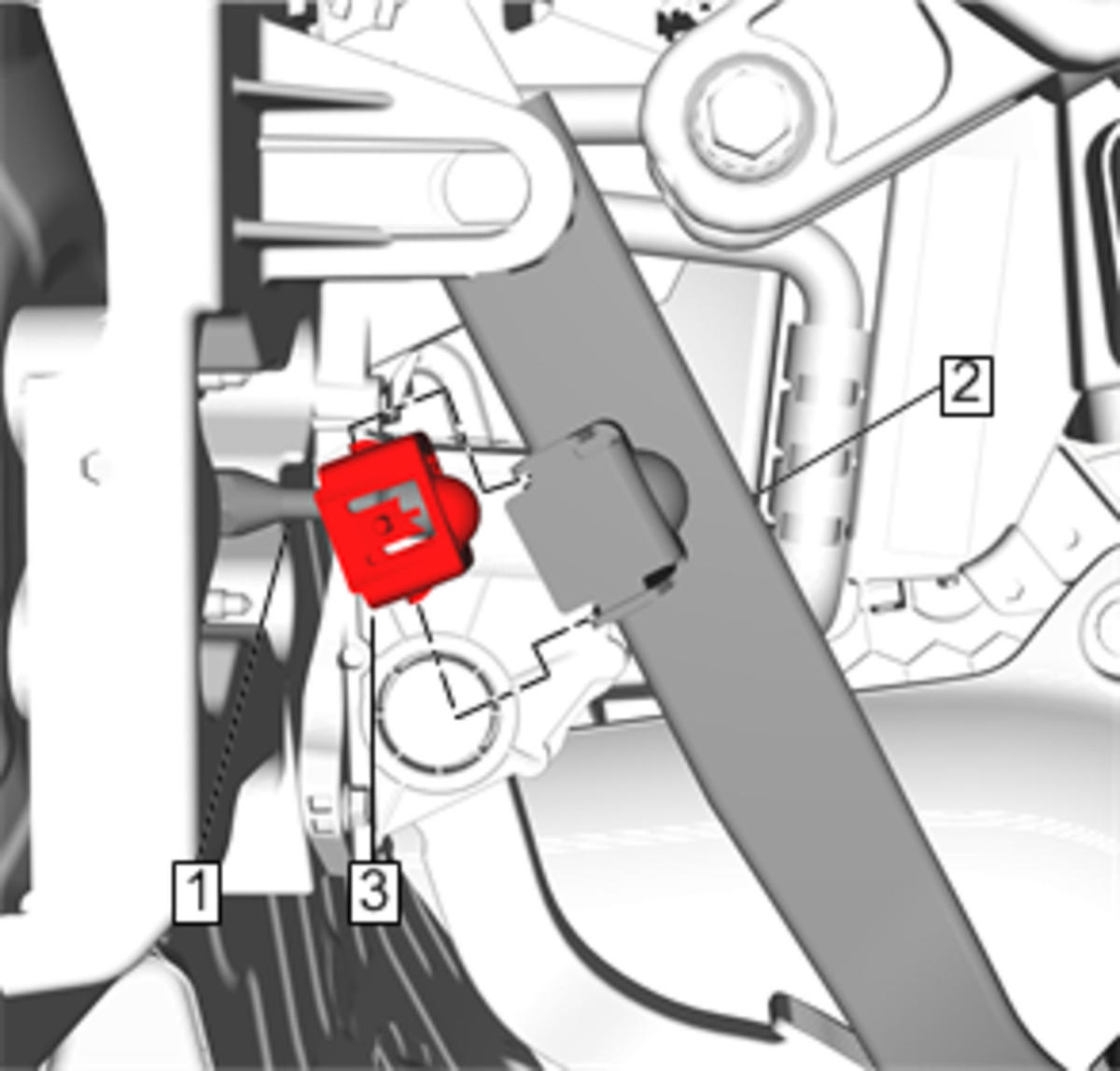

Brake Pedal Pushrod (1) @ Brake Pedal (2) - Disconnect

Press the 2 tabs of the click fit connector (3) together and pull the brake pedal a bit to facilitate the removal.
Click Fit Connector (3) @ Brake Pedal Pushrod (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Nut (1) - Remove [ 6x ]
Brake and Accelerator Pedal Assembly (2) @ Vehicle - Remove
Brake Pedal Position Sensor - Remove - Brake Pedal Position Sensor Replacement
