Brake Pedal Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

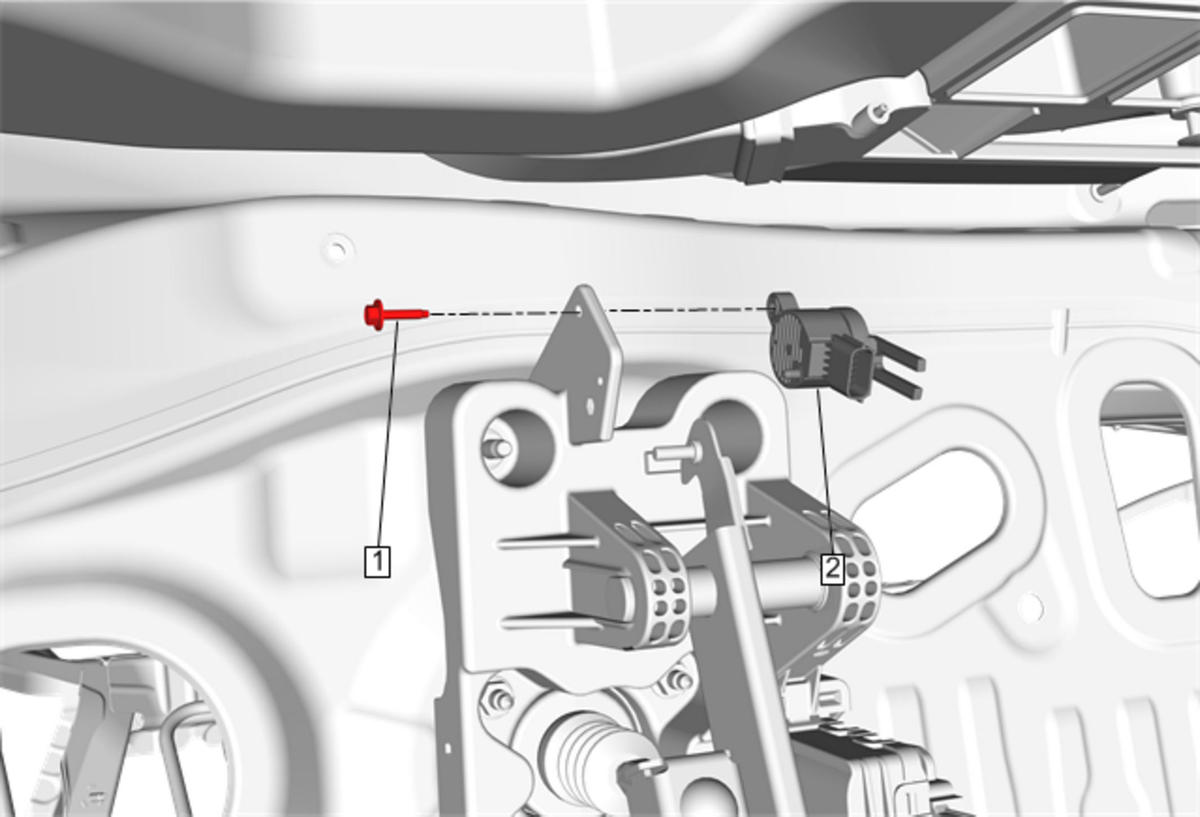

Callout	Component Name
Preliminary Procedure Steering Column Replacement
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb/in)
3	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration

Callout

Component Name

Brake Pedal Position Sensor Bolt

CAUTION:

Tighten
2.5 N.m (22 lb/in)

Brake Pedal Position Sensor

Procedure

Disconnect the electrical connector.
Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
