Floor Front Air Outlet Duct Replacement - Left Side

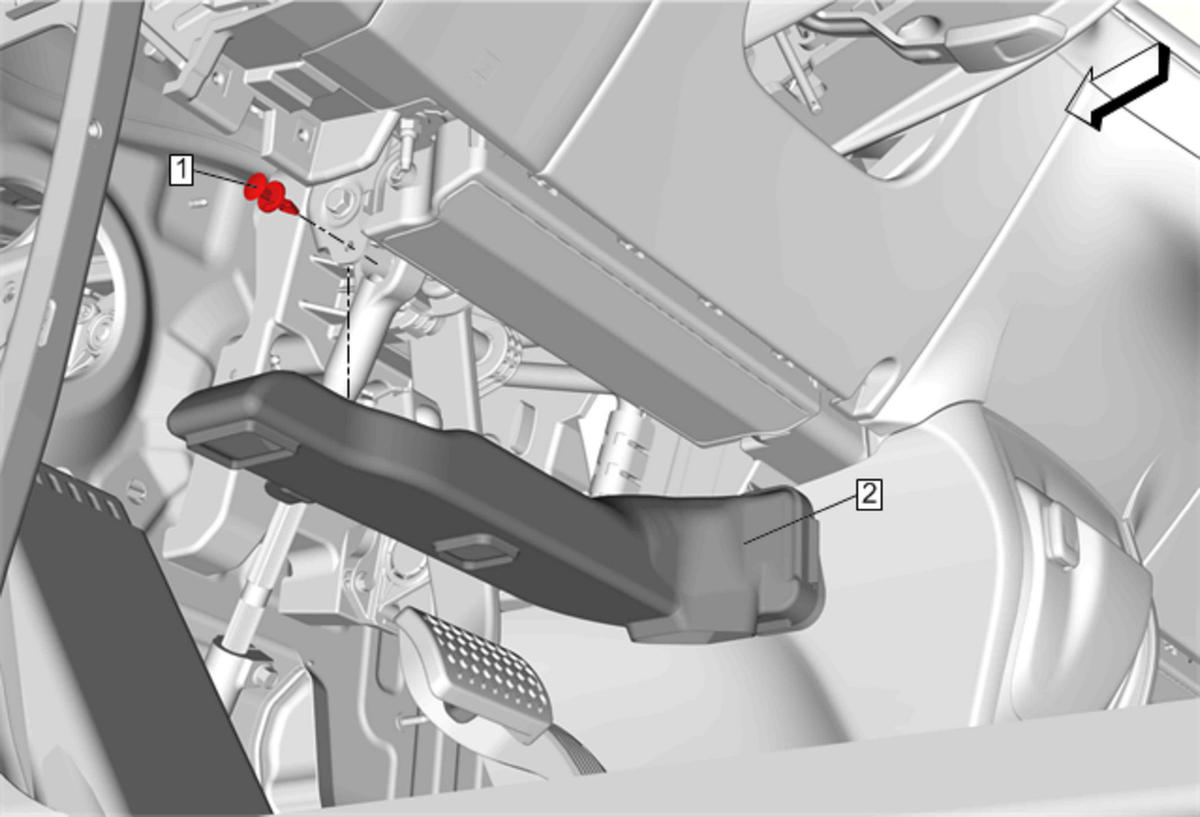

GM4533268Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Floor Front Air Outlet Duct Retainer
CAUTION:

Fastener Caution
2 Floor Front Air Outlet Duct - Left Side
