Accelerator Pedal Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

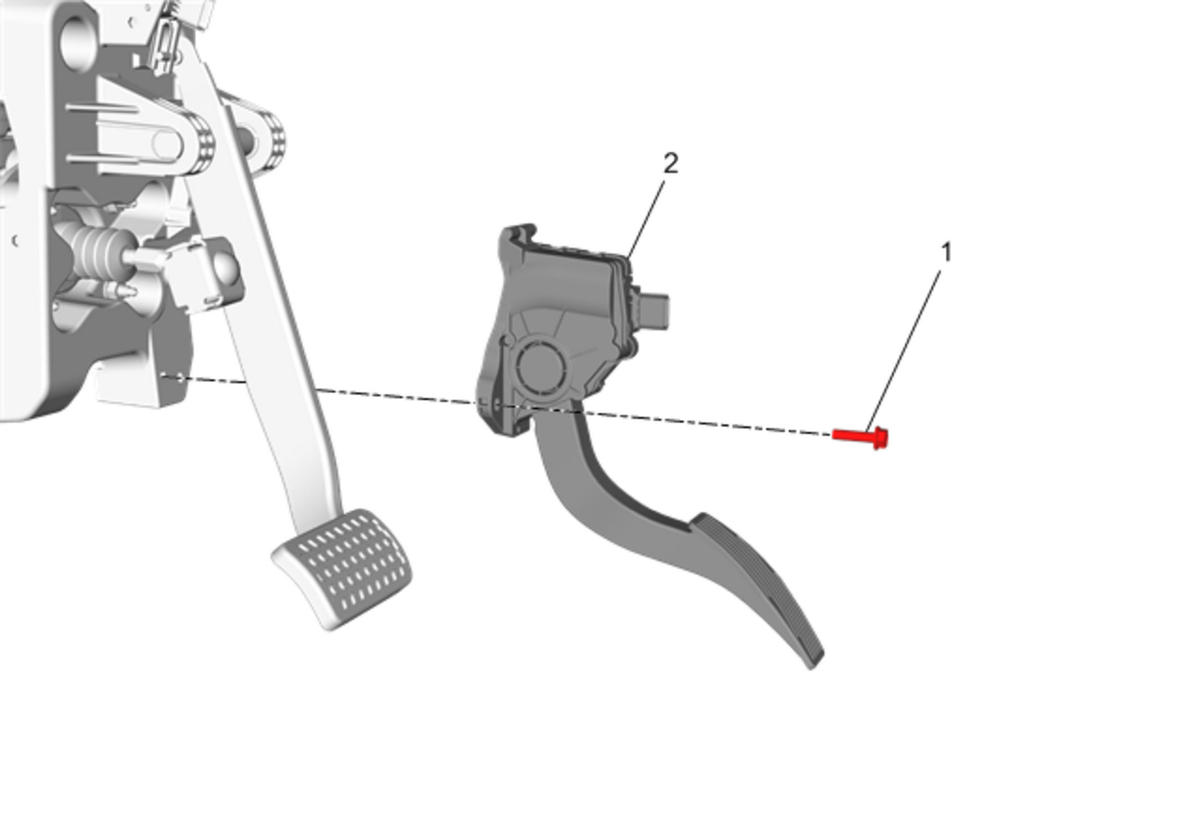

Callout	Component Name
1	Accelerator Pedal Pad Bolt CAUTION: Refer to Fastener Caution . Tighten  7 N.m (62 lb/in)
2	Accelerator Pedal Assembly Procedure  Disconnect the electrical connector.
