Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the engine oil. Engine Oil and Oil Filter Replacement
  2. GM5158485Courtesy of GENERAL MOTORS COMPANY

    Engine Front Cover (1) - Remove - Engine Front Cover Replacement

  3. GM3826003Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Flow Control Valve Heat Shield (3) - Remove - Oil Pump Flow Control Valve Heat Shield Replacement

  4. GM4354505Courtesy of GENERAL MOTORS COMPANY
  5. Catalytic Converter Brace (2) - Remove - Catalytic Converter Brace Bracket Replacement (Upper, LCV) , or Catalytic Converter Brace Bracket Replacement (Lower, LCV)
  6. GM4354520Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Bolt (1) - Remove

  7. GM4354215Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

  8. Wiring Harness Retainer @ Oil Pan (2) - Remove
  9. GM4354181Courtesy of GENERAL MOTORS COMPANY

    Transmission Bolt (1) - Remove

  10. GM5411885Courtesy of GENERAL MOTORS COMPANY

    Remove the lower front wheel drive intermediate shaft bracket bolt (1) from the oil pan. Front Wheel Drive Shaft Replacement - Right Side (LCV with FWD)

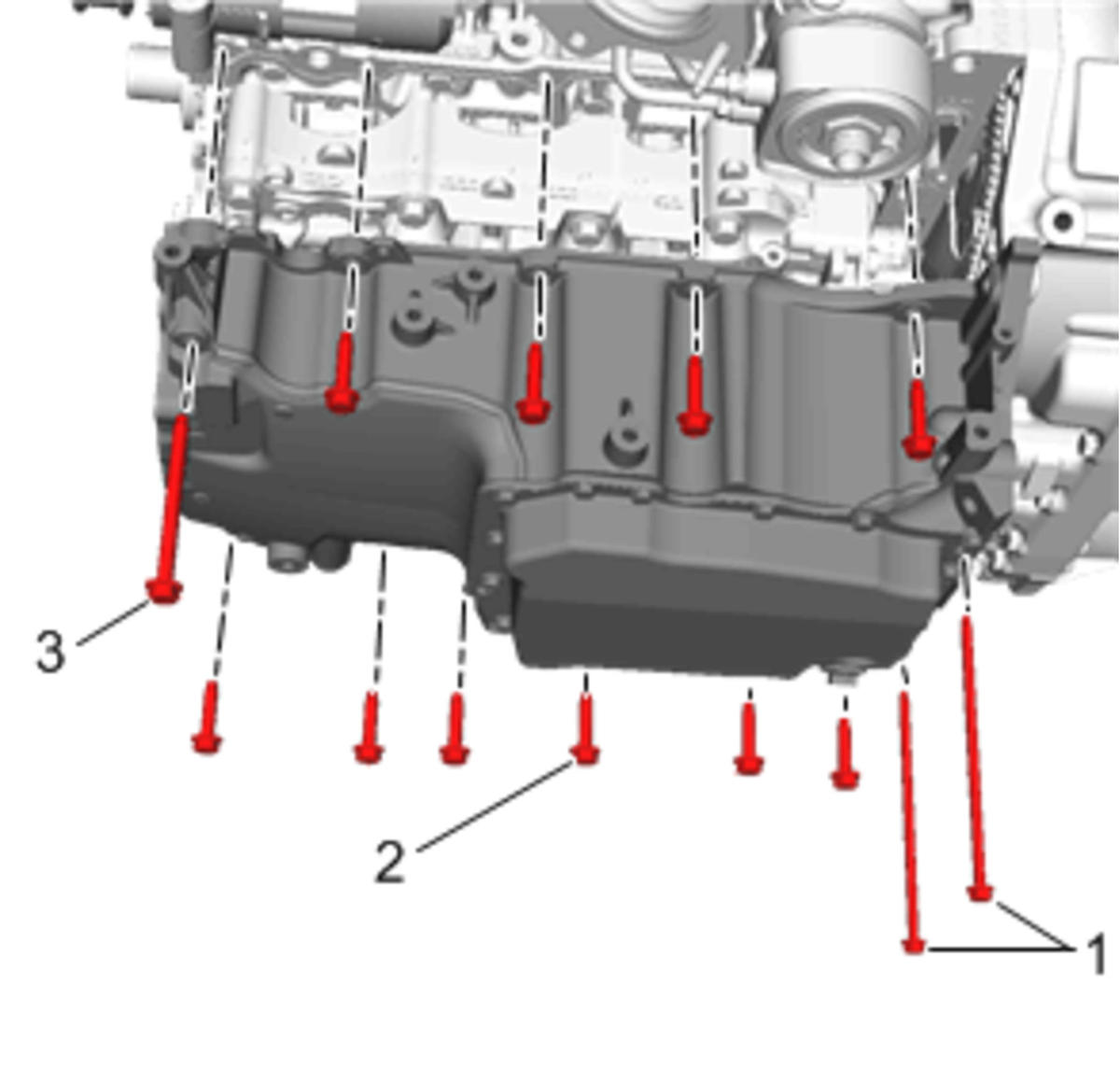

  11. GM4244610Courtesy of GENERAL MOTORS COMPANY

    Oil Pan Bolt (1) - Remove [2x]

  12. Oil Pan Bolt (2) - Remove [10x]
  13. Oil Pan Bolt (3) - Remove
  14. Oil Pan - Remove
  15. Oil Pan - Clean and inspect - Oil Pan Cleaning and Inspection
  16. Clean the engine block sealing surface. Engine Block Cleaning and Inspection
