Oil Pump Flow Control Valve Heat Shield Replacement
WARNING: This page is about a different variant/trim than selected.

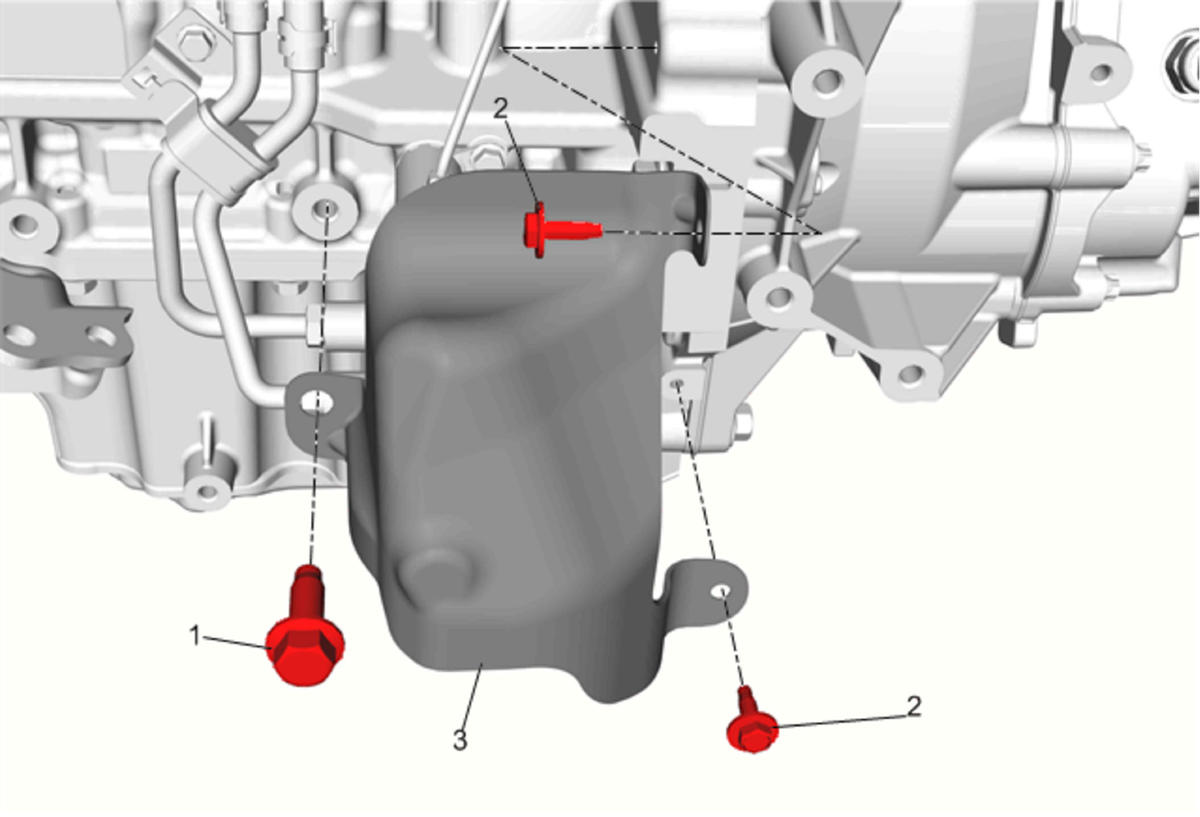

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Oil Pump Flow Control Valve Heat Shield Fastener
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Pump and Component Oil Heat Shield Fastener [2x] Tighten 9 N.m (80 lb in) |
| 3 | Oil Pump Flow Control Valve Heat Shield |
