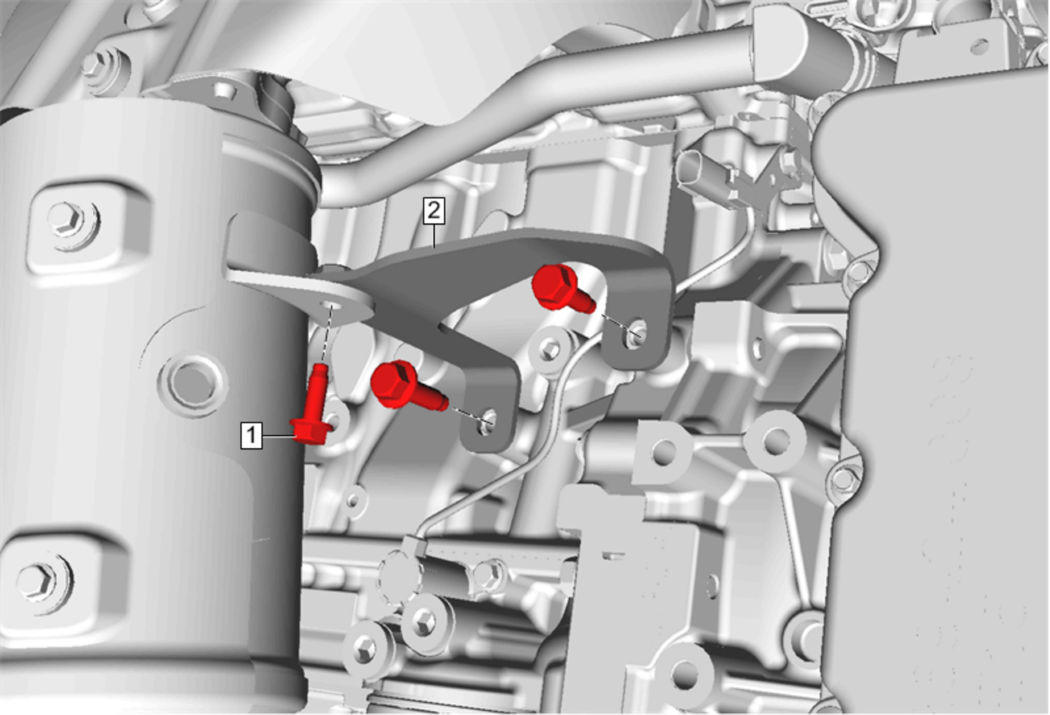

Catalytic Converter Brace Bracket Replacement (Upper, LCV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Catalytic Converter Brace Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Catalytic Converter Brace Bracket
